CATV UPC APC Optical Fiber Cable MTP MPO Fiber Optic Pigtail 8 12 Cores

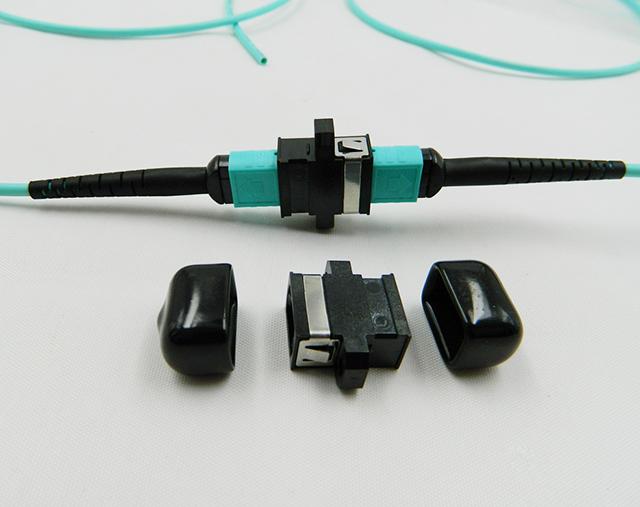

High Speed 8 & 12 Cores MTP MPO Fiber Optic Connector Fiber Optic Pigtail
MPO Fiber Optic Pigtail Description:
MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.
MPO Fiber Optic Pigtail Specification:
|
PERFORMANCE INDEX
|
|||
|
MPO CONNECTOR
|
|||
|
Fiber type
|
SM
|
MM
|
|
|
UPC
|
APC
|
PC
|
|
|
Insertion Loss (IL)Low(dB)
|
≤0.35
|
≤0.35
|
|
|
Insertion Loss (IL)Max(dB)
|
≤0.75
|
≤0.6
|
|
|
Return Loss (RL)(dB)
|
≥50
|
≥60
|
≥20
|
|
Endurance (500 remates)(dB)
|
IL<0.3
|
IL<0.2
|
|
|
Operating Temperature(℃)
|
-10 ~ +60
|
||
|
Storage Temperature(℃)
|
-40 ~ +85
|
||
|
Maximum tensile strengthe(N)
|
100
|
||
MPO Fiber Optic Pigtail Features:
1. High repeatability & credibility
2. Competitive price
3. Fast delivery time
4. Low insertion loss
MPO Fiber Optic Pigtail Applications:
1, Optical fiber communications systems;
2, Optical fiber access network;
3, Optical fiber CATV.
4, Optical fiber data communications;
