Aluminium / Glavanized Corrugated Roof Sheet Machine
Basic Info
| Model No.: KYT | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO | Condition: New |
| Customized: Customized | Usage: Roof, Wall, Floor |
| Transmission Method: Hydraulic Pressure | Control System: PLC Control |
| After Sale Service: Engineer Available To Service Machine Abroad | Certificate: CE/ISO9001 |
| Transmission: By Chain | Warranty: 18 Month |
| Width Of Material: Accroding To Client's Request | Cutting Device: Hydraulic Cutting |
| Payment: By T/T | Package: With Water Proof Paper |
| Product Name: Trapezoidal Roof Sheet Making Machine | |
Additional Info
| Packaging: Main machine is packed with water proof paper, the computer control box is packed by carton box | Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land,Air |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9001/CE | HS Code: 8455221000 |
| Port: Tianjin Port | |
Product Description
Aluminium / Glavanized Corrugated Roof Sheet Roll Forming Machine
Aluminium / Glavanized Corrugated Roof Sheet Machine is very popular in the world, it play a fairly important role in the steel struction building. This machine can produce very beautiful and durable roof tile, With these roof tile, it can protect your roof of house well.
Main Specification Of Corrugated Tile Roll Forming Machine
| No. | Type | Specification | |
| 1 | Row Material | Type |
Aluminum / Steel / Galvanized Panel |
| Feeding width | According to client's requirement | ||
| Thickness | 0.3-0.7 mm | ||
| 2 | Main body | Roller station | 13 Steps (According to the profile) |
| Diameter of shaft | ￠75mm | ||
| Shaft material | 45# Steel | ||
| Roller material | 45# Steel | ||
| Frame | 350mm H Steel | ||
| Frame thickenss | 18 mm | ||
| Operation | Manual and Automatic | ||
| Working speed | 8-12 m/min | ||
| Size (L*W*H) | About 7600*1550*1510mm | ||
| Weight | About 3.5 Tons | ||
| Cutting type | Hydraulic cutting | ||
| Material of blade | Cr12, HRC60-62°C | ||
| 3 | Power | Motor power | 4 kw |
| Hydraulic power | 4 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | By Chain | ||
Working Flower
5 Tons Decoiler -- Panel Feeding And Guiding Table -- Main Roll Forming Machine -- PLC Control System -- Hydraulic Cutting Device -- Product Receiving Table
Component of Standing Seam Roof Sheet Machine
* 5T Decoiler....................................1 Set
* Feeding Table....................................1 Set
* Main Roll Forming Machine....................................1 Set
* PLC Control System....................................1 Set
* Hydraulic Cutting....................................1 Set
* Discharge Table....................................2 Set

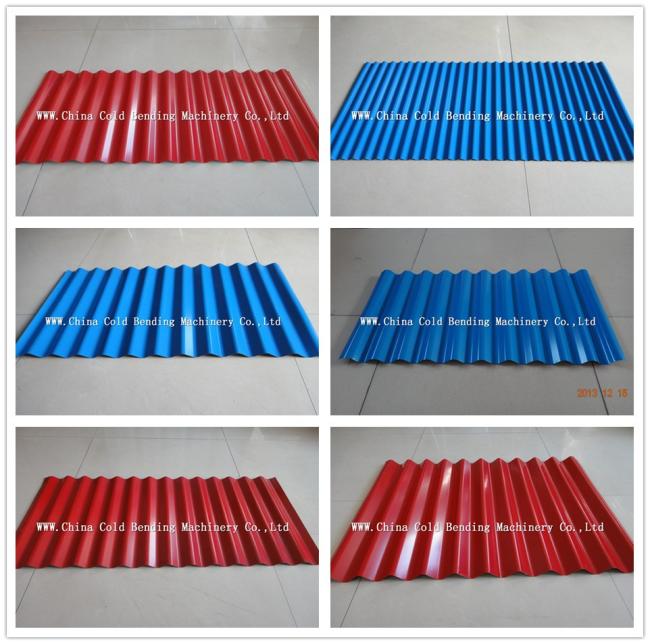

Some Different Corrugated Tile
We can design machine according to customer's requirement or profile drawing.
Product Feature
* Full automatic * Lower cost * High efficiency
* Reliable working * 18 Month Warranty * Easy Operate
* Low energy consumption * Accurate * Passed ISO9001/CE
Application
This type of sheet are widly used in warehouse, workshop, roofing and other part. It has a large market.
Loading And Shipping
* We will packed water proof paper on the machine .
* This corrugated tile roll forming machine need 1*40 GP container to load .
* Fix machine by steel wire rope, to ensure it will not damage when shaking on sea.
* We will take photos and videos for customer when loading to container .
Clients Visit
Welcome all the friends from all over the world to visit us . We can have a meet face to face , what's more , you can know us and our factory better .
Contact Us
If you want to know more about this machine, please contact us freely.
Looking for ideal Aluminium Corrugated Roof Sheet Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Glavanized Corrugated Roof Sheet Machine are quality guaranteed. We are China Origin Factory of Roof Tile Roll Fomer. If you have any question, please feel free to contact us.
