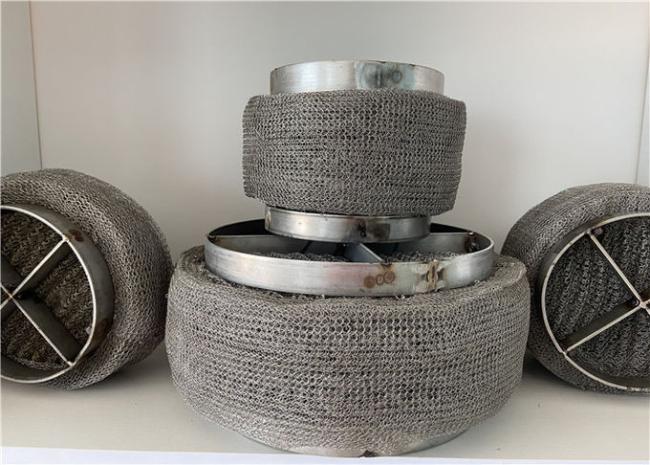

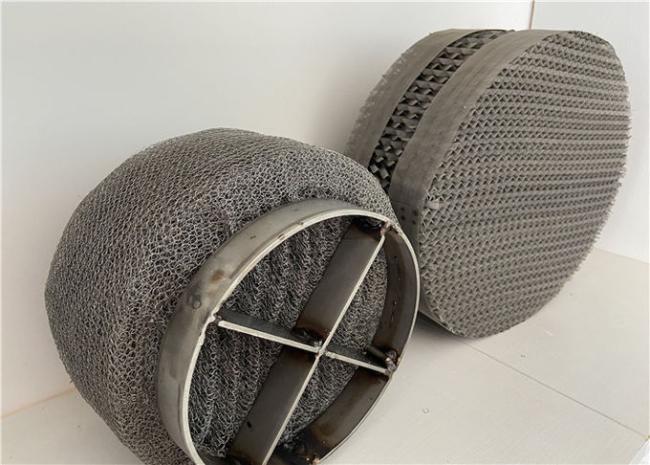

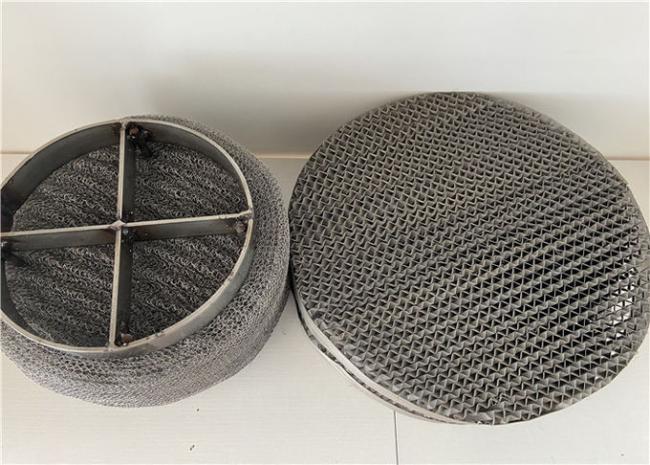

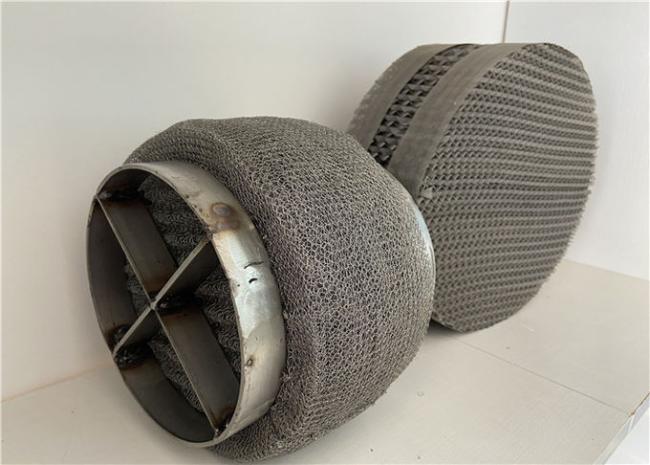

Wire Mesh Demister Pad 304 316 Stainless Steel For Gas Liquid Separation
Product Description:
Wire mesh demister (also known as wire mesh defogger, or bubble trap) is an incredibly efficient device for separating gas from liquid in a variety of industries. It is most often used in chemicals, petroleum, sulfuric acid, pharmaceuticals, light industry, metallurgy, machinery, construction, aviation, maritime transport and environmental protection. It is especially useful as a gas-liquid separation device for ethylene, synthetic ammonia, chemical fiber, and similar imported production equipment. The wire mesh demister is especially adept at separating droplets with a diameter of between 3 and 5 μm.
Specifications:
(1) standard type
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3) |
Surface Area α (m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 150 | Flat Wire | Round Wire | 0.981 |
| 0.1*0.4 | 0.23 | 475 | 320 | |||
(2) High Penetration
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3) |
Surface Area α(m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 98 | Flat Wire | Round Wire | 0.9875 |
| 0.1*0.4 | 0.23 | 313 | 217 | |||
(3) High Efficiency
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3) |
Surface Area α(m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 182 | Flat Wire | Round Wire | 0.977 |
| 0.1*0.28 | 0.19 | 626 | 484 | |||
Features:
This product has a high removal efficiency and a negligible pressure drop, with less than 25mm of water gauge.
No maintenance or service is needed and there are no corrosion, temperature or shape limitations either. It is also easily installed in existing vessels, with no limitation on size or shape.
Moreover, its features include neat and precise filtering precision, thermal and shock resistance, high compressive strength, corrosion and rust resistance, and wear-resistance.
Technical Parameters:
| Product Name | Demister Pad For Liquid And Gas Seperation, SS Demister Pad, Wire Mesh Demister Pad |
|---|---|
| Place of Origin | Hebei Province,China |
| Type | Filter |
| Price | Negotiable |
| Width | Customized |
| Thickness | Customized |
| Keyword | Stainless Steel Wire Mesh Demister |
| Brand Name | Yuanhai |
| Length | Customized |
| Filter Rating | 99.9% |
Applications:
]The technology of distillation, absorption, evaporation and filtration is widely used in many different industries, such as petroleum, chemistry, metallurgy, machine, pharmaceuticals, automobile and environmental protection.
This technology has many benefits, such as eliminating entrainment and foam from gas and liquid.
Support and Services:
We provide comprehensive technical support and service for our Wire Mesh Demister Pad products. Our team of experts can help you select the right product that meets your needs. We can also provide installation guidance, troubleshooting, and maintenance advice.
Our customer service representatives are available to answer any questions you may have about our products. We strive to make the process of selecting and purchasing our products as easy and hassle-free as possible.
We offer a variety of warranty options for our Wire Mesh Demister Pad products, including limited lifetime warranties. We also provide repair and replacement services for defective items.
If you ever have any questions or concerns about our Wire Mesh Demister Pad products, please don't hesitate to contact us. We are always here to help.
