Metal Random Tower Packing For Gas Scrubbing SS316 50*50*0.6mm
Product Description:
- Product Name: Metal Tower Packing
- Diameter: 25~90mm
- Materials: CS, SS, Copper, Titanium
- Port of Loading: Xingang Port
- Corrosion Resistance: Excellent Corrosion Resistance

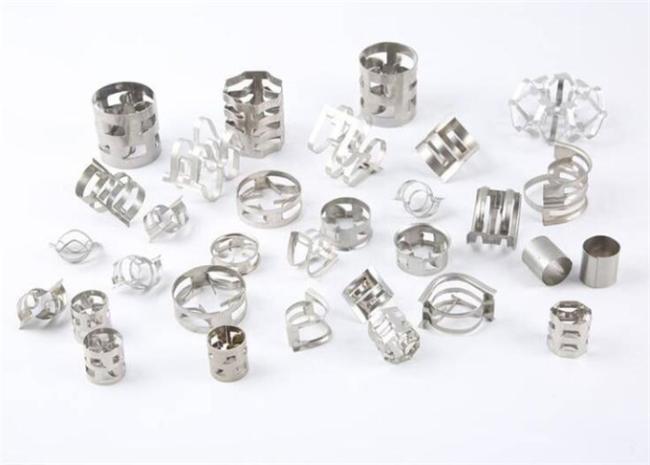

- Available Types:
- Cascade Miniring Packing
- Rasching Ring Packing
- Pall Ring Packing
1.Easily wettable
2.High resistance to fouling 3.High temperature endurable 4.High temperature applications 5.HIGH MECHANICAL STRENGTH
6.High capacity with low pressure drop
7.Mechanically robust, lesser probability of breakage
8.Good liquid/gas distribution and high mass transfer efficiency.
Technical Parameters:
| Product Name | Metal Tower Packing |
|---|---|
| Production Period | 40HQ/15 Days |
| Void Fraction | High Void Fraction |
| Corrosion Resistance | Excellent Corrosion Resistance |
| Key Words | Random Packing |
| Materials | CS, SS, Copper, Titanium |
| Port | Xingang |
| Diameter | 25~90mm |
| Surface Area | High Surface Area |
| Feature | High Capacity, Low Pressure Drop |
| Model |
Size D*H*δ/mm |
No. Per Volume n/m3 |
Specific Area m2/m3 |
Void Volume % |
Drying Packing Factor m-1 |
| Dg16 | 16X16X0.4 | 185000 | 239 | 0.928 | 299 |
| Dg25 | 25X25X0.6 | 51900 | 219 | 0.934 | 269 |
| Dg38 | 38X38X0.8 | 13800 | 129 | 0.945 | 153 |
| Dg50 | 50X50X1.0 | 6500 | 112.3 | 0.949 | 131 |
| Dg76 | 76X76X1.2 | 1830 | 71 | 0.96 | 80 |
Applications:

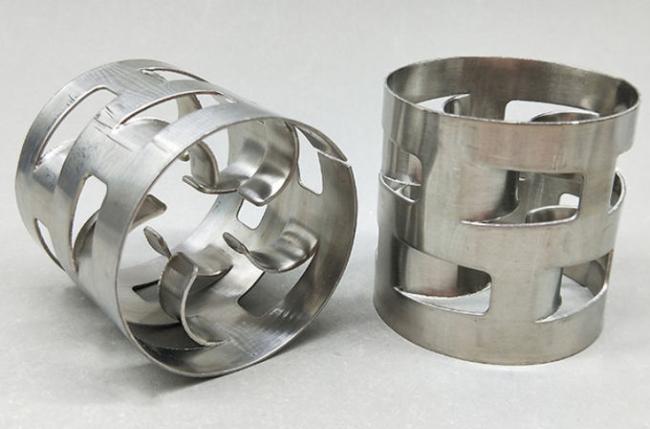

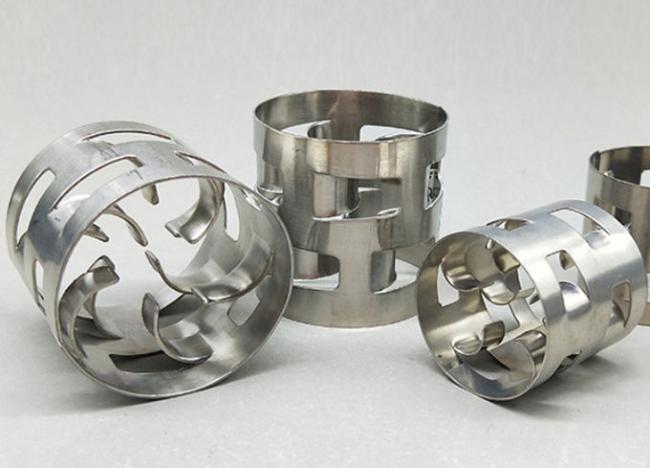

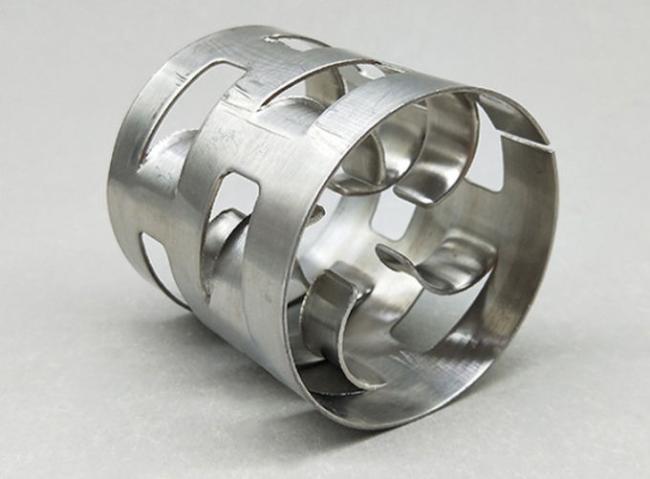

Metal Pall Ring is widely used in the chemical industry for Vacuum Distillation. It is a type of industrial packing that is designed to improve the efficiency of the distillation process. Pall Rings are made of metal and have a unique shape that provides a large surface area for interaction and heat transfer, making them ideal for vacuum distillation.
The Metal Pall Ring is also used for heat transfer through multiple applications such as:
- Wet scrubbers for gas absorption
- Cooling towers for heat transfer
- Mist eliminators for liquid particle removal
- Gas absorption columns
- Gas strippers
- Air washers
When used in wet scrubbers, Metal Pall Rings are effective in removing harmful gases from flue gases by creating a surface for absorption and transfer. In cooling towers, Metal Pall Rings are used to increase the cooling capacity, and in gas absorption columns, they are used to improve the efficiency of absorption by increasing the interaction between the gas and the liquid.
Mist eliminators, also known as demisters, utilize Metal Pall Rings to remove liquid particles from gas streams. They are effective in removing small water droplets and oil from gas pipelines in refineries, petrochemical plants, and other industrial operations.
Overall, the Metal Pall Ring is a versatile and efficient industrial packing that is widely used in various applications in the chemical industry.
