0.5mx0.5mx1m 4mm PVC Coated Gabion Mesh Anti Rust For Riverbank Protection Landscaping

Description

Gabion Mesh is a versatile and durable construction material made from twisted or welded steel wire, forming cages or boxes filled with stones. Widely used in erosion control, retaining walls, and landscaping, it offers high strength, permeability, and flexibility. Common coatings include galvanized, PVC-coated, and Galfan for enhanced corrosion resistance.

Our gabion baskets are crafted from high-tensile steel wire (350-550 N/mm²) with hot-dipped galvanized (Zn 200-300g/m²) or PVC coating for long-term durability. The double-twisted hexagonal mesh prevents unraveling even if wires are cut, making it ideal for harsh environments.

Introduction

1. Materials: hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).

2. Zinc coating : 225-275g/m2.

3. Tensile strength between 380N/mm2 -- 500N/mm2.

4. Elongation≥ 12%.

5.Wire Diameter:2.4-3.5mm

6.Mesh Size: 50x70mm, 50x100mm, 80x100mm or according to customers’ requirements.

7.Box Size:0.5x0.5x1m, 1x1x1m, 1x1x2m, 1x1x3m, 1x1x4m, 2x1x0.5m, 4x1x0.5m.

Specification

1. Wire Diameter

2. Mesh Size

Size(mm)
60x80
80x100
100x120
110x150
220x240

Features&Advantages

1. Superior Strength

   • Withstands heavy loads (up to 50 kN/m²) and erosion forces.

2. Long Lifespan

   • 50+ years service life with Galfan/PVC coatings, even in saltwater.

3. Cost-Effective

   • Lower installation/maintenance costs vs. concrete; fills with local rocks.

4. Flexibility

   • Adapts to ground movement without cracking (ideal for seismic zones).

5. Quick Installation

   • No heavy machinery needed; assembles with lacing wire or clips.

6. Aesthetic Versatility

   • Natural stone fill blends into landscapes; PVC-coated options in colors.

7. Environmental Benefits

   • Promotes vegetation growth; 100% recyclable.

8. Wide Applications

   • From civil engineering (bridge abutments) to landscaping (garden walls).

Application

Gabion Wire mesh can use in civil engineering, road building, and military applications.
The mesh is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate the assembly and installation.

a. Control and guide of water or flood

b. Flood bank or guiding bank

c. Preventing of rock breaking

d. Water and soil protection

e. Bridge protection

f. Strengthening structure of soil

g. Protection engineering of seaside area

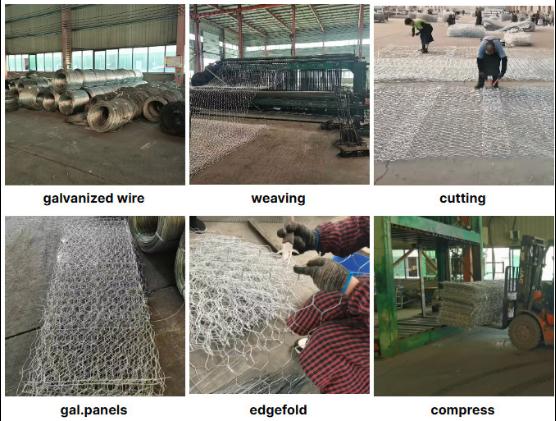

Product Show

Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.
