Metal Perforated Corrugated Stainless Steel Packing Separation Iso Certification
Knitted Metal Tower Packing Metal Perforated Corrugated Packing For Separation

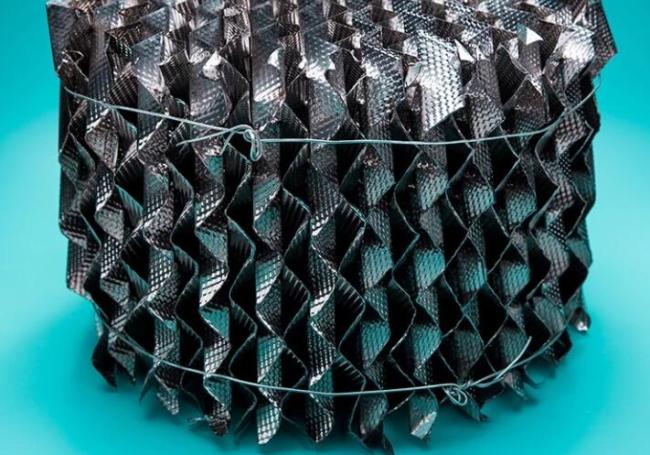

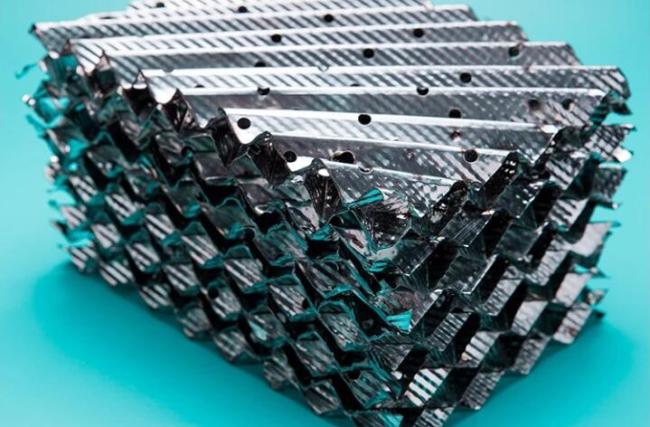

Metal perforated corrugated packing properties:
The metal perforated plate corrugated packing is manufactured by a perforated plate with rills on the surface thereof while keeping the structural characteristics of the metal screen corrugated packing. The uniformity of liquid and wetting property of the packing are increased and the mass transfer efficency is raised
Metal perforated corrugated packing Characteristics:
a. Large specific surface, high void ratio and light weight.
b. Small gas path obliquity regular, low pressure drop.
c. Good radial diffusion, sufficient gas-liquid contact.
Product Detail
| Product name: | Metal Orifice Corrugated Packing | Brand Name: | TIANMA |
| Size: | 450Y,650Y | Place of Origin: | Pingxiang,Jiangxi, China (Mainland) |
| Dimensions: | h/mm:4.5 -6.5mm ;t/mm :0.1mm | Material: | SS304,SS316,SS316L,210,410 |
| Bulk Density: | 110-165kg/m3 | Usage: | Absorption/Scrubbing/Stripping/Tower Packing |
| Surface area: | 454-651m2/m3 | Certificate: | GB/T19001-2016 ISO9001-2015 |
| Pressure drop: | 1.52*10-4 Mpa/m | Packing: | Jumbo bag/Carton box/wooden pallet |
| Liquid load: | 0.2-.00M3/M2.H | Warranty: | Offer lifetime consultation on |
| Purity: | 0.9999 | Sample: | Free sample |
| Standard: | HG/T 4374-2012 | Mini Order: | 2 Cubic Meter |
| void fraction: | >97.6 % | Service: | OEM Manufacturing |
| Appearance: | Rectifying column | Terms of delivery: | EXW, FOB, CFR, CIF |
Product Parameters
|
Item
|
Surface Aream2/m³
|
Free Volume
% |
P
Pa/m |
Theo. plate
pc/plate |
F factor
m/s(kg/m³)0.5 |
|
SB-125Y
|
125
|
98
|
2x10-4
|
1-1.2
|
3
|
|
SB-250Y
|
250
|
97
|
2x10-4
|
2-2.5
|
2.6
|
|
SB-350Y
|
350
|
94
|
2x10-4
|
3.5-4
|
2
|
|
SB-500Y
|
500
|
92
|
3x10-4
|
4-4.5
|
1.8
|
|
SB-125X
|
125
|
98
|
1.4x10-4
|
0.8-0.9
|
3.5
|
|
SB-250X
|
250
|
97
|
1.8x10-4
|
1.6-2
|
3.5
|
|
SB-350X
|
350
|
94
|
1.3x10-4
|
2.3-2.8
|
2.2
|
|
SB-500X
|
500
|
92
|
1.8x10-4
|
2.8-3.2
|
2
|
Product Feature
1.No wall flow technology,wall flow below 2%.
2.application:exactness separation, air separation, low temperature separation
3.acid&alkali function,long service life
4.Uniform contacting surface area
5.large void space, thin wall,small resistance
6. Large specific surface, high void ratio and light weight.
7. Small gas path obliquity regular, low pressure drop.
8. Good radial diffusion, sufficient gas-liquid contact.
Product Application
1. Atmospheric rectification and vacuum rectification,application fields similar to metal wire gauze packing and special technology such as requiring titanium or aluminum gauze packing.
2. Substituting for random packing and revamping some tray towers in approprite conditions.
3. Absorption reqiring low resisitance and distillation with heat pump.
Production Show
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
