Anti Skid Galvanized Steel Walkway Grating Catwalk Metal Grating 30*100mm Drain Cover

Galvanized Steel Walkway Grating Catwalk Steel Grating 30*100mm Drain Cover

Steel Walkway Grating Description

Steel grating is flat steel bar according to a certain distance and cross arranged and welded into the middle of a square lattice with an iron and steel products ,steel grating generally use carbon steel production, appearance of hot dip galvanized, can serve to prevent the role of oxidation, can also be made of stainless steel .

Steel Walkway Grating Specification

1) The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 9;the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4,

2) Bearing Bar Pitch (center to center):
12.5 to 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available.

3) Cross Bar Pitch (center to center):
from18.5 to 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.

4) Material:

Low Carbon Steel or Stainless Steel

5) Surface Treatment:
Untreated, Painting or Hot Dipped Galvanizing

Steel Walkway Grating Standard Type

Steel Walkway Grating  Application

1.Flooring

2.Stair treads

3.Sun shades

4.Drain covers

5.Security screens

6.Manhole covers

7.Mezzanine flooring

8.Earth mats

9.Shelving

10.Stanchions (hand rails)

Steel Walkway Grating advantage

Light weight,great load-bearing capacity,non-slip and e,easy installation,material-economic,sturdy and durable,

ventilated,easy to clean and attractive appearance.

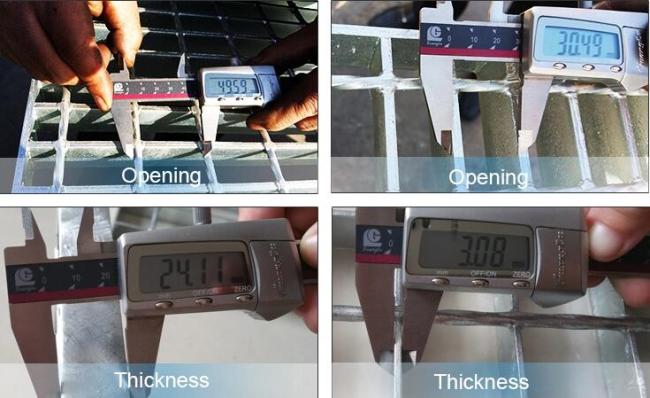

Quality Control
