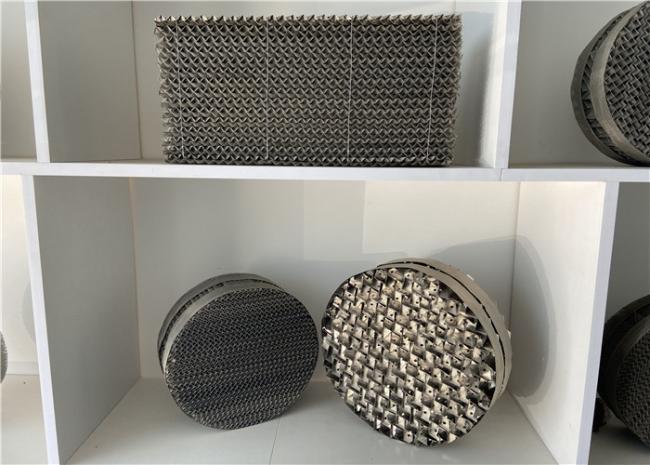

Metal Structured Packing Features

Metal Strucutred Packing is the most widely used high efficient filter in the world at present.

Its main advantages are:

• High number of theoretical plates, large flux and low pressure drop;
• Good performance with low working load, increased number of theoretical plates with the decrease of gas load, and there is almost no bottom limit of work load;
• Large operation elasticity;
• No obvious amplification effect;
• Fulfilling the requirements of precision, large and high vacuum distillation units, providing favorable conditions for distillation separation system, heat sensitive material and high purity products.

Metal Structured Packing Applications

Fine Chemical, Flavours, Isomers Separation. The separation of thermally sensitive materials, Pilot and laboratory columns. Reform existing columns for increased Performance and system of ethylbenzene/benzene second, hexamethylene mellow, oneself lactam, absorb or regeneration tower.

Metal perforated plate corrugated packing is widely used in unit operations like rectification, absorption and extraction.

According to packing types, the applicable minimal tower diameter is 80-200 mm while maximal tower diameter reaches 13 m, liquid spray density ranges from 0.2 to 200 m3/(m2•h) and pressure ranges from vacuum to high pressure. For these reasons, it is a type of all-purpose efficient structured packing suitable for chemical industry, chemical fertilizer industry, oil refining, petrochemical industry and natural gas industry.
