Hot Dipped Galvanized Gabion Stone Cage For Retaining Wall
Hot Dipped Galvanized Gabion Stone Cage For Retaining Wall / Gabion Basket
Galvanized Gabion Box Introduction
Gabion box also named gabion basket , heavy hexagonal mesh ,rock filled gabion cage,retaining wall for protection etc,made of galvanized wire,PVC coated wire.
1.material:low carbon iron wireQ195
2.wire gauge:2.0mm--5.0mm
3.hole size:60*80,80*100,100*120,120*150
4.mesh size:2*1*1m,3*1*1m,2*1*0.5m,3*1*0.3m or as customer requirement
5.surface treatment:electro galvanized,hot dipped galvanized
6.application:rock fall protection,gabion wall,gabion matresses,roadway protection.
Galvanized Gabion Box Surface Treatment
1.Galvanized steel wire :low carbon steel wire
2.Zinc-5% aluminum-mixed metal alloy steel wire ,a new-type material
3.Galvanized steel wire ,PVC or PE coating
Galvanized Gabion Box Specification
| Gabion Baskets Specifications | |||
| Mesh Opening (mm) |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter(PVC Coated) Inner/Outside(mm) |
Strands |
| 60*80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80*100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80*120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100*120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100*150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120*150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
| Size | Notes | Tolerance | |||
| Length(m) | Width(m) | Height(m) | Cell Number | Volume(m³) | ±3% |
| 2.00 | 1.00 | 0.30 | 1 | 0.60 | |
| 3.00 | 1.00 | 0.30 | 2 | 0.90 | |
| 4.00 | 1.00 | 0.30 | 3 | 1.20 | ±5% |
| 2.00 | 1.00 | 0.50 | 1 | 1.00 | |
| 3.00 | 1.00 | 0.50 | 2 | 1.50 | |
| 4.00 | 1.00 | 0.50 | 3 | 2.00 | |
| 1.00 | 1.00 | 1.00 | 0 | 1.00 | |
| 1.50 | 1.00 | 1.00 | 0 | 1.50 | |
| 2.00 | 1.00 | 1.00 | 1 | 2.00 | |
| 3.00 | 1.00 | 1.00 | 2 | 3.00 | |
| 4.00 | 1.00 | 1.00 | 3 | 4.00 | |
| Goods Name | Gabion Box |
| Raw material |
Galvanized wire |
| Type | Hexagonal woven type and welded mesh type |
| Specification | See below data sheets |
| Feature |
• Uniform wire coating for extra durability |
| Application |
• Control and guide of water or flood.Flood bank or guiding bank |
| Quality Guarantee | Each batch Goods provided the inspection report. |
| Packing | By bundle with plastic bag, then put in wooden pallet. |
| Customized | Customized size is available |
Galvanized Gabion Box Feature
(1) Construction is simple,
(2) Can withstand a large range of deformation, but still does not collapse.
(3) Silt between the cage stones is conducive to plant production and integrates with the natural environment.
(4) Good permeability, prevent the damage caused by the static fluid, is conducive to the stability of the slope and shore.
(5) Saving transportation costs.Fold transport and assemble on site.
(6) Good flexibility: no structural joints, the overall structure has ductility.
(7) Corrosion resistance: PVC coating is not afraid of erosion.
Galvanized Gabion Box Application
1.Controlling and leading the river and flood.
2. Flood discharge and lead flow.
3. Rock fall defending.
4. Preventing the water and soil lost.
5. Protecting the bridge.
6. Great Perviousness, pliability and anti-corrosion.
7. Resist the scour
8. Holistic capability
9. Easy to Construct
10. Economical and environmental protection

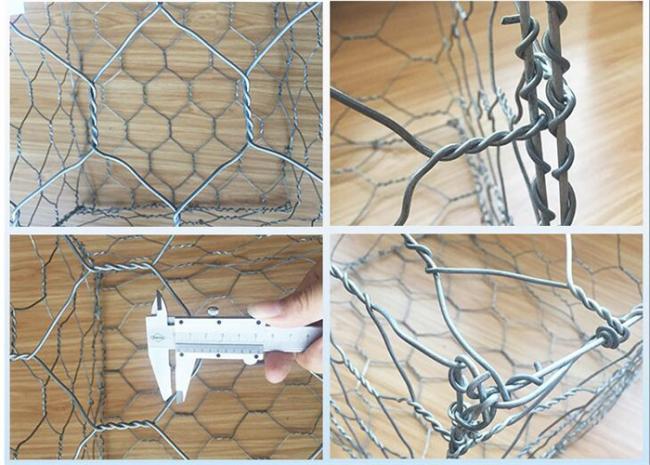

Galvanized Gabion Box Product Show
