1.22*2.44M OEM 0.2mm Decorative Perforated Sheet Metal
Diamond Hole Galvanized Perforated Metal Mesh Plate Thickness 0.8mm
Product Description
Product name:Multihole perforated plate / perforated sheet / perforated metal mesh
Alias: sieve plate, round hole, long hole, flower hole, hexagonal hole, plum hole.
Materials: low carbon plate, stainless steel plate, copper plate, aluminum plate, nickel plate
and all kinds of non-metal plate.
Features: smooth surface, beautiful appearance, durable in use
Surface treatment: hot galvanizing, anodizing, fluorocarbon coating,
powder coating, PVC coating, paint, etc.
Spec: coil1x20m, flat 1x2m, can also be customized according to customer needs.

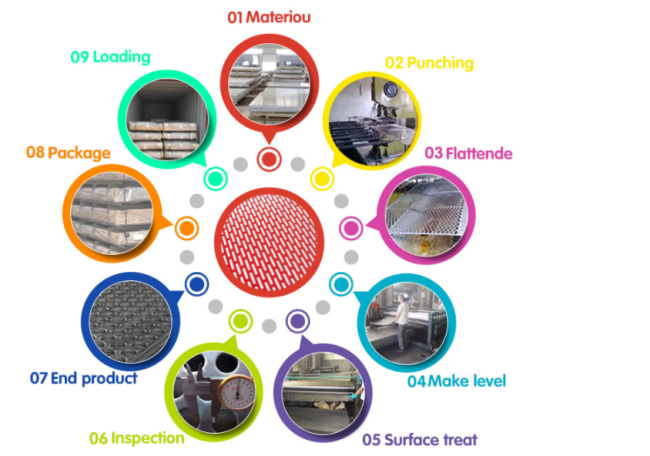

Production process: mould-punching-cutting-edge trimming-leveling-cleaning.
Aperture arrangment: the most popular arrangement is the 60 degree angle pattern,
The 90° pattern is equally popular, and the 45° pattern.
Product Advantages
| Features | 1.can be formed easily |
| 2.can be paint or polished | |
| 3.easy installation | |
| 4.attractive appearance | |
| 5.wide range of thicknesses available | |
| 6.largest selection of hole size patterns and configurations | |
| 7.durable |
Product Specification
| The common sizes of Suicheng Metal Product CO.,Ltd | |||||||
| Material | Thickness of Metal (mm) | HoleDia. (mm) | Pitch(mm) | SheetWidth (m) | Sheet Length (m) | Porosity (%) |
Weight (kg/m2) |
| Rolling plate | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5 | 8 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | ||
Product Application
| Application | 1.Aerospace: nacelles, fuel filters, air filters |
| 2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors | |
| 3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption | |
| 4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills | |
| 5.Hammer mill: screens for sizing and separating | |
| 6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection | |
| 7.Pollution control: filters, separators | |
| 8.Mining: screens | |
| 9.Security: screens, walls, doors, ceilings, guards | |
| 10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates |
Product Packing
1.waterproof paper then PVC shrinked
2.PVC shrinked only
3.black waterproof paper only
4.waterproof paper then metal/wooden pallet
5.plastic film then carton. Also at your request
Production Show
