Bar Grids Walkway / Drain Cover Hdg Welded Steel Grating
Galvanized Pressed Grid Flooring Welded Steel Bar Grids Walkway / Drain Cover

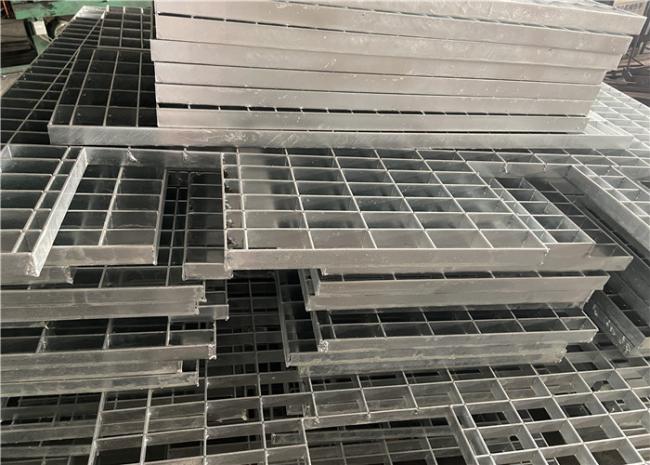

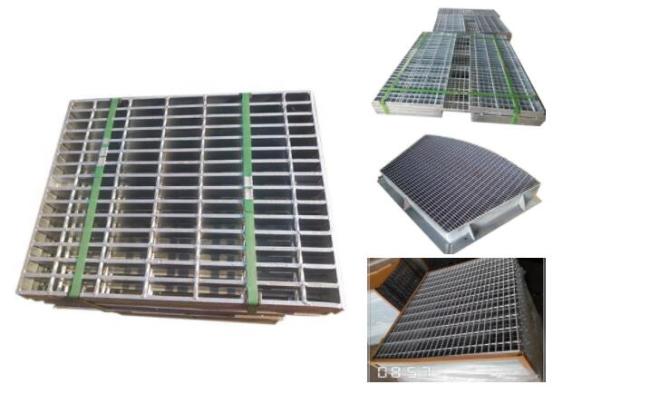

Description of Steel Grating Walkway
Steel grating is flat steel bar according to a certain distance and cross arranged and welded into the middle of a square lattice with an iron and steel products ,stainless steel floor plate generally use carbon steel production, appearance of hot dip galvanized, can serve to prevent the role of oxidation, can also be made of stainless steel .
Materials: mild steel or stainless steel.
Surface treatment: untreated, painting or hot dip galvanizing.
Bearing bar specification:20*3 to 100*6
Bearing bar pitch:12.5,15,25,30,40,60mm etc. also be according to clients requirement and 30,40,60mm are recommended
Cross bar picth:38,50,76,100mm,also be according to clients requiremen and 50,100mm are recommended.
The Maximun length of black panel is 7350mm.
Advantage of Steel Grating Walkway
-No corrosion traps around joints
-High strength to weight ratio
-Allows shaping without loss of strength
-Available plain or serrated
-Allows passage of heat, light, water and ice.
Surgface Treatment of Steel Grating Walkway
Steel grating panel can choose galvanized,
stainless steel grating can choose polishing etc.
Specifications of Steel Grating Walkway
The steel bar size and specification ,please check the following table:
Specification of galvanized steel gratingsteel walkway and floor Steel grid plate and Steel frame lattice in metal building materials |
|
| Type | Welded steel grating, pressure locked, socket welding |
| Material | Low carbon steel, stainless steel, aluminum |
| Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. |
| Bearing bar pitch(center to center) | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.or accord to the client’s request |
| Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement. |
| Flat bar type | Plain, Serrated (tooth-like), |
Application of Steel Grating Walkway
steel bar grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed :
1 Power plant
2 Chemical plant
3 Oil Refinery
4 Steel plant
5 Machinery plant
6 Paper-making factory
7 Cement plant
8 Civil engineering
9 Wastewater treatment
10 Pharmacy industry
11 Food processing
