3.0m Height Anti Climb Prison Fence Hot Dip Galvanized / Pvc Coated 76.2*12.7mm
Hot Dip Galvanized / PVC Coted 358 Security Fencing 76.2*12.7mm For Prison

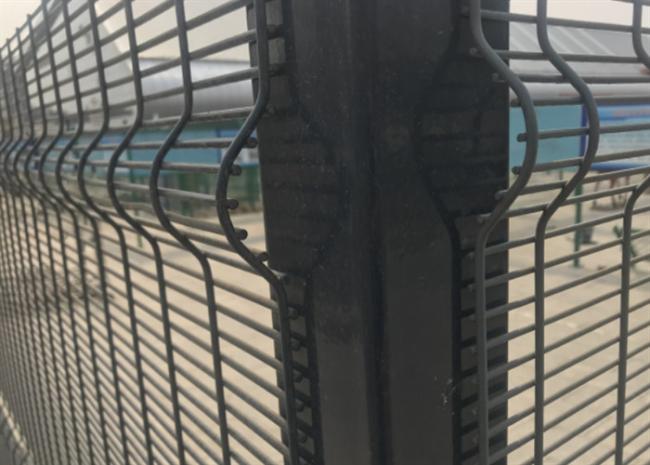

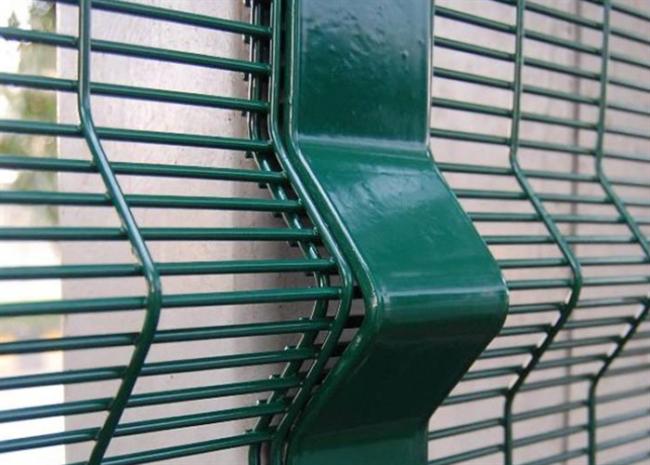

Description of 358 Security Fencing
Anti climb mesh fence is also called 358 fence( 3"×0.5"×8 gauge) also known as"prison mesh" or anti-climb fence, is a special fencing panel. This production offers the best value for performance, durability and appearance,"358"comes from its measurements 3" x 0.5" x 8 gauge which equates to approx.76.2mm x 12.7mm x 4mm in metric.
358 wire mesh fence is a professional structure designed for high security environments, combined with an steel framework,coated with heavy zinc or RAL color powder coating.
Panel size:Height x Length: 2000x2200mm
Wire diameter: 4mm
Mesh Size: 12.7x76.2mm
Surface Treatment: electro galvanized wire welded, then PVC coated
Fence Post: 60x60x2x2500mm
Surface Treatment:galvanized pipe PVC coated
Flat Bar:60x5x2000mm
Surface Treatment: Iron flat bar PVC coated
With Plastic cap and bolts and nuts
Specifications of 358 Security Fencing
| Specification of 358 Security Fencing | |||||
| Mesh Opening | Wire Diameter | Panel Height | Panel Width | Post Type | |
| 12.7x76.2mm (0.5'' x 3'') |
3/3.5/4mm | 1.2-6m | 2.0-3.1m | Square Post(SHS) 60x60x2.0/2.5/3.0mm 80x80x2.0/2.5/3.0mm |
Rectangular Post(RHS) 40x60x2.0/2.5/3.0mm 40x80x2.0/2.5/3.0mm 60x80x2.0/2.5/3.0mm 80x100x2.0/2.5/3.0mm |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating. | |||||
| Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized. | |||||
| Note:The fence can be customized according to your required if above specification is not satisfied with you. | |||||
| 358 fence | 2.1m | 2.4m | 3.0m |
| 358 fence hight | 2134mm | 2438mm | 2997mm |
| 358 fence width | 2515mm | 2515mm | 2515mm |
| 358 fence hole size | 12.7*76.2mm | 12.7*76.2mm | 12.7*76.2mm |
| wire | 4mm | 4mm | 4mm |
| wire | if need other wire diameter can order | ||
| 358 fence posts | 60*60*3mm | 60*60*3mm | 60*60*3mm |
| 358 fence posts length | 2.8m | 3.1m | 4.0m |
| no of fixings | 8 | 9 | 11 |

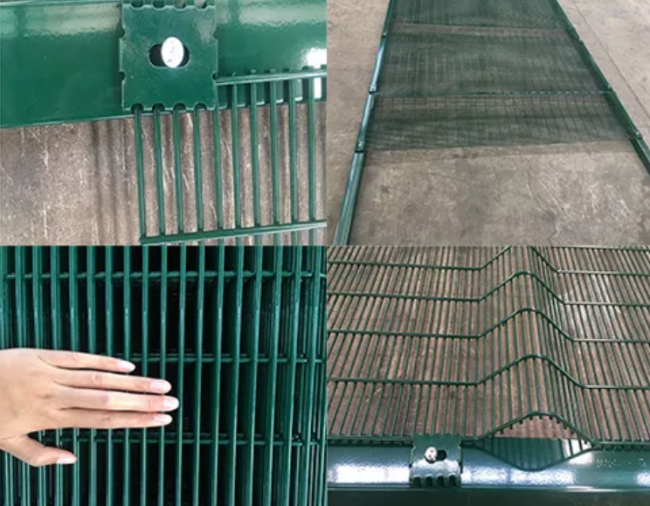

Features of 358 Security Fencing
- Anti-climbing: more small openings, no toe or finger holds.
- Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
- High strength welded at each intersection.
- Good viewing visibility, it is a type of high security clear view fencing.
- Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
- Corrosion resistant with zinc aluminum alloy and PVC powder coating.
- Surface finish after welding, every weld-point are protected well.
- High strength with fully integrated with posts and anti-tamper fixings.
- Fence security toppings are optional.
Surface treatment of 358 Security Fencing
1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)
Application of 358 Security Fencing
Bridge anti-climb guarding & guard ety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
Gas pipelines security fence
High security living area and private field fence.
