Oem 358 Security Fencing Powder Coated Green Color For Railway Station
OEM Powder Coated Green Color 358 Security Fencing For Railway Station
Description of 358 Security Fencing
Anti-Climb Welded Mesh Panel Fence is the definitive mesh fencing system for perimeter protection, which is well-knowm as anti-climb & anti-cut through barrier. As a security fence,using high quality carbon steel wire to weld a fence panel, it can provide privacy in some extent. It also can offer maximum security and anti-corrosion protection.
The mesh size of 358 security fence is 76.2*12.7mm(center to center), the distance of horizontal wire is 12.7mm, and the distance of vertical wire is 76.2mm, it is very popular in US Market and Malaysia Market. 358 Security Fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.
Specifications of 358 Security Fencing
| Specification of 358 Security Fencing | |||||
| Mesh Opening | Wire Diameter | Panel Height | Panel Width | Post Type | |
| 12.7x76.2mm (0.5'' x 3'') |

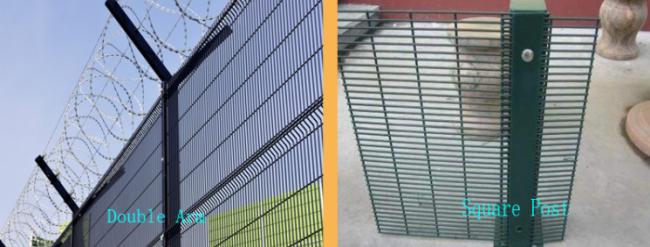

3/3.5/4mm | 1.2-6m | 2.0-3.1m | Square Post(SHS) 60x60x2.0/2.5/3.0mm 80x80x2.0/2.5/3.0mm |
Rectangular Post(RHS) 40x60x2.0/2.5/3.0mm 40x80x2.0/2.5/3.0mm 60x80x2.0/2.5/3.0mm 80x100x2.0/2.5/3.0mm |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating. | |||||
| Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized. | |||||
| Note:The fence can be customized according to your required if above specification is not satisfied with you. | |||||
| 358 fence | 2.1m | 2.4m | 3.0m |
| 358 fence hight | 2134mm | 2438mm | 2997mm |
| 358 fence width | 2515mm | 2515mm | 2515mm |
| 358 fence hole size | 12.7*76.2mm | 12.7*76.2mm | 12.7*76.2mm |
| wire | 4mm | 4mm | 4mm |
| wire | if need other wire diameter can order | ||
| 358 fence posts | 60*60*3mm | 60*60*3mm | 60*60*3mm |
| 358 fence posts length | 2.8m | 3.1m | 4.0m |
| no of fixings | 8 | 9 | 11 |
Features of 358 Security Fencing
- Good viewing visibility, it is a type of high security clear view fencing.
- Welded well at each intersection.
- Intrusion resistant, with extremely strong double vertical wire design.

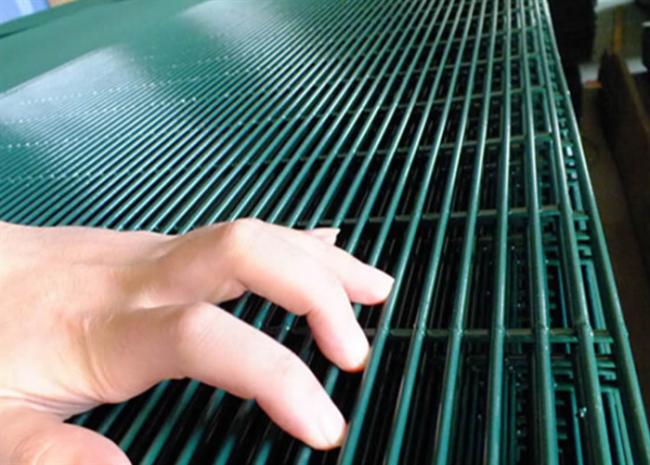

- Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.
- Corrosion resistant with zinc aluminum alloy and PVC powder coating.
- Surface finish after welding, every weld-point are protected well.
- High strength with fully integrated with posts and anti-tamper fixings.
- Fence security toppings are optional.
- Easy for installation and free maintenance.
- 5 year warranty.
Sizes of 358 Security Fencing
The panels are 2515mm wide and heights range from 900 to 5200mm.
Mesh sizes are 76.2 x 12.7mm, and manufactured from 4mm wires.
Weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m²).
Featuring a toe and finger proof mesh aperture, this system combines an anticlimb and anticut fence with excellent through visibility and resistance to vandalism.
Extra length panels can be supplied for burying 300mm below ground to prevent burrowing.
Application of 358 Security Fencing
- Bridge anti-climb guarding & guard ety screening.
- Psychiatric hospital security fencing.
- Prison security fencing.
- Factory machine guards.
- Walkway security fencing.
- Airport security fencing.
- Shipping Port Security fencing.
- Electrical sub-station fencing.
- Gas pipelines security fence.
- High security living area and private field fence.
Packing of 358 Security Fencing
