86 inch High Brightness Indoor Digital Advertising Display 3840x2160 UHD 2000 nits 1850W
Price:
Negotiable
MOQ:
1
Delivery Time:
4~5 weeks
Brand:
Maxbright
Product Description

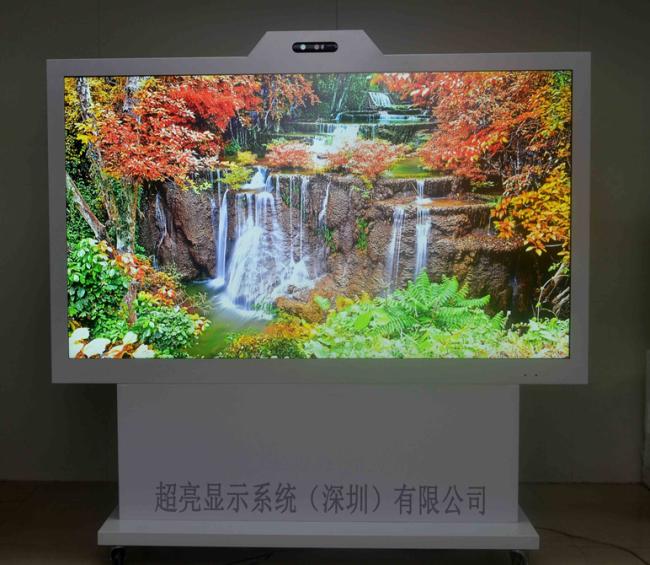

Maxbright 86" High Brightness Store Window Advertising Signage Display M860EDCL
LED Array Backlight Enhanced
Model: M860EDCL
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 1500-2000 nits
3840 x 2160 Max. QWUXGA Resolution
Aspect Ratio: 16:9 in portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Waterproof IP65 and Fashion Design
Media player box or mini PC Built-in (option)
Main Specs of 86” High Bright 4K Monitor
| PANEL TYPE | a-Si active matrix TFT-LCD IPS |
| ACTIVE AREA | 1895.04 x 1065.96 mm |
| NATIVE RESOLUTION | 3840 x 2160 RGB UHD |
| PIXEL PITCH | 0.4935(H) x 0.4935(V) mm |
| COLOR | 16.7M/1.07B 71% [CIE1931] |
| INTERFACE | VGA, HDMI, DP option |
| . VIEWING ANGLE | 89/89/89/89 |
| BRIGHTNESS | 1500-2000 cd/m2, LED Backlight enhanced |
| CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 8000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| DIMMING RANGE | 2000 nits to 300 nits 100% to 15% |
| RESPONSE TIME | 8msec typical |
| REMOTE CONTROL | Support for Full OSD Features |
| MEDIA PLAYER | Media Player (RK3399) or i3/i5 CPU mini-PC |
| (option) | |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 1400W at 1500 nits, 1850W at 2000 nits |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: Intel Core i5-6200U 2.5GHz, 2GB DDR |
| (option) | 500GB HDD, 5 x USB ports, 1 x RJ45, WiFi |
|
DIMENSION
|
2195(H) x 1365(W) x 230(D) mm, monitor part only Basement or wall mount bracket option |
| WEIGHT | 250 Kg approx. without air-con |
| Waterproof IP54 Enclosure w/ AR Vandal glass | |
| COOLING | Cooling fans controlled by MCU for semi-outdoor |
| 2 x 600W industrial air-con for outdoor | |
| ENVIRONMENTAL |
Operating Temperature -20-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
