640 x 480 Waterproof LCD Monitor 6.4" High Durability Good Scratch Resistance

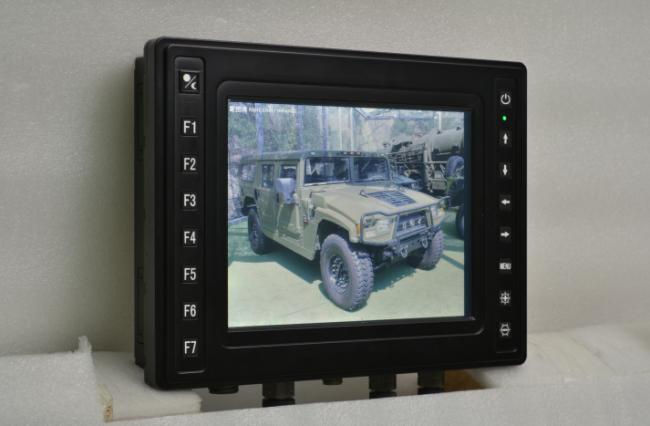

Maxbright 6.4”LCD Avionic Module Model : M064EECL-R
with LED edge type backlight enhanced
Model : M064EECL-R
The Maxbright M064EECL-R is a high bright and NVIS compatible 6.4″ TFT LCD to create a wide-temperature, ruggedized, day time and night vision flat panel monitor perfect for a variety of outdoor HMI and control applications in hazardous area locations.
Featuring edge type dual LED backlight system technology, the M064EECL-R offers both high bright for day time sunlight readable, and impressive extended operating temperature range of -30° to +60°C with no internal heaters or cooling fans required. For increased durability, the touchscreen integrates a vandal AR glass surface that is waterproof, abrasion/scratch resistant, and impervious to flames, chemicals, solvents and stylus use.
PRODUCT HIGHLIGHTS
- 6.4″ TFT LCD True Industrial-grade Panel
- Edge type dual LED Backlight system enhanced
- 1000 nits for day time and 0.17 - 15 nits for Night vision
- Deep Dimming Capabilities from 100% to 1% by OSD buttons
- Durable AR Vandal Glass-Surfaced Resistive Touchscreen
- VGA, RS232, Power Input by IP rated round connector
- Programmable function Keys for HMI and control system
- –30°C to +60°C Wide Operating Temperature Range
- Optical bonding for contrast ratio improve and Anti-shock strengthen option
- Vibration-proof, fastener system which will not loosen regardless of seat torque.
- All internal connectors and cabling are well retained to combat vehicle shock and vibration
| Items | Parameters |
| Active Area | 210.4(H)×157.8(V) mm |
| Brightness | 1800 cd/m² / 1200 cd/m² |
| Resolution | 800×600 / 1024×768 RGB |
| Touch Screen | 5-wire Resistive Touch with RS232 controller |
| Interface | DVI,VGA,RS232,GPI/O,Power Input |
| Power Consumption | 18W / 22W |
| Operating Voltage | 12VDC / 9-36VDC option |
| Operating Temperature | -20°C - 60°C |
| EMC | CE102 10KHz–10MHz RE102 10KHz–1GHz or MIL-STD-461E |
| Anti-Shock and Vibration | Design Satisfy GJB 150.16A GJB 150.18A or MIL-STD-810 Standard |
