9-36VDC 12.1 Inch TFT 1200nits Rugged LCD Monitor
9-36VDC 12.1 Inch TFT 1200nits Rugged LCD Monitor

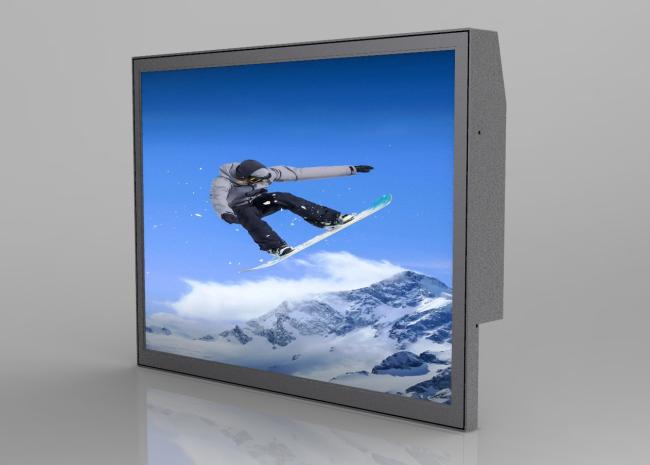

12.1” High Bright Rugged LCD Monitor Model : M121EECL-R
with LED edge type backlight enhanced
Model :M121EECL-R
The Maxbright M121EECL-R is an innovative sunlight readable, LED backlight LCD display. It provides LCD panel
PRODUCT HIGHLIGHTS
-
High Brightness 1200 nits
-
Sunlight Readable
-
Wide Operation Temperature
-
LED Backlight
-
Low Power Consumption
-
Slim Bezel
-
BL MTBF: 100,000 hours
| Items | Parameters |
| Active Area | 245.8(H) x 184.3(V)mm |
| Brightness | 1200 cd/m² |
| Resolution | 1024 x 768 |
| Contrast Ratio | 700:1 |
| Pixel Pitch(mm) | 0.24(H) x 0.24(V) |
|
Pixel Pre Inch (PPI)
|
106 |
| Viewing Angle | 160°(H) , 160°(V) |
| Color Saturation(NTSC) | 80% |
| Display Colors | 262.144K 6 bits |
| Response Time(Typical) | 6ms tr, 17ms tf |
| Panel Interface | LVDS |
|
AD B oard Input Inte rface |
VGA, DVI |
|
Input Powetr |
12VDC, 9-36VDC option |
|
Powe r Consumption |
13.8W |
|
OSD Key |
5 Keys (Power Switch, Menu, +, - Enter) |
|
OSD Control |
Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
|
Dimensions (mm) |
265x208x40 mm |
|
Bezel Size(U/B/L/R) |
11.65/8.5/7/8.85mm |
|
Weight (Net) |
1.8kg |
|
Mounting |
75x75 mm |
|
Operating Temperature |
-30˚C ~ 85˚C |
|
Storage Temperature |
-30 ˚C ~ 85 ˚C |
