Photocatalytic Self - Cleaning Solid Aluminum Sheet Anti - Green Building Materails

Photocatalytic self-cleaning fluorocarbon coating aluminum sheet is sprayed on the surface of fluorocarbon-coated aluminum sheet at room temperature with a layer of photocatalytic self-cleaning agent attached to the surface of sprayed aluminum sheet fluorocarbon coating and photocatalytic with the self-cleaning, anti-aging, degradation of organic matter and other environmental features of the inorganic transparent film.

Product specifications:

Aluminum dimensions: thickness 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm

Width :1000mm-1900mm length: ≤ 6000mm

Finished products size: Machinable molding length ≤ 6000mm, width ≤ 1500mm, height ≤ 1.9mm.

Special Size: Conventional circular plate forming radius ≥ 150mm Special can make modle.

Punching hole punching aperture ≤ 80mm hole shape, size, spacing can be customized according to customer requirements.

Photocatalytic self-cleaning process

Photocatalytic external wall self-cleaning paint (spray paint) is a titanium dioxide water-soluble sol coating, the spray coating at room temperature required protective substrate surface can be formed with a self-cleaning, anti-aging and photocatalytic degradation of organic matter Environmentally friendly inorganic transparent film. The self-cleaning principle is that titanium dioxide generates electrons and holes after being irradiated by light and reacts with "water and oxygen" in the air to generate "hydroxyl radicals + oxygen radicals" capable of decomposing various organic substances and bacteria and forms superhydrophilic membrane. After the oil is decomposed, it can be easily washed by the rain to achieve self-cleaning effect.

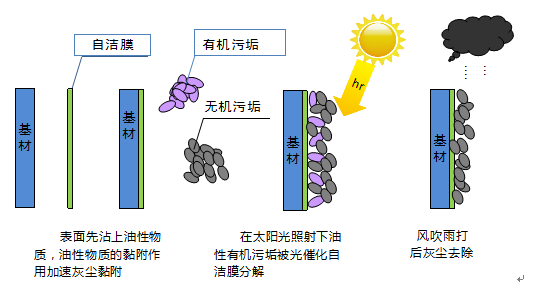

Specific self-cleaning process:

(1) the surface of the substrate stained with oily substances, the adhesion of oily substances to speed up the adhesion of dust;

(2) Under the sunlight irradiation, the oily organic dirt is decomposed by photocatalytic self-cleaning membrane;

(3) Remove the dust after the wind and rain.

Sinopec Shao Zhu Expressway Lake service station shelter spray six months after the comparison map

Petroleum, Sinopec gas station auxiliary facilities

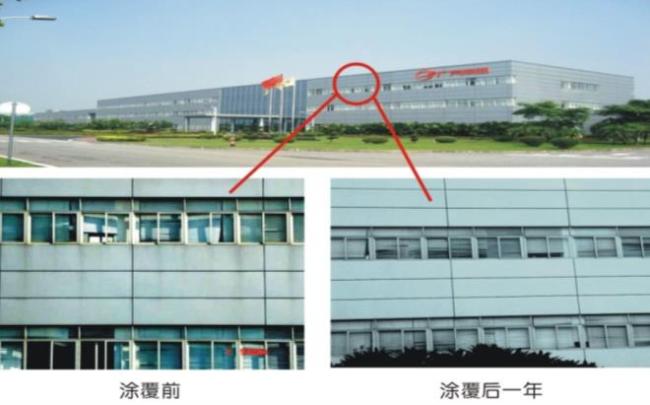

Guangzhou Automobile Toyota office building

Shaoxing BRT Bus Rapid Transit Line 1-5 waiting room
