Copper Steel Composite Panel Thickness 3 4 5 6 Mm Weather Resistance Stable

Copper composite panel and steel composite panel, refers to the core of plastic, positive for the copper and steel, the back of the aluminum or copper and steel plate of three composite sheet. Steel composite panel coated with decorative and protective decorative coating or film to improve product decoration and corrosion resistance; and copper composite panels are only covered with a layer protective film processing.

Copper composite panels have copper green, bronze and other special colors.

Product specifications:

Specifications: Thickness: 3,4,5,6 mm, length: ≤ 6000mm, width: 700-1575mm

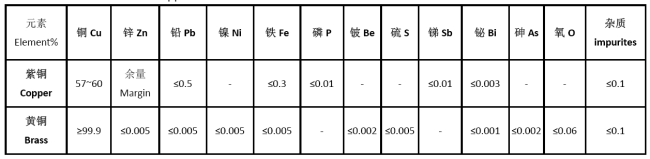

Real materials: copper and brass sheet

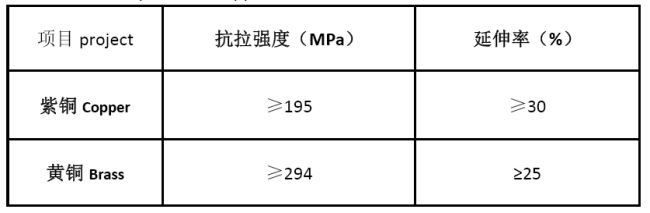

Mechanical Properties of copper sheet

Mechanical Properties of copper sheet

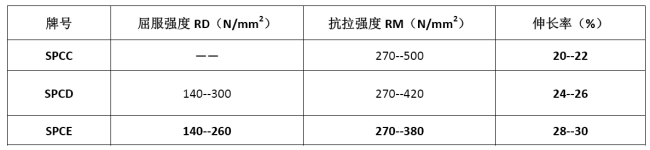

Steel mechanical Properties

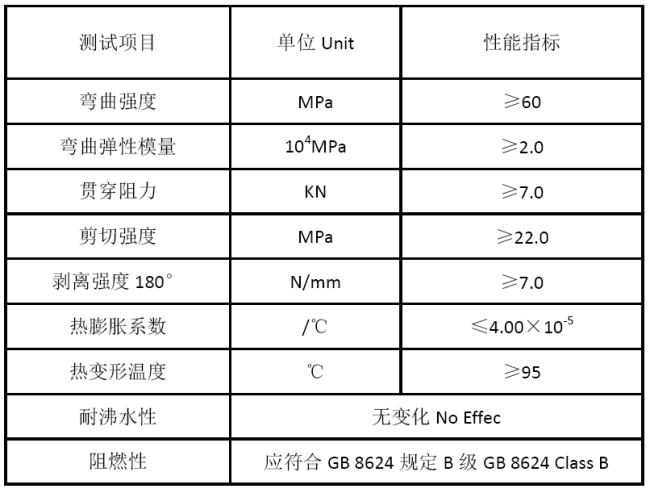

Copper(steel) composite panel test item
