Water Resistant Anti Impact Polyester Conveyor Belts

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

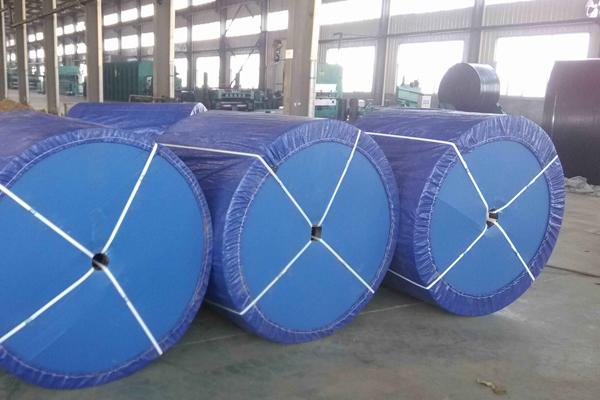

EP Conveyor Belt

EP Conveyor Belts, also called Polyester conveyor belts, whose tension resistant body is canvas woven by polyester in warp and nylon in weft.The belts have the characteristics of low elongation in warp and good trough ability in weft, good water resistance, good wet strength.

Feature

1. Good elasticity, anti-impact
2. High adhesion, good flexing capacity
3. Good trough ability
4. Better stability of size and heat-resistance
5. Good water-proof ability
6. Little change in strength under dry or wet conditions

Standards

GB/T7984-2001, DIN22102,BS490, AS1332, RMA, JISK6322, SABS1173 etc

EP Conveyor Belt

Specifications

Fabric Material	Fabric structure		Fabric code	No.of fabric plies	Width mm	Length m	Cover thickness mm
	Warp	Weft
	Warp	Weft					Top	Bottom
Polyester canvas	Polyester	Nylon of Polyester	EP100	2-10	350-2000	10-400	2-12	1-5
			EP150	2-10	350-2000	10-400	2-12	1-5
			EP200	2-10	350-2000	10-400	2-12	1-5
			EP250	2-10	350-2000	10-400	2-12	1-5
			EP300	2-6	350-2000	10-400	2-12	1-5
			EP400	2-6	350-2000	10-400	2-12	1-5
			EP500	2-6	350-2000	10-400	2-12	1-5
			EP600	2-4	350-2000	10-400	2-12
