Coaxial Cable H.264 AC3 Tv Decoder Box / High Definition Set Top Box 47~862MHz

Price Negotiable

Price: 1~499pcs US$18.5 500~999 US$18.00 1000pcs above US$17.5

MOQ: 1pcs

Delivery Time: 4~5 work days

Brand: JiZhong

Product Description

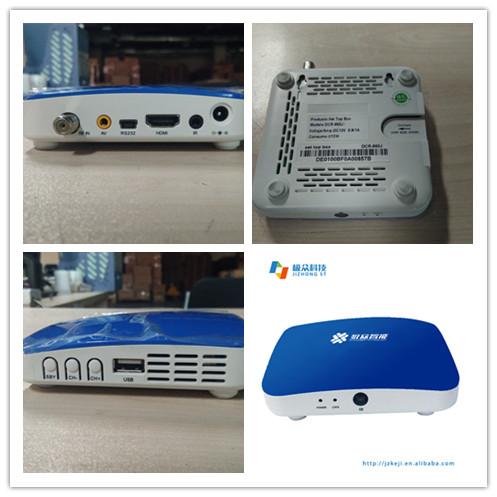

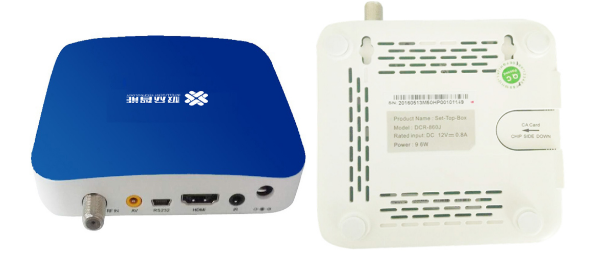

Coaxial Cable H.264 AC3 Decoding DVB-C HD Digital TV Set Top Box DCR-860J

Main Features:

∇ Fully compliant with DVB-C/MPEG/H.264/H.265/AVS/AVS+ standard.

∇ Support multiple star-level QAM modulation mode (16/32/64/128/256QAM);

∇ Support multiple mainstream CA conditional access system;

∇ Support standard EPG, can achieve weekly information and program reservation management as well as EPG Advertisement business;

∇ Support mainstream middleware and customized information business;

∇ Support PVR reservation and real-time record as well as encryption application;

∇ Support external storage device time-shift and play- back function;

∇ Built-in player supports USB local video/music/picture play;

∇ High performnce achieves smooth conversion from SD to HD;

∇ Support loader update in the air by manual,Auto and USB and other ways, instantly update the latest firmware online;

Technical Parameters:

Input Frequency:	47~862MHz
Signal channel standard:	DVB-C EN300 429
Demodulation mode:	16/32/64/128/256QAM
Symbol rate:	3.6~6.952MS/s
Video decoding :	MPEG-2/MPEG-4/H.263/H.264/AVS/AVS+/Xvid/VC-1/WMV9/VP8
Video output:	1080p50(60)/1080i/720p/576p
Audio decoding:	MPEG-1/-2/AAC/AC3/RA/WMA/Dol-by Digital Plus
Audio mode:	Left/Right/Stereo
CPU processing speed:	Main frequency @700MHz
Flash memory:	8MB
RAM memory:	128MB
Panel display:	power/clock LED indicator
Panel button:	standby/Channel±3 Key-mode design
RF input:	English system F-type Female head
Audio and video output:	PJ-322 interface (L/R/CVBS)
HD-MI output:	HD-MI 1.3b(supporting HD-CP)
USB interface:	USB2.0 (Horizontal type)
Infrared loopout:	3.5mm plug hole
Data interface:	Mini USB-RS232
Input voltage:	DC:12V/0.8A
Power consumption:	10W (MAX)
Dimension:	112mmx112mmx24mm
