CE RoHs FTTH Fiber Optic Network Router 1GE 3FE RF WIFI ONU Support Telnet ACS

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: Negotiable

Brand: JIZHONG

Product Description

CE RoHs FTTH Fiber Optic Network Router 1GE 3FE WIFI RF FTTH ONU Support Telnet ACS

Features

Built in 700MHz high performace ARM cortex A9 RISC process(32KB I/32KB D L1Cache,256KL2Cache),support MMU,bulit in 250MHz higher formance DSP processor.
GPON compliant with ITU-T G.984.1/2/3/4,1.244Gbit/s;,upstream speed 2.488Gbit/s,upstream 1.244Gbit/s,EPON compliant with 802.3-2005 and CTC EPON technic requirements.EMS network management based on SNMP ,convenient for maintenance.
Full speed non-blocking switching.Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.Support auto polarity detection of Ethernet ports (AUTO MDIX).Integrated IEEE802.1p QoS with four level priority queues.

Three laybers of Service Multicast

PPPoE/Static IP,DHCP IGMP v2/v3 snooping

NAT/NAPT IGMP v2 proxy

Port Forwarding IGMP V3 proxy

ALG,UPnp MLD v1/v2 snooping

DDNS/DNS Server/DNS cLIENT WIFI carry multicast Traffic

IPv4/IPv6 double stack,DS-Lite

Static routing/default routes

QoS

A Wan carry more service Ethernet port speed limit

SECURITY

Preventing DoS attacks

Operation Management

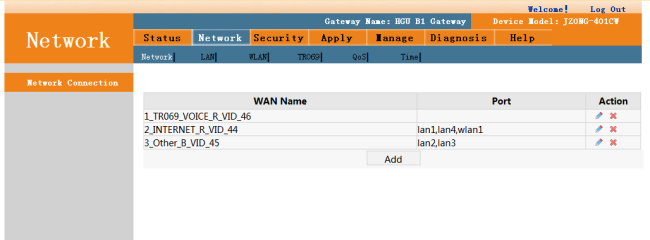

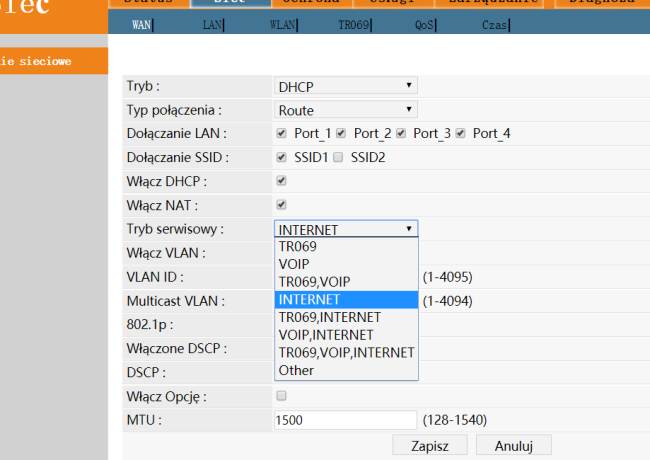

MAC/IP/URL filtering OMCI/WEB UI/TR069/TELNET

CATV

WIFI

Performance parameters	Frequency	2.4-2.4835GHz
	Throughput	IEEE 802.11b: 11Mbps
		IEEE 802.11g: 54 Mbps
		IEEE 802.11n: 300Mbps
	Frequency	2.412 ~ 2.472 GHz
	Channel	13*Channel, configurable to meet the standard of USA, Canada, Japan and China
	Modulation	DSSS , CCK and OFDM
	Coding	BPSK, QPSK, 16QAM and 64QAM
	RF receive sensitivity	802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps;
		-78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps
		802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps;
		-79dBm @ 12 Mbps; -77dBm @ 18 Mbps;
		-74dBm @ 24 Mbps; -70dBm @ 36 Mbps;
		-66dBm @ 48 Mbps; -65dBm @ 54 Mbps
	RF output lever	802.11b: 16.5 ±1dBm
		802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps
		802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps
	Encryption Mode	802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)

PON

Interface	PON Interface	1 GPON optical interface
		Meet 1000BASE-PX20+ standard
		Symmetric 1.244Gbps upstream/downstream 2.488gGbit/s,
		SC single-mode fiber
		split ratio: 1:64
		Transmission distance 20KM
	User Interface	310/100Mauto-negotiation;110/100/1000
		Full/half duplex mode
		RJ45 connector
		Auto MDI/MDI-X
		100m distance
		1 RF output
		Female F-Type Connector
Network Management	Management	Support IEEE802.3 QAM, ONU can be remotely managed by OLT
	Mode	Support Remote management through Telnet,TR069,
		Local management
	Management	Status monitor, Configuration management, Alarm management,
	Function	Log management
Indicator	LED Indicator	PWR, SYS,PON, LAN1~LAN4, CATV,WIFI
Physical Features	Shell	Plastic casing
	Power	External 12V 1A AC/DC power supply adapter
	Power	Power consumption: <5.5W
	Dimension and Weight	box Dimension:209mm(L) x 165mm(W) x 69mm (H)
	Dimension and Weight	Item weight:0.4kg
	Environmental	Operating temperature: 0 to 50 ºC
	Specifications	Storage temperature: -40 to 85 ºC
		Operating humidity: 10% to 90% (Non-condensing)
		Storage humidity: 10% to 90% (Non-condensing)
