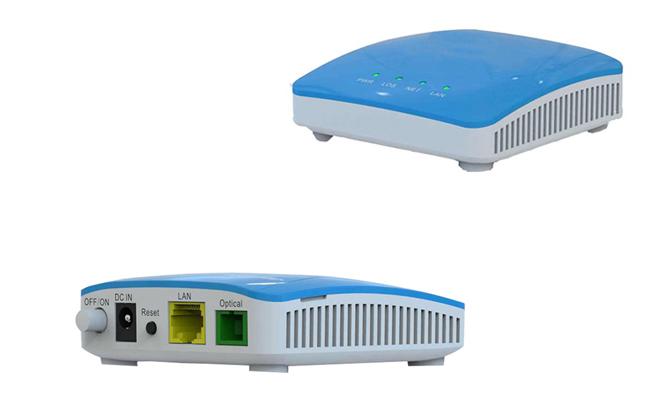

Dual Mode Optical Network Terminal EPON GPON SFU 1 GE Port FTTH ONT For FTTH Device

Features

     Powerful SoC chipset with CPU frequency up to 500MHz. Embedded ARM processor serves both protocol message and user data with high performance interconnection. PON MAC and high performance SerDes are adapted to support GPON and GEPON application. Support adaptive EPON/GPON mode; compliant with G.984/ G.983 GPON and 802.3-2005/CTC; compatible with xPON; supporting basic forwarding, traffic classification; support QoS

Main Features

• Internal 500 MHz high performance ARM (32KB I/32KB D L1Cache) processor；
• Support EPON/GPON protocol and function application; GPON compliant with ITU-T G.984.1/2/3/4; package meeting G.984 Ethernet over GEM ; downstream speed- 2.488Gbit/s while upstream speed-1.244Gbit/s; EPON meeting 802.3-2005 and CTC EPON requirement with parallel upstream and downstream rate of 1.25Gbit/s
• SerDes and CDR, support adaptive EPON/GPON
• Support two-way linear speed data forwarding, support 256 MAC Address Table
• Support 802.3 SNAP and Ethernet II package, supporting 802.1P/Q priority definition, IP DSCP field, ACL definition based priority
• Support tag identification,modify and add； support protocol message identify and capture
• Supports ACL rule(supporting MAC/IP/TCP/UDP/ICMP /IGMP /IPv6 format )
• Ethernet support adaptive or manual rate and full/half duplex
• Support 802.1x certificate, STP /RSTP protocol
• Traffic control based on ingress ; support QoS function

Technical Specification
