Durable FTTH Onu Wifi Modem 1GE 3FE 1POTS CATV EPON GPON ONU Unit With RF Output

Price Negotiable

Price: Negotiable

MOQ: 1pcs

Delivery Time: 5 work days

Brand: jiZhong

Product Description

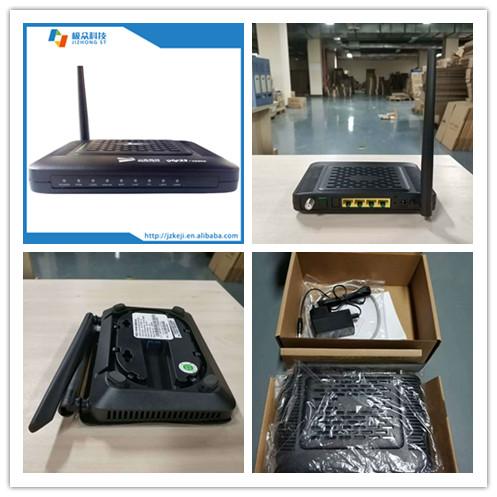

Onu Wifi Modem 1GE 3FE 1POTS CATV EPON GPON FTTH ONU With RF Output

CATV Specification:

· Turn on/off RF output remotely

· Wavelength:1310/1550 +/- 10nm

· Optical return loss:>45dB

· Input optical power:-20dBm~+2dBm

· RF frequency:87MHz~1000MHz

· RF output level:70~80dBuV

· Optical AGC range:-15 to -5 dBm

Parameters
Items	Parameters
Pon interface	1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 Transmission distance 20KM
User interface	310/100Mauto-negotiation;110/100/1000 Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance 1 RF output Female F-Type Connector
Power Interface	DC 12V
PON Optical Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125um single-mode fiber
Data Transmission Parameter	PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms
Business Capability	Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support link detection
Management Mode	Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management
Management Function	Status monitor, Configuration management, Alarm management, Log management
LED Indicator	PWR, SYS,PON, LAN1~LAN4, CATV,WIFI
Dimension and Weight	Item Dimension:175mm(L) x 120mm(W) x 32mm (H) Item weight:0.4kg
Environmental Specifications	Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing)
