HFC 1550nm Optical Transmitter Support AGC MGC Jizhong Internal Modulator 1550 Fiber Optical Transmitter for CATV FTTH

Product Overview

   JZOT1510N-KII-D series 1550nm direct optical transmitter (insertion type) is suitable for the image, digital and data signal transmission via fiber in the filed of CATV communication. Designed specifically for the transmission of digital or analog signals over medium and short distances; especially suitable for IPQAM optical insertion, enterprise-run program insertion, etc.

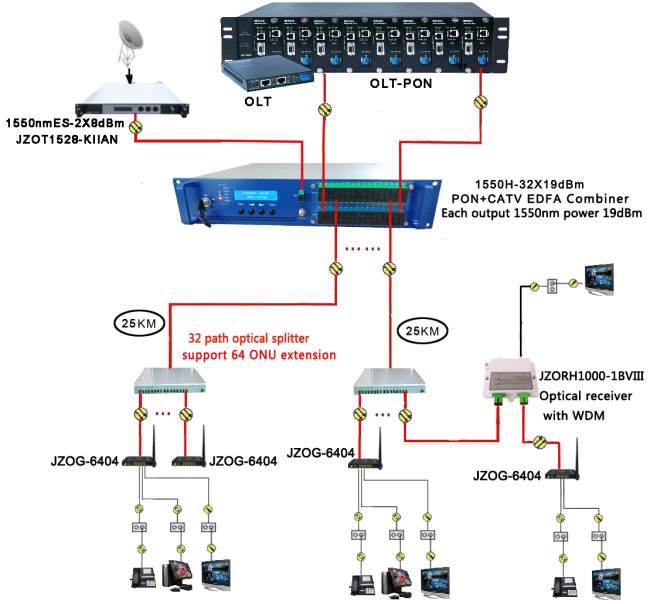

Application

Main Features

• It has customized ITU-T standard wavelength.
• It is to improve pre-distortion designed by CSO in 1550 system.
• Integrated combiner has FWDM and broadband,which is applicated in IPQAM signal input
• When SBS threshold is more than 16dbm, in certain of transmission distance, there is no changes in system, and it can be effective instead of external transmitter.
• All key working parameters are display by front LCD panel.
• With RJ45 network interface,19”1U standard frame.

Technical Parameters

The technical parameters marked in this manual are the results of tests conducted in accordance with the test conditions and methods specified in the GY/T143-2000 "specifications and methods of measurement on AM optical transmitter and receiver used in CATV systems"

Number	Item	Unit	Performance	Remark
1	Laser output optical power	mW	10	4,6,8,10
2	Insert program optical wavelength	nm	ITU-T standard
3	Optical modulation		direct
4	Insert program frequency qty		≥32
5	Broadcasting optical input range	dBm	0~+6	Combiner multiplexer
			0~+12	DWDM multiplexer
6	Insert path attenuation range	dBm	-16~0
7	Optical connector		SC/APC or FC/APC
8	Optical reflection loss	dB	>55
9	RF working bandwidth	MHz	47~1000
10	RF input impedance	Ω	75
11	flatness	dB	±0.75
12	RF input signal level	dBmV	15~25	Main port
13	RF2 signal level	dB	+10	Vice port
14	RF gain range	dB	-10~+10
15	RF input reflection loss	dB	≥16
16	RF level control mode		AGC/MGC
17	RF connector		Imperial F
18	(C/N)	dB	≥51.0	6.2.3.5
19	(C/CTB)	dB	≥65.0	6.2.5
20	(C/CSO)	dB	≥60.0	6.2.6
21	Power consumption	W	≤20
22	Working temperature range	℃	0~+40
23	Storage temperature	℃	-25~+55
24	Network interface		RJ45	II

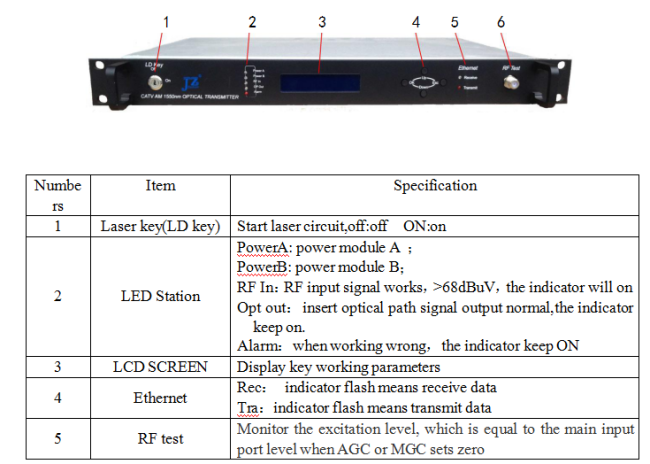

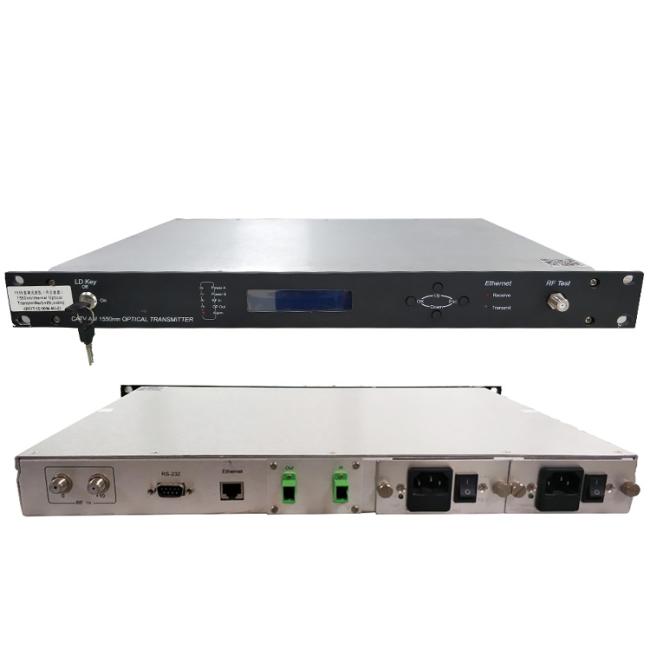

Front Panel

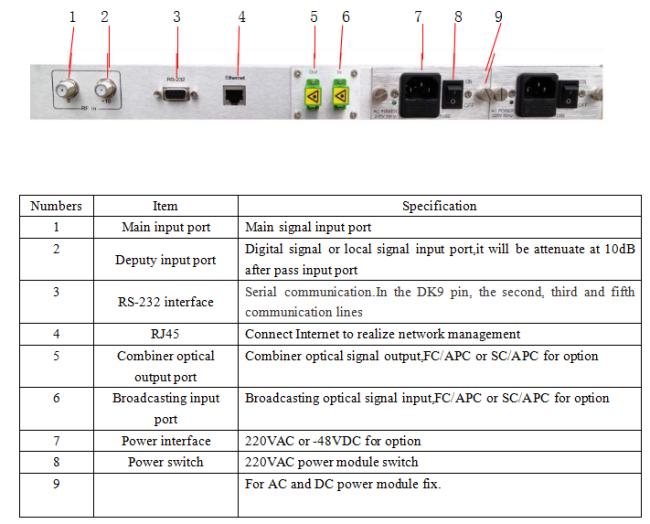

Rear Panel
