Hisilicon Chipset SD5116H 1GE 3FE EPON ONT Compatible With ZTE C320 OLT
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
5 work days
Brand:
JiZhong
Product Description
Hisilicon Chipset SD5116H EPON 1GE 3FE FTTH ONT With WIFI CATV Compatible With ZTE C320 OLT
Advantages:
Hardware support GEPON adaptive
With Hisilicon chipset,compatible with third party brand OLT
Customized logo and lauguage acceptable based on big qty
Support ACS,CLI,TELNET manage.
CATV Specifications:
Turn on/off RF output remotely
Wavelength:1310/1490/1550 +/- 10nm
Optical return loss:>45dB
Receive optical power:-20dBm~+2dBm
Optical AGC:-15~-5dBm
RF frequency:87MHz~1000MHz
RF output level:70-80dBuV
Optical connector:SC/APC
Technical index:
| Item | Parameter | ||
| Interface | PON Interface | 1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 Transmission distance 20KM |
|

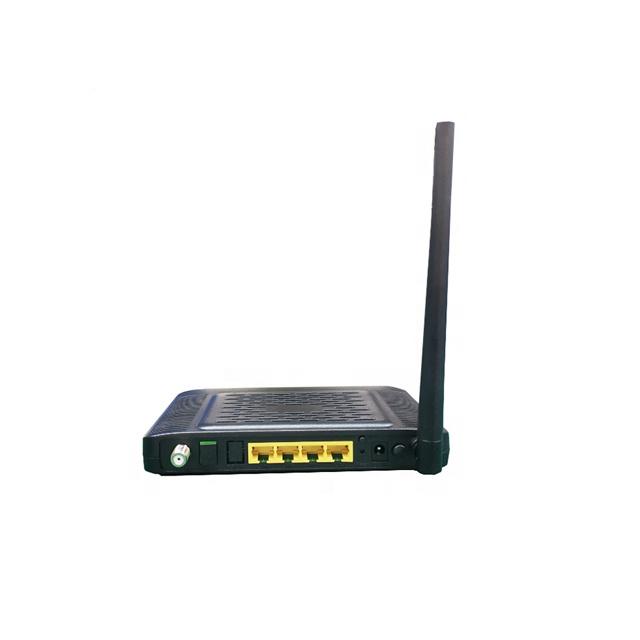

| User Interface | 3*10/100Mauto-negotiation;1*10/100/1000 Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance 1 RF output Female F-Type Connector |
||
| Power Interface | 12V Direct Current Power supply |
||
| Performance Parameters | PON Optical | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125um single-mode fiber |
|
| Data Transmission Parameter |
PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms |
||
| Business Capability |
Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support link detection |
||
| Network Management | Management Mode |
Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
|
| Management Function |
Status monitor, Configuration management, Alarm management, Log management |
||
| Indicator | LED Indicator | PWR, SYS,PON, LAN1~LAN4, CATV,WIFI | |
| Physical Features | Shell | Plastic casing | |
| Power | External 12V 1A AC/DC power supply adapter Power consumption: <5.5W |
||
| Dimension and Weight | Item Dimension:175mm(L) x 120mm(W) x 32mm (H) Item weight:0.4kg |
||
| Environmental Specifications |
Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) |
||
