Fiber Optic Device HFC Line FTTB Optical Node Two Way 104dBuV Optical Receiver With AGC

Price Negotiable

Price: Negotiable

MOQ: 1pcs

Delivery Time: 5 work days

Brand: JiZhong

Product Description

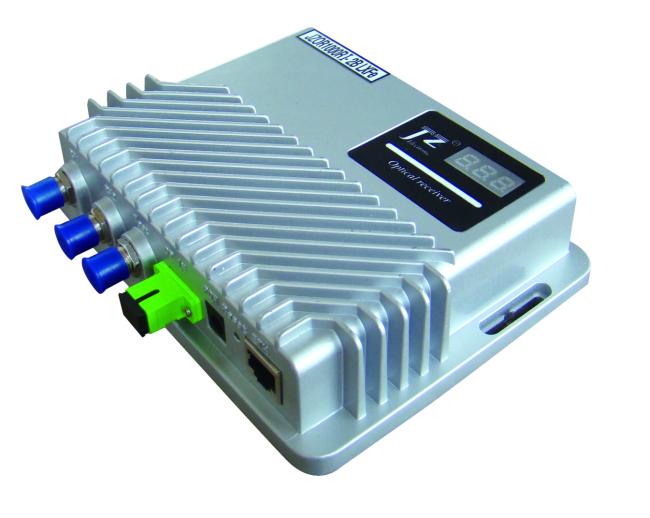

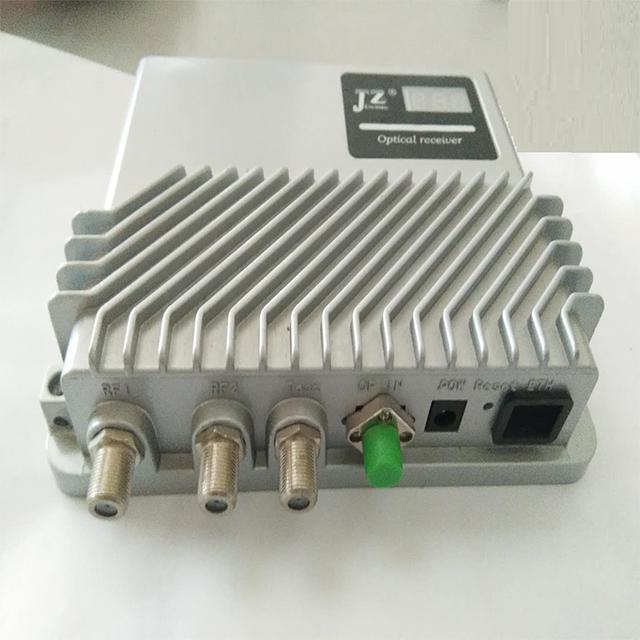

HFC Line FTTB Optical Node Two-Way 104dBuv Optical Receiver FTTH Device With AGC

Product Overview:

It uses high performance photodiode detector to receive user's forward optical signal, it has excellent performance and flexible configuration features. it allows optical AGC control output level stability within a range of input optical power. Its built-in microprocessor can monitor and setting the key parameters of the receiver working status, and LED display the working state in real time.

Specifications:

Parameter	Specification	Units	Notes
Optical parameters
Wavelength	1310 , 1550	nm
Optical input power	-8~ +2	dBm
RF parameters-Forward Path
Bandwidth	47/54/87- 1000	MHz
Response flatness	±0.75	dB	With standard transmitter.
Output level	≥104	dBuV	@ -1dBm receive power.
Return loss	≥16(54-550MHz) ≥14(550-1000MHz)	dB
C/N	≥51	dB	With standard transmitter, 59 PAL-D + 33 QAM channel load, 10km fiber and attenuation at -1dBm receive power. Output 104dBuV, 9dB equalized output.
CTB	≤-60	dB
CSO	≤-60	dB
RF parameters-Return Path
Bandwidth	5 ~ 30/42/65	MHz
Response flatness	±0.75	dB	With standard transmitter.
RF input level	75 ~ 85	dBuV
Return loss	≥16	dB
NPR≥30	≥10(FP) ≥15(DFP)	dB	With standard return receiver, optical link loss 5dB and optical modulationdepth 7%.
Wavelength	1310	nm
Optical output power	1 ~ 2	mw	Depend on laser.
Type of optical transmitter	FP
Physical & Environmental
Optical connector	FC/APC or SC/APC
