FTTH Wireless Modem 1GE Router WiFi FTTH ONT With Good Compatibility

Price Negotiable

Price: Negotiable

MOQ: 1pcs

Delivery Time: Depends

Brand: JiZhong

Product Description

FTTH Wireless Modem 1GE Router WiFi FTTH ONT With Good Compatibility

Product descriptions:

JZOG-1200 is 1GE+WIFI XPON(GPON and EPON dual mode) HGU ONU.

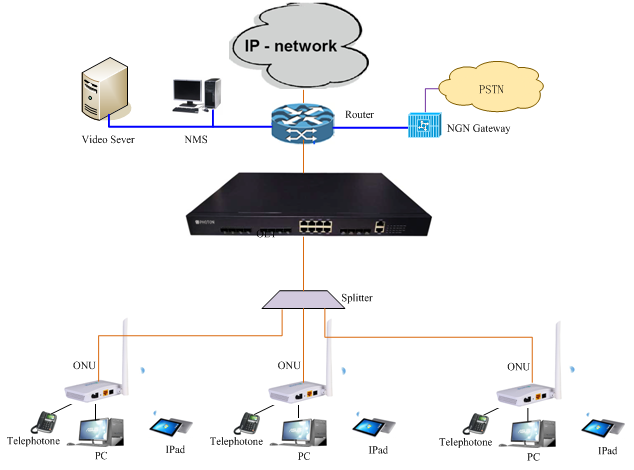

It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements.
It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees.
It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom.
Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.
It can also be applied to a wide temperature environment, and also has a powerful firewall function.

Product Features:

Technical Parameters:

Items	Unit	Specifications
PON standard.		EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interface		SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM
Speed	Gbps	GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps
Wavelength	nm	Tx1310, Rx 1490
Interface	data	1*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Interface	Wireless	Compliant with IEEE802.11b/g/n, 300Mbps
Indicator	LED	POWER, LOS, PON, LAN, WiFi
Operating condition	℃	Operating temp: -5 ~ +55
Storing condition	℃	Storing temp: -30 ~ +60
Humidity	%	10~90(non-condensing)
Power supply	V	DC 12V,0.5A adapter
Power consumption	W	≤6
Dimension	mm	120×78×30(L×W×H)
Net weight	Kg	0.13
