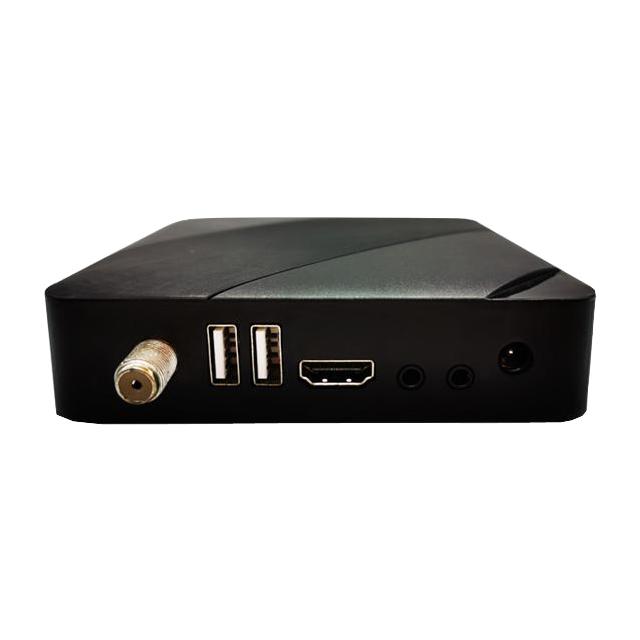

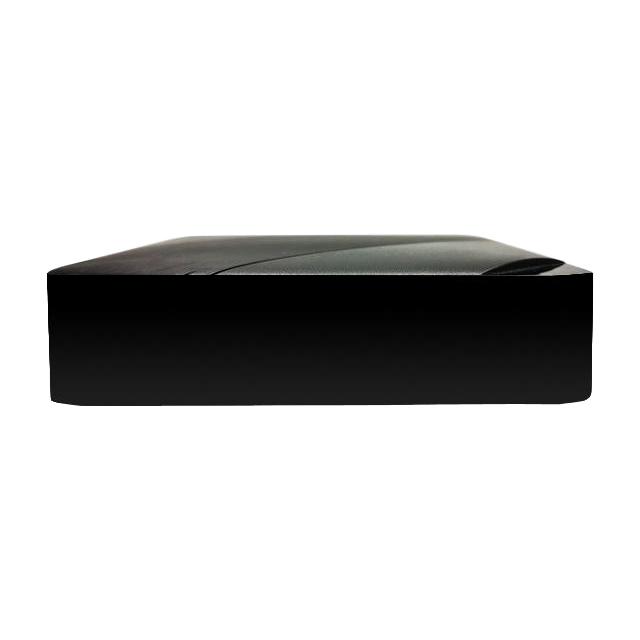

DVB-C HD Digital TV STB Set Top Box MPEG4 TV Box Support Annex A/B/C
DVB-C Digital TV Set Top Box Supporting Annex A/B/C
Main Features:
*Compliant with DVB-C Standard Fully
*MPEG-4/H.264 Decoded
*PAL: 576i/576p/720p/1080i/1080P
*NTSC: 480i/480p/720p/1080i/1080P
*CAS Supported
*USB WIFI Dongle both Internet and Interactive Function
*USB PVR and Time-shift
*Auto Network Lock as per Different Network Name/ID and Home TS
*NIT Auto Detect as per Service ID
*STB Guide/Genre as per BAT Table (Bouquet)
*Boot-up Logo, Radio Image and Watermark
*7-day EPG with Synopsis and Rolling Event
*Channel Booking and Editing
*Email, Parental Lock and Timer
*Audio, Video and Picture Setting
*STB Upgrade via USB, OTA or Serial Port
*Auto, Manual or Full Channel Search
*Last Channel Memory and Multi-language
*32 Around Favorite Group
TV Set Top Box Parameters:
| CPU | |
| Main Chip |
GX3113S Soc Ecos OS |
| CPU Frequency | 1000DMIPS@660MHz,32bit |
| FLash | 8MB |
| DDR3 | 128MB |
| Tuner | |
| Brand | MXL608 |
| Input signal range | 38~100dBuV |
| Input impedance | 75Ω |
| Channel Decoding | |
| Video decoder | H.264, MPEG-4, MPEG-2, MPEG-1; SP/MP/AP |
| Video output | CVBS*1, HDMI 1.4 |
| Video Format | PAL/NSTC |
| Aspect Ratio | 4:3/16:9 |
| Resolution | HD&SD to 576p,720p, 1080i decode &1080p display |
| Audio Decoder | |
| Audio decoder | MPEG1,MP3, MPEG4 AAC&AAC+, DRA |
| Audio output | HDMI1.4, A-L, A-R |
| Audio mode | Left/Right/Stereo |
  |
|
