ITU J83 A/C DVB C Digital Analog TV Set Top Box Support MPEG 2 4 Dolby AC3+ Audio Decode
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
JIZHONG
Product Description
ITU J83 A/C DVB C Digital Analog TV Set Top Box Support MPEG 2 4 Dolby AC3+ Audio Decode
| ITU J83 A/C DVB C Digital Analog TV Set Top Box Support MPEG 2 4 Dolby AC3+ Audio Decode | |||
| I.General | |||
| STB TYPE | DVB-C MPEG-2/4,H.264,AVS,AVS+, HD Digital Receiver | ||
| Main Chipset | Montage M88CC8201 | ||
| Mechanical | Plastic | ||
| Function/Interface | HDMI1.3B(support HDCP),USB2.0,IR LOOP OUT3.5mm,DC12V/0.8A | ||
| Conditional Access | Dexin | ||
| POWER SUPPLY TYPE | External power adaptor ,DC12V 1A output | ||
| II.Software Features | |||
| Decoding Standard | DVB-C/MPEG2/4,H.264/H.265/AVS/AVS+ | ||
| QAM Modulation | 16/32/64/128/256QAM | ||
| CA | Dexin,Sumavision,Irdeto | ||
| PVR | Support PVR reservation and real-time recording and encryption application | ||
| Menu | Friendly interface menu | ||
| Multi language | Supports menu language in English/Spanish/Russia necessary language | ||
| Channel Edit | Various channel editing function(favorite,add,delete and parental look) | ||
| Channel search | Auto scan,manual scan | ||
| Software upgrade | software upgrades by USB,and loader air upgrade manually and automatically. | ||
| Sorting | Sort channel and display channel list on basis of channel content | ||
| Multi Media | Supports video&music playing,image browsing via USB 2.0 | ||
| EPG | 7-day electronic program guide | ||
| Channel Saving | Automatically save the channel being watched before power failure | ||
| 3.Accessories | |||
 |
|||
| IV.Technical Parameters | |||
| 1.CPU processor and memory | |||
| CPU processor speed | @700MHz | ||
| Flash | 8 MByte | ||
| RAM Memory | 128 MByte | ||
| 2.Tuner | |||
| Frequency Range | 47-862MHz | ||
| Input Impedance | 75Ω | ||
| Input level range | -20 to 20 dBmV 64QAM/-19 to 25 dBmV(256QAM) | ||
| 3.Demodulator & Channel Decoder | |||
| Standard followed | DVB-C EN300 429 | ||
| Demodulation | 16QAM,32QAM,64QAM,128QAM,256QAM | ||
| Symbol Rate | 3.6 - 6.952MS/s | ||
| 4.Video Decoding | |||
| Video Decode | MPEG-2MP@ML/MPEG-4SP@ASP/H.263/H.264/AVS/AVS+/Xvid/VC-1/WMV9/VP8 | ||
| Aspect Ratio | 4:3,16:9 | ||
| Video Resolution | 1920*1080MAX | ||
| 5.Audio Decoding | |||
| Audio Decode | MPEG-1Layer1&2/MPEG-2/AAC/AC3/RA/WMA/Dolby Digital Plus | ||
| Sound Mode | left/right/Stereo | ||
| 6.Environment | |||
| Power supply Unit | External power adaptor,100-240v input,DC12V 1A output | ||
| Power consumption | ≤ 10W | ||
| Operating Temperature | 0 ℃ to 50℃ | ||
| Storage Temperature | -20℃ to 60℃ | ||
| Humidity | <95% | ||
| Mechanical | |||
| STB CASE | PLASTIC | ||
| STB Dimension | 112*112*24(MM) | ||

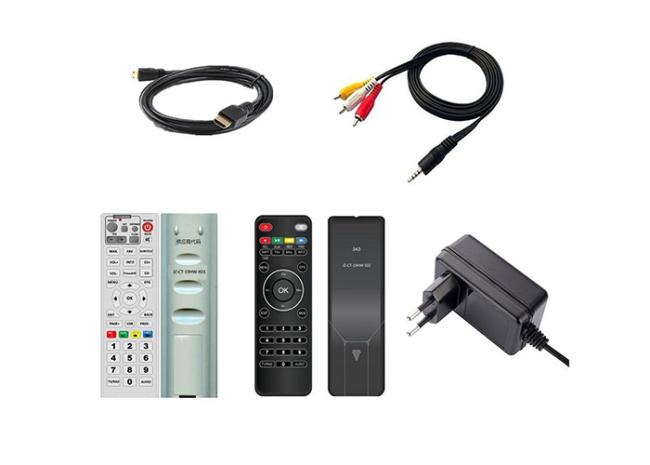

| STB Accessories | |||
| RCU | 1*RCU | ||
| Power Adaptor | 1*External Power adaptor | ||
| User Manual | 1*Single sheet user manual | ||
| HDMI Cable | 1*HDMI Cable | ||
| A/V cable | 1*A/V cable | ||
