Optical Fiber Fusion Splicer 9s FTTH Optical Test Instruments
Single Mode /Multi Mode Indoor Optical Fiber Fusion Splicer with 4 6 Motors For Optic Test
Product Description
The TWH-7650 Indoor cable Splicer adopts high-speed image processing and special precision positioning technology, which can automatically complete the whole process of fiber splice within 9 seconds.
It's small in size and light in weight, and it is suitable for field work. In addition, it has the advantages of simple operation, fast splicing speed and low splicing loss. Especially for telecommunications, radio and television, railway, petrochemical, electric power, army, public security and other fields of fiber cable engineering and maintenance as well as scientific research and teaching .
Features
- Real-time monitoring power supply
- Multi-language operation interface
- Built-in lighting(Convenient for placing fiber)
Application
- Single-mode and multi-mode quartz glass fibers
- Fiber external diameter125μm(Standard),Covered external diameter 0.2～1.5mm
Technical Specification
| Product Name:Single Mode /Multi Mode Indoor Optical Fiber Fusion Splicer with 4 6 Motors For Fiber Test | |
| Item | TWH-7650 |
| Fiber Alignment | Core Or Cladding Alignment |
| Image Processing Mode |
Digital Processing |
| Typical Splice Loss | 0.02db(Same Type Single Mode Fiber) 0.01db(Same Type Multimode Fiber) |
| Typical Splice Time | 9s |
| Typical Heating Time | 30s(Heating Time Can Be Set, Heater Temperature Can Be Adjusted) |
| Splicing Mode | 6 Sets Of Factory Mode, 54 Sets Of User Mode |
| Heating Mode | User Free Settings(Built-In Heater) |
| Fiber Magnification | 300(X Axis Or Y Axis),150(X Axis And Y Axis) |
| Battery Standby Time | One Charging Can Splice 250 Times(Simultaneous Heating) |
| Electrode Lifetime | 2500 Times |
| Tension Test | 2N |
| Splice Loss Storage | 8000 Groups Latest Splice Result |
| Display | 4.3 Inches TFT Colour LCD |
| USB Port | Connected To A Computer For Data Transfer, Storage And Printing |
| Working Temperature | -10～50℃,Storage Temperature:-40～60℃ |
| Working Humidity | ＜95％RH(No Condensation),Storage Humidity:0～95％ |
| Working Altitude | 0～5000m |
| Maximum Wind Speed | 15m/S |
| Power | AC 100～240V( Power Adapter); Built-In Lithium Battery |
| Consumption | 25W |
| Dimension | 200mm(Length)×130mm(Width)×98mm(Height) |
| Weight | 1.6Kg |

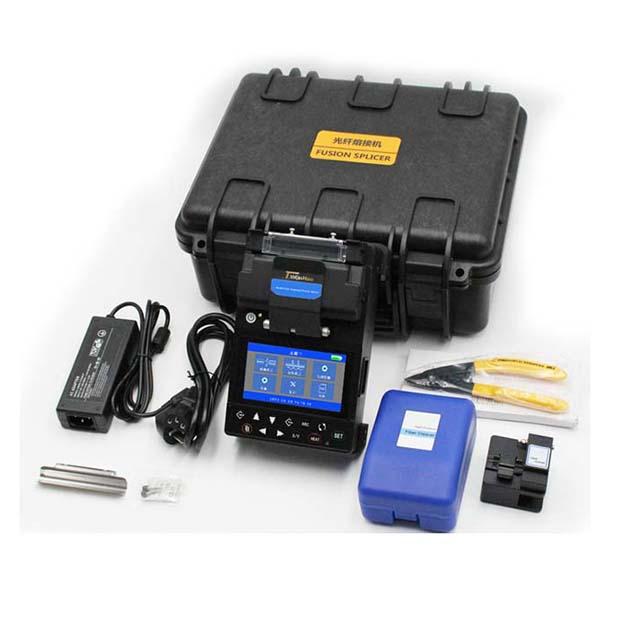

Fusion Splicer Toolkit
| Accessory | Amount |
| Splicer Host | 1 |
| Carrying Case | 1 |
| Spare Electrode | A Pair |
| Power Adapter | 1 |
| AC Power Line | 1 |
| Cooling Tray | 1 |
| Fiber Cutter | 1 |
| Fiber Stripper | 1 |
| User's Manual | 1 |
| Inspection Report | 1 |
| Quality Certificate | 1 |
| Packing List |
1
|
