1625nm FTTH Combo OTDR Fiber Tester Multi Function 2.4" Display
1625nm Multi function FTTH OTDR Combo Tester Optical Test Instructments
FTTH OTDR Combo Tester Description

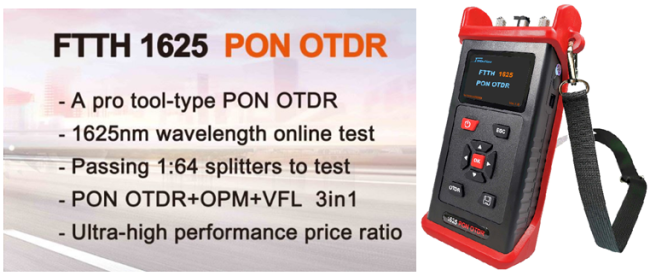

FTTH OTDR Combo Tester#TWH-1625 is a sort of pro-tool-type and ultrahigh performance-price ratio PON OTDR. It can make faults locating and analysis in the FTTH PON network and FTTX network, featuring OTDR’s online test function and finding faults by passing splitters. As well, it features convenient and fast as well as reliable performance in the optic network installation and operation/maintenance to the effect of reducing cost and enhancing the efficiency of operation/maintenance in terms of projects. Excellent repeatability, less complex settings, one-key operation, and integrating VFL and OPM functions are all countable.
TWH-1625 FTTH PON OTDR Tester is used to carry out troubleshooting positioning and analysis for FTTH optical networks. It features the online test,test through splitter up to 64 splitters deployed at one tier or two tiers and OPM+VFL functions.
FTTH OTDR Combo Tester Technical Parameters
| Product Keywords | 1625nm Multi function FTTH OTDR Combo Tester Optical Test Instructments |
| Test Dead Zone | ≤3m |
| Dead Zone of Reflective Event | ≤10m |
| Dead Zone of Attenuation Event | ≤30m |
| Distance Resolution | 1m |
| Pulse Width | 10ns-10us |
| Distance Uncertainty | ±(0.8m ± 0.01% * Test distance ±Resolution) |
| Threshold of Loss | >0.8dB |
| Resolution of Loss | 0.1dB |
| Connector | FC /PC |
| OPM Supported Wavelength | (850,1300,1310,1490,1550,1625)nm |
| VFL |
10mw (standard) 1mw, 5mw, 20mw (customized item) |
| Storage Ability | 100 items |
| Display | 2.4” TFT color screen |
| Portal | Mini USB |
| Power Supply |
5# AA battery, Rechargeable battery, offer power supply with USB line |
| Working Time | Standby>15 Hours ,Test>8 Hours |
| Dimension(LxWxH) | 210x 120x 55 mm (including protective case) |
| Weight | About 450g |
| Storage Temperature | -20~ +60 ℃, < 90% RH |
| Working Temperature | -10 ~ +50 ℃, < 90% RH |
Accessories
| Description | Qty | Remark |
| Host | 1 | |
| Jelly Anti-shock Sleeve | 1 | |
| USB Cable | 1 | Mini USB |
| 3M Patch Cord | 1 | FC/PC-SC/PC |
| Flange Connector | 2 | SC-SC,FC-SC |
| Battery | 3 | |
| Charger | 1 | 5V/2A |
| Clean Cotton Swab | 1 | Package |
| Soft bag | 1 | |
| User Manual | 1 | |
| Pass Certificate | 1 |
