EB-53 Rock Breaker Top Type Hydraulic Hammer for 2.5-4.5 tons Excavator Spare Parts
Price:
US $2500 / Piece
MOQ:
1 Set
Delivery Time:
1-7 Working Days
Brand:
Huilian
Product Description

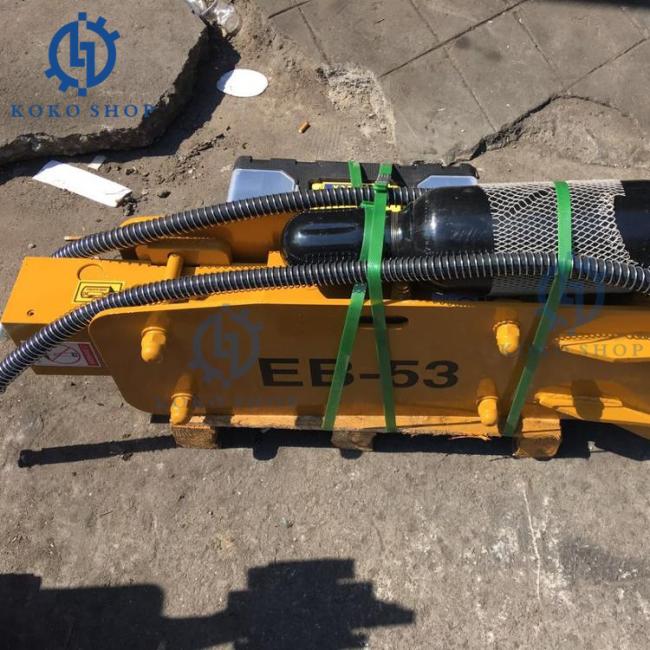

EB-53 Rock Breaker Top Type Hydraulic Hammer for 2.5-4.5 tons Excavator Spare Parts
Product Overview
| Style | Hydraulic Breaker Hammer |
| Product Name | EB53 Rock Breaker |
| Suitable Excavator | 2.5-4.5 tons |
| AppliCATEEEEEEEEEEEEEEion | FURUKAWA SOOSAN Rock Breaker |
| Chisel Diameter | 53 |
| CertifiCATEEEEEEEEEEEEEEion | CE |
| Suitable | EB53 Hammer |
| Type | Top Breaker Hammer |
| Feature | Strong Crackdown,Stable Performance,Low Failure Rate |
Details Images
| MODEL | Chisel Diameter | Required Oil Flow | Operating Pressure | Impact Rate | Carrier Weight | Operating Weight |
| NO. | Mm | L/min | Bar | Bpm | Ton | Kg Side |
| EB45 | Φ45 | 20-40 | 90-120 | 700-1200 | 1.2-3 | 99 |
| EB53 | Φ53 | 25-50 | 90-120 | 600-1100 | 2.5-4.5 | 132 |
| EB68 | Φ68 | 40-70 | 110-140 | 500-900 | 4--7 | 275 |
| EB75 | Φ75 | 50-90 | 120-150 | 400-800 | 6--9 | 407 |
| EB85 | Φ85 | 60-100 | 130-160 | 400-800 | 7--14 | 561 |
| EB100 | Φ100 | 80-110 | 150-170 | 350-700 | 11--16 | 842 |
| EB135 | Φ135 | 100-150 | 160-180 | 350-600 | 16-21 | 1609 |
| EB140 | Φ140 | 120-180 | 160-180 | 350-500 | 18-26 | 1950 |
| EB155 | Φ155 | 120-200 | 160-180 | 300-450 | 28-35 | 2655 |
| EB165 | Φ165 | 150-200 | 180-200 | 200-350 | 30-45 | 2915 |
| EB175 | Φ175 | 160-220 | 220-260 | 200-350 | 40-55 | 4167 |
| EB180 | Φ180 | 170-220 | 240-280 | 200-300 | 45-55 | 4336 |
| EB185 | Φ185 | 170-230 | 240-280 | 200-250 | 50-60 | 4482 |
| EB190 | Φ190 | 170-230 | 240-300 | 180-200 | 55-65 | 4868 |
More Hydraulic Breaker Type
| Side Type | 1. Overall length shorter |
| 2. Hook back things conveniently | |
| 3. Maintenance-free | |
| Top Type | 1. Easy to loCATEEEEEEEEEEEEEEe and control |
| 2. More conducive to excavator | |
| 3. Weight lighter, lower risk of broken drill rod | |
| Box Type/ Silence Type | 1. Reduce noise |
| 2. Protect the environment |
More Available Brand Hydraulic Hammer Model
| FURUKAWA | HB10G,HB15G,HB20G,HB30G,HB40G,HB50G |
| F1,F2,F3,F4,F5,F6,F9,F12,F19,F22,F27,F35,F45etc | |
| ATLAS COPCO | MB700,MB750,MB800,MB1000,MB1200,MB1500,MB1600,MB1700, |
| HB2000,HB2200,HB2500,HB3000,HB3600,HB4200,etc | |
| RAMMER | S23,S24,S25,S26,E63,E64,E66,E68,G90,G100,etc |
| INDECO | MES2500,MES3000,MES3500,MES4000,etc |
| TOKU/TOYO | TNB 5E6E7E8E10E,TNB150151,TNB310,THBB301,THBB401,THBB801, |
| OKADA/NPK | THBB1400,THBB2000/OUB310,OUB312,OUB316,OUB318,UB11/H7X,H10X, |
| H10XB,H12X,H16X,H20X,E210,E212,etc | |
| DAEMO/MKB | B140,B210,B230,B300,B360,B450/MKB1400,MKB1500,MKB1600,MKB1700,etc |
| EVERDIGM | RHB305,RHB313,RHB320,RHB321,RHB323,RHB324,RHB325,RHB326,etc |
| BLT/EDT | BLT80-1,BLT80-2,BLT81,BLT100/EDT2000,EDT2200,EDT3000,EDT3200,EDT3500,etc |
| KWANGLIM | SG200,SG300,SG350,SG400,SG600,SG800,SG1800,SG2000,SG2100,SG2500, |
| SG2800,SG3300,SG4000,SG1200 | |
| MONTABERT | SC28,BRP130,BRP140,BRP150,V32,V43,V45,V53,V55,V1200,v1600,V2500, |
| BRH125,BRH270,BRH501,BRH570,BRH250,BRH625,BRH750,BRH1100 | |
| KRUPP | HM300,HM301,HM303,HM350,HM400,HM401,HM550,HM553,HM555,HM560,HM600, |
| HM601,HM711,HM720,HM800,HM9601,HM1300,HM1303,HM1500,HM1800,HM2000, | |
| HM2100,HM2300,HM2500,HM2600,AT20,AT70,AT120,AT170 | |
| RAMMER | M300,M600,M700,M900,XL1000,,XL1300,XL1600,XL1700,XL1900,,XL1700,XL2600 |
| SAGA/MSB | SAGA20,SAGA30,SAGA40,SAGA45,SAGA50,SAGA55,SAGA80,SAGA100,SAGA120, |
| SAGA200,SAGA210,SAGA250,SAGA270,SAGA300,SAGA330,SAGA430,SAGA500, | |
| SAGA180,MSB200,MSB220,MSB225,MSB250,MSB300,MSB400,MSB450,MSB500, | |
| MSB550,MSB600,MSB700,MSB800,MSB35AT,MSB900,MSB45AT |

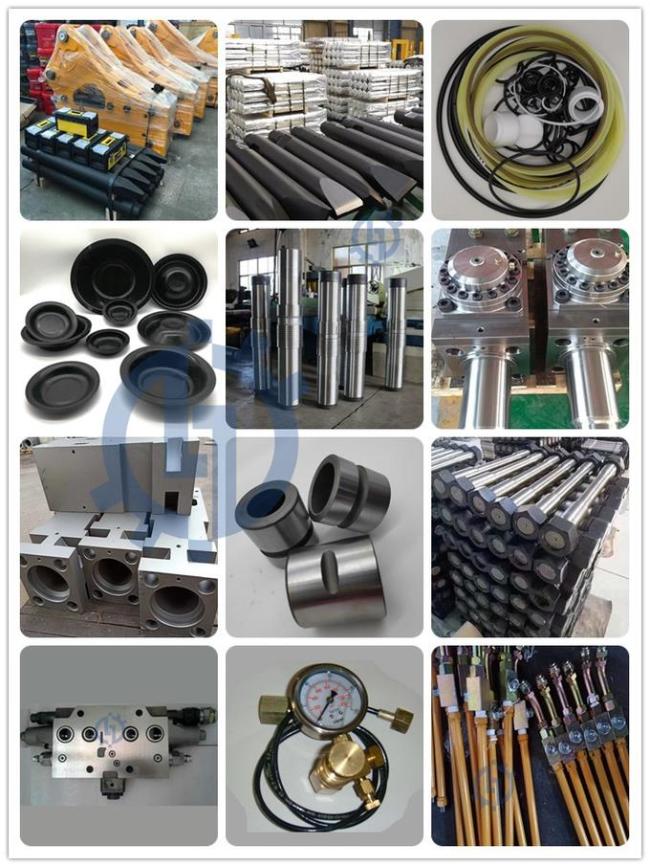

We can provide other breaker items
| Cylinder | Main Body | Back Head | Hammer Parts | Charging Valve | Seal Retainer |
| Valve Plug | Piston | Adapter | Socket Plug | Valve | Valve Sleeve |
| Rubber Plug | Grease Nipple | Rod Pin | Front Head | Stop Pin | Front Head Pin |
| Tool Bush | Thrust Bush | Upper Bush | Ring Bush | Front Cover | Lower Bush |
| Side Rod | Chisel | Washer | Rod Moil Point | Through Bolt | Hex Nut |
| Accumulator Cover | Valve Adjuster | Accumulator | Air Check Valve | Accumulator Body | Socket Bolt |
| Gas Seal | Diaphragm | Seal Kit | Charging V/V | O-Ring Seal | Step Seal |
| Side Bolt | Dust Seal | U-Packing | Buffer Seal | Back-up ring | Upper Cushion |
| B-3way valve assembly | Tool Set | N2 Gas Charging Set | Down Cushion | N2 Gas Cylinder |

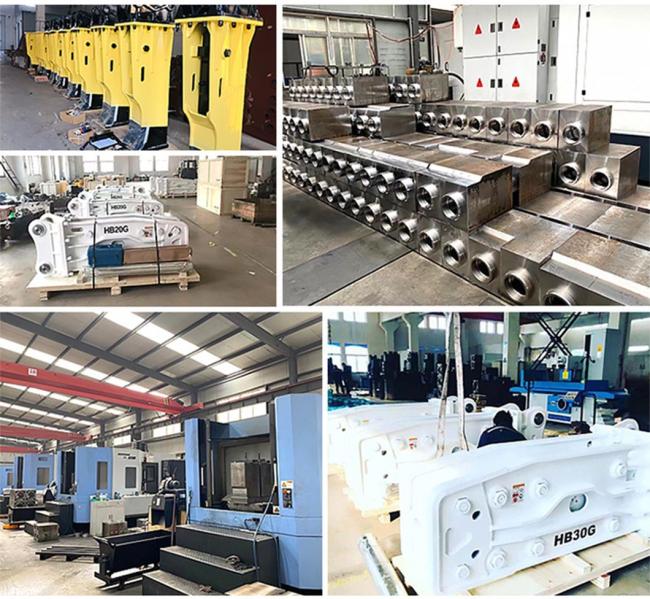

Company Profie
Huilian Machine Equipment Co., Ltd.( KOKO SHOP)
Our company insist on "do strong, do big, do best, doing long" as the goal, with the "coagulation hearts
meet force, to create first-class, customer first "spirit of enterprise, in line with the" product quality,
management efficiency,
customer first, obey them about "the quality policy, we will, as always, wholeheartedly for the new and old
customers to provide quality and cheap products and satisfactory service!
