Edt3000 Edt3200 Edt3500 Edt4500 Edt6000f Edt8000 Breaking Hammer Chisel 140mm 42CrMo Drill Rod
Edt3000 Edt3200 Edt3500 Edt4500 Edt6000f Edt8000 Breaking Hammer 140mm Chisel
42CrMo Drill Rod
|
How to Choose Chisel
Moil PoMoil Point Chiselint Chisel
Wedge type Chisel
Blunt type ChiselBlunt type Chisel
Cone type Chisel
|
Show your Soosan Chisel Dedails as below
| Model No. | EDT100 | EDT200 | EDT300 | EDT400 | EDT430 | EDT450 | EDT800 | EDT1600 | EDT2000 |
| tool diameter | 40mm | 45mm | 53mm | 68mm | 75mm | 85mm | 100mm | 125mm | 135mm |
| carrier weight | 0.8-2.5t | 1.2-3t | 2.5-4.5t | 4-7t | 6-9t | 7-14t | 10-15t | 15-18t | 18-26t |
| Model No. | EDT2000F | EDT2200 | EDT2200a | EDT3000 | EDT3200 | EDT3500F | EDT4500 | EDT6000f | EDT8000 |
| tool diameter | 135mm | 140mm | 140mm | 150mm | 155mm | 165mm | 175mm | 185mm | 195mm |
| carrier weight | 18-26t | 18-26t | 18-26t | 27-35t | 28-35t | 30-40t | 35-40t | 40-55t | 45-80t |
| Type/Parameter Size(mm) | Size(mm) | Weight(kq) | Material | Suitable tvpe of breaker |
| Moil/Wegde-68/0.7 | Ф68*700 | 16 | 42Crmo | sb40 |
| Moil/Wegde-75/0.72 | Ф75*720 | 21 | 42Crmo | sb43 |
| Moil/Wegde-85/0.9 | Ф850*900 | 29 | 42Crmo | sb45 |
| Moil/Wegde-100/1 | Ф100*1000 | 55 | 42Crmo | sb50 |
| Moil/Wegde-135/1.3 | Ф135*1300 | 127 | 42Crmo | GB8AT/20G/SB81N |
| Moil/Wegde-140/1.3 | Ф140*1300 | 134 | 42Crmo | SB81/GB8T/FX140 |
| Moil/Wegde-150/1.4 | Ф150*1400 | 155 | 42Crmo | SB100/30G/RHB330 |
| Moil/Wegde-155/1.5 | Ф155*1500 | 183 | 42Crmo | SB121/F37 |
| Moil/Wegde-165/1.6 | Ф165*1600 | 220 | 42Crmo | SB131 |
| Moil/Wegde-175/1.6 | Ф175*1600 | 260 | 42Crmo | SB151 |
| Moil/Wegde-185/1.7 | Ф185*1700 | 308 | 42Crmo | SB161 |
We have hydraulic breaker chisel for following items
| Krupp | HM45,HM50/60,HM60/75,HM85,HM130/135,HM170/185,HM200,HM300/301, |
| HM400/401,HM550,HM560CS,HM580,HM600/601,HM700 | |
| RAMMER | S21,S20/22,ROX100,S23,S25,S26/,ROX400,S29,S52/,ROX700, |
| S54/700,S55,S56/800,S82/1400 | |
| N.P.K | H1XA,H2XA,H3XA,H4X,H6XA,H7X,H8XA,H10XA |
| INDECO | MES350,HB5,MES553,MES621,MES1200,HB12,HB19,MES1800,HB27,MES2500 |
| MONTABERT | BRH30,BRH40,BRH45,BRH60,BRH76/91,BRP100,BRP130,BRP125,BRH250, |
| RH501,BRH620, BRH625,BRH750,BRV32 | |
| STANLEY | MB125,MB250/350,MB550,MB656,MB800,MB1550, |
| MB1950/1975,MB30EX,MB40EX | |
| FURUKAWA | HB5G,HB8G,HB10G,HB15G,HB20G,HB30G,HB40G,HB50G, F12,F19,F22,F22 |
| F27,F35,F45,F70 | |
| TOKU/TOYO | TNB1E,TNB2E,TNB4E,TNB6E,TNB7E,TNB14E,TNB22EA,THBB101, |
| OKADA | OUB301,OUB302,OUB303,OUB305,OUB308,OUB310,OUB312,OUB316,OUB318, |
| SOOSAN | SB10,SB20,SB30,SB35,SB40,SB43,SB45,SB50,SB60,SB70,SB81, |
| SB100,SB121,SB130,SB151 | |
| KWANGLIM | SG200,SG300,KSG350,SG400,SG600,SG800,SG1200,SG1800,SG2100,SG2500, |
| DAEMO | DMB03,DMB04,DMB104/DMB210,S150-V,S300-V,S500-V,S700-V,S900-V,S1300-V, |
| HANWOO | RHB301,RHB302,RHB303,RHB304,RHB305,RHB306,RHB308,RHB309,RHB313, |
| MSB | SAGA120,SAGA180, SAGA200,SAGA300,SAGA350 |
| MS200,MS250, MS300,MS550,MS600, MS700,MS750 |

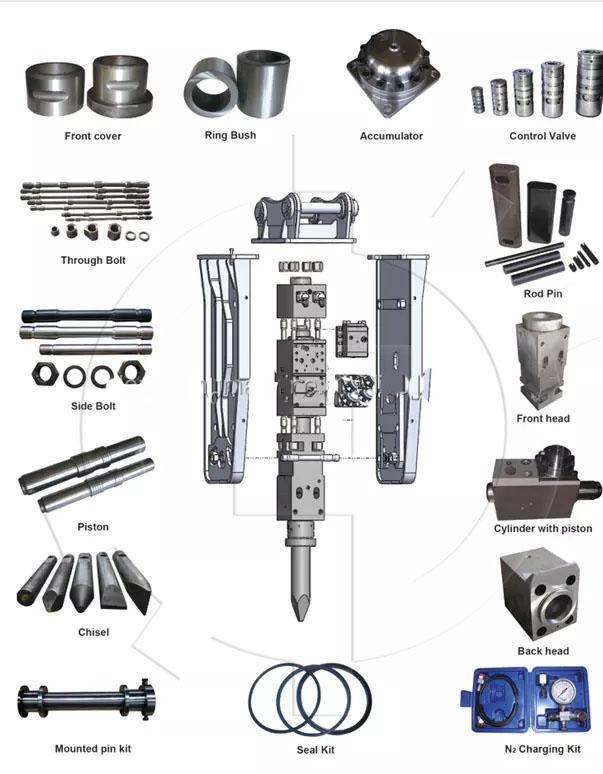

Hammer Parts Rang
| Hammer Parts | Main Body | Back Head | Charging Valve | Cylinder | Seal Retainer |
| Socket Plug | Piston | Adapter | Valve | Valve Plug | Valve Sleeve |
| Front Head | Grease Nipple | Rod Pin | Stop Pin | Rubber Plug | Front Head Pin |
| Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush | Lower Bush |
| Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod | Hex Nut |
| Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover | Socket Bolt |
| Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal | Step Seal |
| Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt | Upper Cushion |
| Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assy |
Company Show
Hongkong H&F Eng Machinery Co.,Limited (Huilian Machinery) Specialized in Hydraulic Breaker/ Hammer Repair Parts.
Hammer Parts Suitable for Atlas Copco, Alpha, Bretec, BTI, CATEEEEEEEEEEEEEE, CP, Daemo DMB Alicon, D&A, Doosan, EDT, Epiroc,
Everdigm, Fine, Furukawa, General GB, Hammeroc HR, Hyundai HDB, Indeco HP MES, JCB, Kent, KCB, Komac,
Komatsu JTHB, JKHB, Korota, Krupp, Kwanglim, Konan, Montabert, MSB, MTB, Noah, NPK, Okada, OKB, Omal, Poqutec,
Powerking, Promove, Rammer, RB Hammer, RBI, Rhino, , Soosan, Stanley, Teisaku, T&H, Toku, Toku, Toyo, UBTECH, EC, etc.
