Montabert V-32 V-43 V-45 V-52 V-53 V-55 V-65 Durable Life Hydraulic Hammer Pistons
Montabert V-32 V-43 V-45 V-52 V-53 V-55 V-65 Durable Life Hydraulic Hammer Pistons
| Part Name | Hammer Piston |
| Part Model | V-32 V-43 V-45 V-52 V-53 V-55 V-65 |
| Material | 40CRMO |
| Size | Standard |
| Hardness | Hard Enough |
| Feature | Durable |
| AppliCATEEEEEEEEEEEEEEion | Hydraulic Rock Breaker Hammer |
| OEM | Acceptable |
| MOQ | 1 PCS |
| Warranty | 3 Months |
| Delivery Time | 2-7 Days |
Related Models
| SC-6 | SC-50 | BRP-100 | BRH-91 | BRH-750 | V-43 | V-1800 |
| SC-8 | BRP-30 | BRP-130 | BRH-125 | BRH-1100 | V-45 | V-2500 |
| SC-12 | BRP-45 | BRP-140 | BRH-250 | M-125SX | V-52 | V-4500 |
| SC-16 | BRP-50 | BRP-150 | BRH-270 | M-300 | V-53 | XL-100 |
| SC-22 | BRP-60 | BRH-40 | BRH-501 | M-600 | V-55 | XL-1300 |
| SC-28 | BRP-70 | BRH-75 | BRH-570 | M-700 | V-65 | XL-1700 |
| SC-36 | BRP-85 | BRH-76 | BRH-620 | M-900 | V-1200 | XL-1900 |
| SC-42 | BPR-95 | BRH-90 | BRH-625 | V-32 | V-1600 | XL-2600 |
Breaker Parts Hydraulic Hammer Percussion Piston
| Model number | Total length | Head length | Total length of tank | Outside diameter of strike head | Large diameter of oil tank | Piston ring | Tank length one | Tank length two |
| GB2T | 480 | 195 | 123 | 70 | 77 | 68 | 55 | 25 |
| GB8T | 790 | 324 | 184 | 140 | 150.5 | 138 | 96 | 40 |
| GB8AT | 732/734 | 307/308 | 184 | 140 | 150.5 | 138 | 100/96 | 35 |
| SB20 | 407 | 163 | 110 | 45 | 51 | 43.5 | 44 | 27 |
| SB40(GT30) | 485 | 189 | 130 | 70 | 77 | 68 | 59 | 31 |
| SB43 | 591 | 251 | 158 | 75 | 82.5 | 73 | 70 | 39 |
| SB45 | 660 | 284 | 165 | 85 | 92.5/92 | 83.5 | 81 | 45 |
| SB50 | 679/688 | 275/284 | 187 | 100 | 108.5 | 98 | 89/79 | 45 |
| SB60 | 738 | 339 | 185 | 125 | 135 | 123.5 | 85 | 40 |
| SB81 | 790 | 324 | 184 | 140 | 150.5 | 138 | 96 | 30 |
| SB81N | 778 | 317/321 | 197/191 | 135 | 146 | 133 | 84 | 44 |
| SB100 | 820/825 | 355/357 | 225/226 | 150 | 162.5 | 147/145 | 103/104 | 47 |
| SB121 | 832 | 385 | 216 | 160 | 173.5 | 157 | 110 | 54 |
| SB131/988C length | 915/988 | 413/411 | 214/244 | 170 | 184.5 | 167 | 109/110 | 59/70 |
| SB140 | 1070 | 433 | 261 | 175 | 190 | 172 | 130 | 90 |
| SB151 | 1120 | 518 | 267 | 180 | 195.5 | 177 | 142 | 61 |
Our Main Hydraulic Breaker Spare Parts:
| Hammer Parts | Main Body | Back Head | Charging Valve | Cylinder |
| Socket Plug | Piston | Adapter | Valve | Valve Plug |
| Front Head | Grease Nipple | Rod Pin | Stop Pin | Rubber Plug |
| Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush |
| Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod |
| Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover |
| Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal |
| Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt |
| Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assy |
| Seal Retainer | Valve Sleeve | Front Head Pin | Lower Bush | Hex Nut |
| Socket Bolt | Step Seal | Upper Cushion | Rubber Pad | Shock Absorber |
If you don't know piston model, You can measure piston size like this
About us

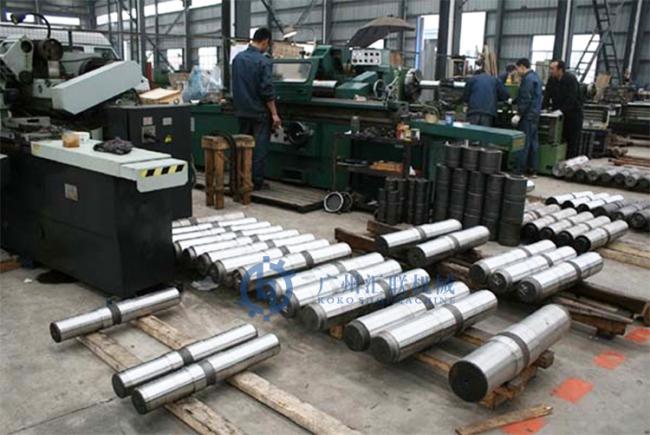

Koko Shop Machine Co., Ltd specializing in manufacturing the hydraulic breaker and hydraulic breaker spare parts, such as hydraulic breaker chisel, hydraulic breaker piston, hydraulic breaker front head & back head, hydraulic breaker through bolt & side bolt, hydraulic breaker chisel pin, stop pin, outer bush, (lower bush, front bush), inner bush, (upper bush, thrust bush), hydraulic cylinder and so on. We have good reputation by our high quality products, competitive price and adequate service at home and abroad for long years.
