42CrMo Steel Alicon B250 B450 Hydraulic Breaker Through Bolt Side Bolt For Daemo Hammer
Price:
Negotiable
MOQ:
1 Pieces
Delivery Time:
1-7days
Brand:
Huilian
Product Description

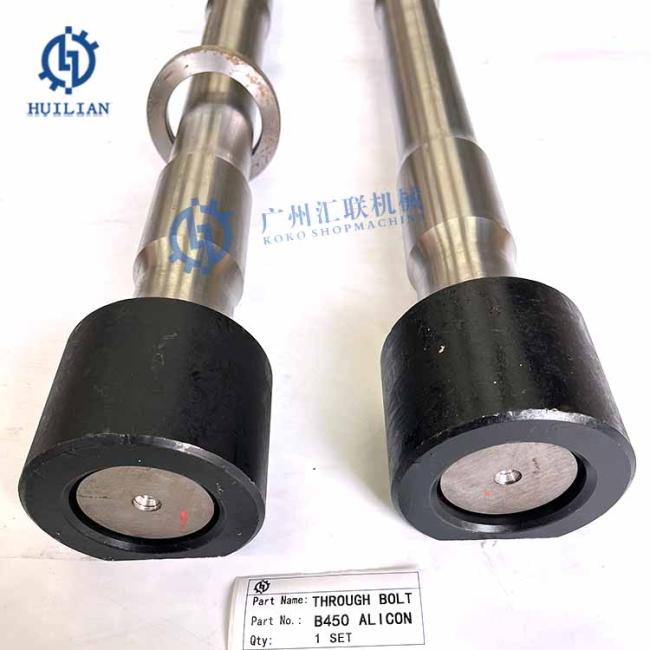

42CrMo Steel Alicon B250 B450 Hydraulic Breaker Through Bolt Side Bolt For Daemo Hammer
| Part Name | Through Bolt |
| Part Model | Alicon B450 |
| Material | 42CrMo |
| Size | Standard |
| Hardness | Hard Enough |
| Feature | Durable |
| AppliCATEEEEEEEEEEEEEEion | Hydraulic Rock Breaker Hammer |
| OEM | Acceptable |
| MOQ | 1 Pieces |
| Warranty | 3-6 Months |
| Delivery Time | 1-7 Days |
More Daemo Hammer Models We Can Offer
| Daemo | S700, S900, S1300, S1800, S2200-II, S2300, S2500, S5000, DMB10, DMB20, DMB30, DMB40, |
| DMB50, DMB70, DMB90, DMB140, DMB180, DMB210, DMB230, DMB250, DMB450, DMB800, | |
| ALICON-B10, ALICON-B20, ALICON-B30, ALICON-B40, ALICON-B50, ALICON-B70, ALICON-B90, ALICON-B140, | |
| ALICON-B180, ALICON-B210, ALICON-B230, ALICON-B250, ALICON-B450, ALICON-B600, ALICON-B800, S3000, S3600, DMB300, DMB360, ALICON-B300, ALICON-B360 |
We Can Provide Following Hydraulic Breaker Parts
| Hammer Parts | Main Body | Back Head | Charging Valve | Cylinder |
| Socket Plug | Piston | Adapter | Valve | Valve Plug |
| Front Head | Grease Nipple | Rod Pin | Stop Pin | Rubber Plug |
| Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush |
| Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod |
| Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover |
| Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal |
| Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt |
| Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assy |
| Seal Retainer | Valve Sleeve | Front Head Pin | Lower Bush | Hex Nut |
| Socket Bolt | Step Seal | Upper Cushion | Rubber Pad | Shock Absorber |
How to choose the right through bolt?
| Hydraulic breaker through bolt | Hydraulic breaker side bolt | ||
| FURUKAWA HB20G | 42X955MM | FURUKAWA HB20G | 48X447MM |
| FURUKAWA F22 | 42X960MM | FURUKAWA F22 | |
| SOOSANI SB81N | 46X1015MM | SOOSAN SB81 | |
| SOOSAN SB81 | 52X1050MM | GBGB8AT | |
| GB8AT | 44X990MM | GB GB220E | |
| GB220E | 42X967MM | TOKU TNB150 | 39X428MM |
| TOKU TNB 150 | 42X1012MM | TEISAKU TR210 | 42X415MM |
| TEISAKU TR210 | 40X967MM | EVERDIGM EH322 | 42X420MM |
| EVERDIGM EH322 | 42X1160MM | TOYO THBB1401 | 42X380MM |
| TOYO THBB1401 | 39X1000MM | KWANGLIM SG2100 | 42X423MM |
| KWANGLIM SG2100 | 40X1008MM | MKB MKB 1500 | 42X420MM |
| MKB MKB 1500 | 39X1030MM | DAEMO DMB2200 | 42X405MM |
| DAEMO DMB2200 | 42X1090MM | SOOSAN SB81N | 48X421MM |
| SOOSAN SB100 | 56X1125MM | SOOSAN SB100 | 48X466MM |
| FURUKAWA HB30G | 48X1050MM | FURUKAWA HB30G | 48X510MM |
| SOOSAN SB40 | 27X575MM | SOOSAN SB40 | 27X230MM |
| GB2T | 27X585MM | GB2T | 30X260MM |
| GB5T | 39X885MM | GB5T | 30X330MM |
| SOOSAN SB50 | 39X885MM | SOOSAN SB50 | 36X312MM |
| SOOSAN SB121 | 56X1160MM | SOOSAN SB50 | 36X330MM |
We can supply the following models of rock breaker hammer through bolt/side bolt:
| Krupp | HM45,HM50/60,HM60/75,HM85,HM130/135,HM170/185,HM200,HM300/301, |
| HM400/401,HM550,HM560CS,HM580,HM600/601,HM700 | |
| RAMMER | S21,S20/22,ROX100,S23,S25,S26/,ROX400,S29,S52/,ROX700, |
| S54/700,S55,S56/800,S82/1400 | |
| N.P.K | H1XA,H2XA,H3XA,H4X,H6XA,H7X,H8XA,H10XA |
| INDECO | MES350,HB5,MES553,MES621,MES1200,HB12,HB19,MES1800,HB27,MES2500 |
| MONTABERT | BRH30,BRH40,BRH45,BRH60,BRH76/91,BRP100,BRP130,BRP125,BRH250, |
| RH501,BRH620, BRH625,BRH750,BRV32 | |
| STANLEY | MB125,MB250/350,MB550,MB656,MB800,MB1550, |
| MB1950/1975,MB30EX,MB40EX | |
| FURUKAWA | HB05R,HB1G,HB2G,HB3G,HB5G,HB8G,HB10G,HB15G,HB20G |
| HB30G,HB40G,HB50G, | |
| TOKU/TOYO | TNB1E,TNB2E,TNB4E,TNB6E,TNB7E,TNB14E,TNB22EA,THBB101, |
| OKADA | OUB301,OUB302,OUB303,OUB305,OUB308,OUB310,OUB312,OUB316,OUB318, |
| SOOSAN | SB10,SB20,SB30,SB35,SB40,SB43,SB45,SB50,SB60,SB70,SB81, |
| SB100,SB121,SB130,SB151 | |
| KWANGLIM | SG200,SG300,KSG350,SG400,SG600,SG800,SG1200,SG1800,SG2100,SG2500, |
| DAEMO | DMB03,DMB04,DMB06,S150-V,S300-V,S500-V,S700-V,S900-V,S1300-V,S1800-V |
| HANWOO | RHB301,RHB302,RHB303,RHB304,RHB305,RHB306,RHB308,RHB309,RHB313, |
| DAINONG | D30,D50,D60,D70/90,D110,D130,D160,T180,K20 |
| K25,K30,K50,K80,K120,K55S,K40S, | |
| Everdigm | EHB01, EHB02, EHB03, EHB04, EHB05, EHB06, EHB10, EHB13, EHB17, EHB20, EH23, EHB25, EHB30, |
| EHB23, EHB40, EHB50 |
