CATEEEEE 217-9894 Excavator Hydraulic Cylinder Seal Kit For CATEEEEE CATEEEEEerpilar 228
CATEEEEEEEEEE 217-9894 Excavator Hydraulic Cylinder Seal Kit For CATEEEEEEEEEE CATEEEEEEEEEEerpilar 228
Descrpitions:
CATEEEEEEEEEE 217-9894 Excavator Hydraulic Cylinder Seal Kit For CATEEEEEEEEEE CATEEEEEEEEEEerpilar 228
A hydraulic cylinder, also known as a linear hydraulic motor, is a mechanical actuator that converts hydraulic energy into linear motion. It is a crucial component in various types of machinery, including excavators, where it is used to power the movement of the boom, arm, and bucket.

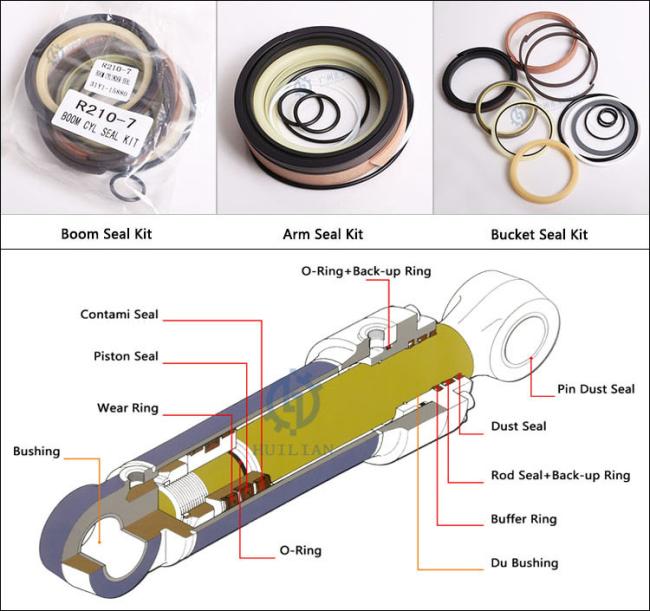

The main components of a hydraulic cylinder include:
1.Cylinder barrel: The cylindrical housing that contains the piston and other internal components. It is typically made of steel or other strong materials to withstand high pressures and external forces.
2.Piston: A cylindrical component that moves back and forth inside the cylinder barrel, driven by hydraulic pressure. The piston separates the cylinder into two chambers: the rod side and the cap side.
3.Piston rod: A shaft connected to the piston that extends out of the cylinder barrel and transfers the linear motion to the machine's moving parts. The piston rod is usually coated with a protective layer to prevent corrosion and wear.
4.Seals: Various seals are used in the cylinder to prevent fluid leakage and keep contaminants out. These may include rod seals, wipers, and piston seals.
|
.
Related Number:
| Pos. | Part No | Qty | Parts name |
| 1 | 6E-1344 | [1] | CYLINDER AS |
| 2 | 173-9683 M | [1] | BOLT (M30X3.5X90-MM) |
| 3 | 3S-7023 | [1] | WASHER (34X57X6-MM THK) |
| 4 | 6E-1131 | [1] | PISTON |
| 5 | 6E-1346 | [1] | ROD AS |
| 6 | 175-7896 J | [1] | SEAL-O-RING |
| 7 | 6J-5731 J | [1] | RING-BACKUP |
| 8 | 148-2593 | [1] | HEAD |
| 9 | 6J-5733 J | [1] | RING-WEAR |
| 10 | 6J-1972 J | [1] | SEAL AS |
| (INCLUDES EXPANDER RING & SEAL) | |||
| 11 | 229-9382 J | [1] | SEAL-WIPER |
| 12 | 167-2304 J | [1] | SEAL-U-CUP |
| 13 | 167-2195 J | [1] | SEAL AS-BUFFER |
| (INCLUDES BUFFER SEAL & BACKUP RING) | |||
| 14 | 4T-5613 J | [1] | RING-WEAR |
| AVAILABLE REPAIR KIT(S): | |||
| 185-7667 AJ | [1] | KIT-SEAL | |
| A | NOT PART OF THIS GROUP | ||
| J | KIT MARKED J INCLUDES PART(S) MARKED J | ||
| M | METRIC PART |
Some SpecifiCATEEEEEEEEEEion Of Komatsu Wheel Loaders Gearbox Seal Ring:
| 55*50*3 | 154*160*2.8 | 398.4*392*2.8 | 290*283.95*2.8 |
| 50*45*3 | 109.3*116.5*2.8 | 313.5*307.1*2.8 | 329*323*2.8 |
| 110*101*3 | 140*132*2.8 | 199.1*192.7*2.8 | 340*334*2.8 |
| 100*92*3 | 134*140*2.8 | 205*199*2.8 | 360*353*3.3 |
| 150*136*3.3 | 170*164*2.8 | 180*186*2.8 | 380*374*2.8 |
| 64.5*57.5*3.3 | 159.5*152.3*2.8 | 215*209*2.8 | 390*384*2.8 |
| 41*36*3.3 | 154*160*2.8 | 248*241*2.8 | 395*389*2.8 |
| 108*96*2 | 162*154.6*2.8 | 211.8*219*2.8 | 396*404*3.8 |
| 137*125*2 | 333*326.6*2.85 | 220*214*2.8 | 469*461*3.8 |
| 163*151*2 | 175*169*2.8 | 270*264*2.8 | 425*417*3.8 |
| 135*129*2.8 | 155*161*2.8 | 245*239*2.8 | 429*421*3.8 |
| 96.5*103.5*2.8 | 170*176.5*2.8 | 285*279*2.8 | 447*455*3.8 |
| 235*241.09*2.8 | 176*168.8*2.8 | 392*400*3.8 | 266*254*3.7 |
| 265*259*2.8 | 145*138*2.8 | 469*461*3.8 | 285*273*3.55 |
| 102*108*2.8 | 184*190*2.8 | 250*244*2.8 | 199*189*5.05 |
