Excavator Spare Parts 31Q5-10010 31EG-10010 K3V63DT-1R0R For Hyundai R160LC-3 R160LC-9 R180LC-9

Price Negotiable
Price: Negotiable
MOQ: 1 PCS
Delivery Time: 7-10Days
Brand: Huilian
Product Description

Excavator Spare Parts 31Q5-10010 31EG-10010 K3V63DT-1R0R For Hyundai R160LC-3 R160LC-9 R180LC-9



Product Description

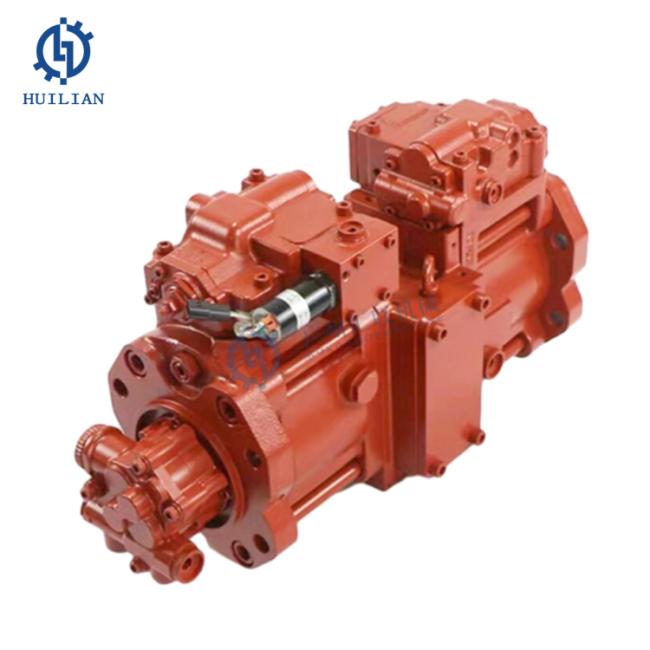

Product Name Excavator Hydraulic Pump
Brand Huilian
Machine model R160LC-3 R160LC-9 R180LC-9
Packing Size 84*38*49
Part number 31Q5-10010 31EG-10010 K3V63DT-1R0R
Pressure Standard, High Pressure

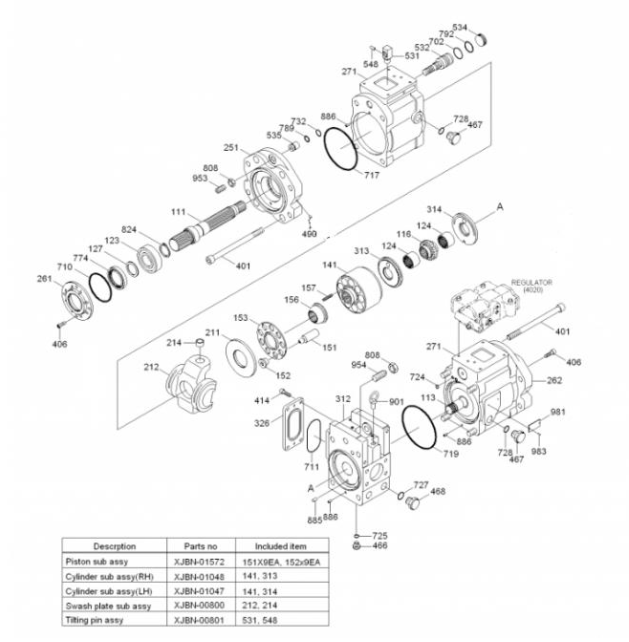

List of spare parts



# Part No Part Name Qty. Price request
* 31Q5-10010 MAIN PUMP 1
*-1 @ FUEL INJECTION PIPE & NOZZLE 1
111 XJBN-00802 SHAFT(F)-DRIVE 1
113 XJBN-00803 SHAFT(R)-DRIVE 1
116 XJBN-00804 GEAR-1ST 1
123 XJBN-00429 BEARING-ROLLER 2
124 XJBN-00805 BEARING-NEEDLE 2
127 XJBN-00806 SPACER-BEARING 4
S141 XJBN-00807 BLOCK-CYLINDER 2
S151 XJBN-00425 PISTON 18
S152 XJBN-01278 SHOE 18
153 XJBN-00808 PLATE-SET 2
156 XJBN-00422 BUSHING-SPHERICAL 2
157 XJBN-00421 SPRING-CYLINDER 18
211 XJBN-00420 PLATE-SHOE 2
S212 XJBN-00419 PLATE-SWASH 2
S214 XJBN-00418 BUSHING-TILTING 2
251 XJBN-00417 SUPPORT 2
261 XJBN-00809 COVER-FR 1
271 XJBN-01046 CASING-PUMP 2
312 XJBN-00812 BLOCK-VALVE 1
S313 XJBN-01045 PLATE(R)-VALVE 1
S314 XJBN-01044 PLATE(L)-VALVE 1
S326 XJBN-00937 COVER 1
401 XJBN-00411 SCREW 8
406 XJBN-00813 SCREW-HEX S H C 8
414 XJBN-00160 SCREW-SOCKET 4
466 XJBN-00030 PLUG 2
467 XJBN-00487 PLUG 4
468 XJBN-00814 PLUG 2
490 XJBN-00032 PLUG 15
S531 XJBN-00815 PIN-TILTING 2
532 XJBN-00407 PISTON-SERVO 2
534 XJBN-00816 STOPPER(L) 2
535 XJBN-00405 STOPPER(S) 2
S548 XJBN-00360 PIN-FEED BACK 2
K702 XJBN-00817 O-RING 2
K710 XJBN-00387 O-RING 1
K711 XJBN-00095 O-RING 1
K717 XJBN-00818 O-RING 2
K719 XJBN-00819 O-RING 2
K724 XJBN-00044 O-RING 18
K725 XJBN-00045 O-RING 2
K727 XJBN-00233 O-RING 2
K728 XJBN-00097 O-RING 4
K732 XJBN-00820 O-RING 2
K774 XJBN-01029 SEAL-OIL 1
K789 XJBN-00476 RING-BACK UP 2
K792 XJBN-00454 RING BACK-UP 2
808 XJBN-00101 NUT-HEX 4
824 XJBN-00821 RING-SNAP 2
885 XJBN-00394 PIN-VALVE PLATE 2
886 XJBN-00054 PIN-SPRING 4
901 XJBN-00104 BOLT-EYE 2
953 XJBN-00105 SCREW-SET 2
954 XJBN-00392 SCREW-SET 2
981 XJBN-00156 NAME PLATE 1
983 XJBN-00455 PIN 2
*-2 @ FUEL INJECTION PIPE & NOZZLE
SEE 4020
1
*-3 @ FUEL INJECTION PIPE & NOZZLE
SEE 4030
1
011 XJBN-01572 PISTON SUB ASSY
SEE ILLUST
2
013 XJBN-01048 CYLINDER SUB ASSY-RH
SEE ILLUST
1
014 XJBN-01047 CYLINDER SUB ASSY-LH
SEE ILLUST
1
030 XJBN-00800 SWASH PLATE SUB ASSY
SEE ILLUST
2
530 XJBN-00801 TILTING PIN SUB ASSY
SEE ILLUST
2
