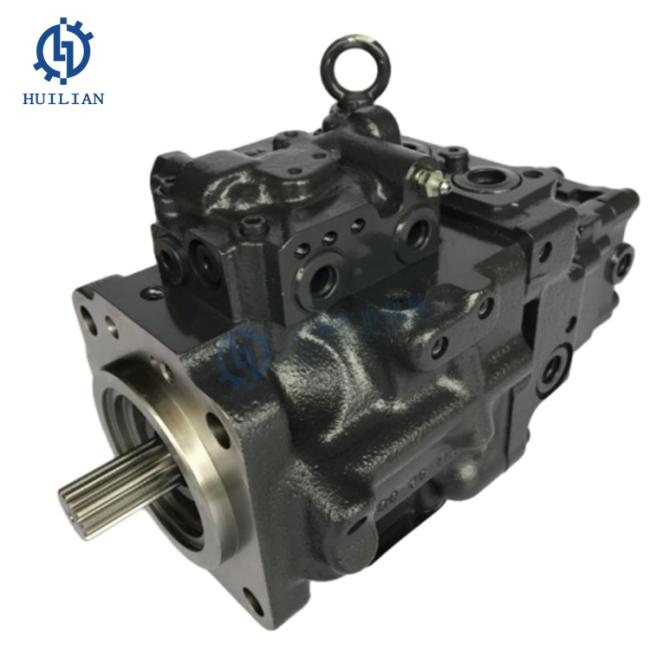

Excavator Main Pump 705-41-03010 705-41-08090 705-41-08010 705-41-03070 Hydraulic Pump For Komatsu PC40-6 PC40-7 PC50UU-2
Excavator Main Pump 705-41-03010 705-41-08090 705-41-08010 705-41-03070 Hydraulic Pump For Komatsu PC40-6 PC40-7 PC50UU-2
Product Description
| Product Name | Excavator Hydraulic Pump |
| Brand | Huilian |
| Machine model | PC35R-8 PC40-5 PC50UU-1 |
| Packing Size | 84*38*49 |
| Part number | 705-41-08010 705-41-03010 705-41-08090 705-41-03070 |
| Pressure | Standard, High Pressure |

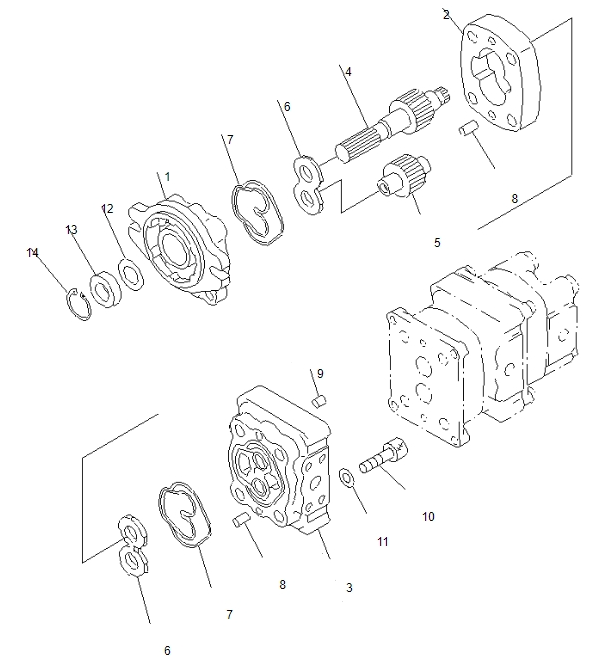

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
| 1 | 705-41-08090 | PUMP ASSY | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210-51A1 TO H0210-53A1 | ||||
| 1 | 705-41-03070 | PUMP ASSY (SBR14) | 1 | |
| 1 | (*705-41-80210) | Bracket | 1 | |
| 1 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 1 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 2 | (*705-40-26011) | cx,GEAR | 1 | |
| 3 | (*705-41-80310) | Carrier | 1 | |
| 3 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 3 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 4 | (*705-40-26342) | GEAR,DRIVE | 1 | |
| 5 | (*705-40-26511) | GEAR,DRIVEN | 1 | |
| 6 | 705-40-80720 | PLATE, SIDE | 2 | |
| 7 | 705-40-80760 | SEAL, RING | 2 | |
| 8 | 04020-00820 | PIN,DOWEL (WELDED) | 4 | |
| 9 | 705-67-01230 | PIN, DOWEL | 2 | |
| 10 | 01252-31275 | Bolt | 4 | |
| 11 | 01643-51232 | WASHER, (WITHOUT EMERGENCY STEERING) | 4 | |
| 12 | 705-40-80870 | Plate | 1 | |
| 13 | 705-40-80810 | Shaft seal | 1 | |
| 14 | 04065-03515 | RING, SNAP | 1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||
| CBXTC-C10-K7V125 | 10 | 3.6 | 6.3 | 1500～2500 | 800～2800 | 90 | 1.5 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L2 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
|||||||
| AP2D-16.2/4.5 | 16.2/4.5 | 22/5 | 25/8 | 800 | 2000 | 3000 | 92/92 | 45.2 | 130.2 | 145 | 5.55 |
| AP2D-16.2/6.5 | 16.2/6.5 | 92/92 | 45.2 | 132 | 147 | 5.6 | |||||
| AP2D-18.2/4.5 | 18.2/4.5 | 92/92 | 46 | 132 | 149 | 5.7 | |||||
| AP2D-18.2/6.5 | 18.2/6.5 | 92/92 | 46 | 133 | 151 | 5.73 | |||||
| AP2D- 20/4.5 | 20/4.5 | 92/92 | 47.2 | 136 | 156 | 5.85 | |||||
| AP2D- 20/6.5 | 20/6.5 | 92/92 | 47.2 | 133 | 151 | 5.8 | |||||
| AP2D- 23/4.5 | 23/4.5 | 92/92 | 50 | 140.5 | 159 | 5.9 | |||||
| AP2D- 23/6.5 | 23/6.5 | 92/92 | 50 | 141.5 | 161 | 5.96 | |||||
| AP2D- 23/9 | 23/9 | 92/92 | 50 | 143 | 163 | 6.1 | |||||
