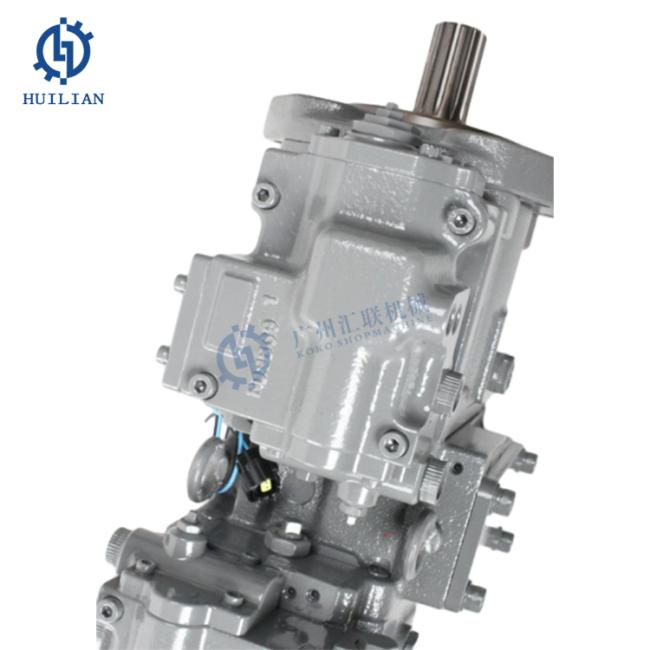

Excavator Spare Parts VOE 14531853 14508514 14508515 Excavator Main Pump For EC160B EC180B EC135B EC140B
Excavator Spare Parts VOE 14531853 14508514 14508515 Excavator Main Pump For EC160B EC180B EC135B EC140B
Product Description
| Product Name | Excavator Hydraulic Pump |
| Brand | Huilian |
| Machine model | EC160B EC180B EC135B EC140B |
| Packing Size | 84*38*49 |
| Part number | VOE 14531853 14508514 14508515 VOE 14514893 14531854 14533644 |
| Pressure | Standard, High Pressure |

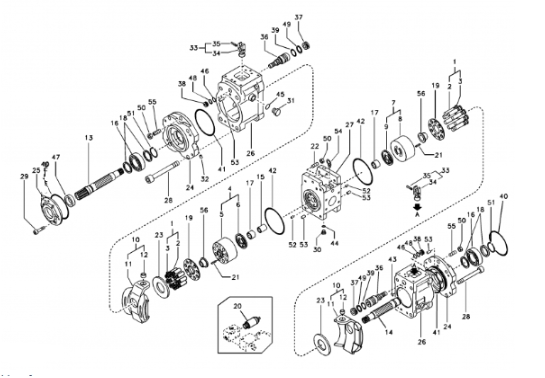

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
| 8278378 | ||||
| VOE 14514893 | Pump SER NO 10001-10755 more |
1 | ||
| VOE 14531854 | Pump SER NO 10756-10939 more |
1 | ||
| VOE 14533644 | Pump SER NO 10940- more |
1 | ||
| 1 | VOE 14508514 | Piston | 2 | |
| 2 | VOE 14508515 | Piston | 9 | |
| 3 | SA 8230-28650 | Seat | 9 | |
| 4 | VOE 14508516 | Cylinder more | 1 | |
| 5 | VOE 14508523 | Block | 1 | |
| 6 | SA 8230-30550 | Plate | 1 | |
| 7 | VOE 14508522 | Cylinder more | 1 | |
| 8 | VOE 14508523 | Block | 1 | |
| 9 | VOE 14502013 | Plate | 1 | |
| 10 | SA 8230-32190 | Plate | 2 | |
| 11 | Plate | 1 | ||
| 12 | VOE 14501609 | Bushing | 1 | |
| 13 | VOE 14508506 | Shaft | 1 | |
| 14 | VOE 14508510 | Shaft | 1 | |
| 15 | SA 8230-28280 | Splined Sleeve | 1 | |
| 16 | VOE 14501607 | Bearing | 2 | |
| 17 | VOE 14508512 | Needle Bearing | 2 | |
| 18 | VOE 14508513 | Spacer more | 4 | |
| 19 | VOE 14508521 | Plate | 2 | |
| 20 | SA 8230-32080 | Valve more | 1 | |
| 21 | SA 8230-09380 | Spring | 18 | |
| 22 | SA 8230-09420 | Bolt | 2 | |
| 23 | SA 8230-09620 | Plate | 2 | |
| 24 | SA 8230-32180 | Support | 2 | |
| 25 | VOE 14508525 | Cover | 1 | |
| 26 | SA 8230-08910 | Pump Housing | 2 | |
| 27 | SA 8230-08920 | Body | 1 | |
| 28 | SA 8230-09390 | Bolt | 8 | |
| 29 | SA 8230-25840 | Bolt | 4 | |
| 30 | SA 9415-11021 | Plug more | 2 | |
| 31 | SA 8230-26050 | Plug | 4 | |
| 32 | SA 7242-11040 | Plug more | 15 | |
| 33 | VOE 14508526 | Bearing spindle | 2 | |
| 34 | VOE 14508527 | Pin | 1 | |
| 35 | Pin | 1 | ||
| 36 | VOE 14508528 | Piston | 2 | |
| 37 | VOE 14511631 | Stop | 2 | |
| 38 | SA 8230-09410 | Stop | 2 | |
| 39 | SA 9511-22030 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14528251 | O-ring SER NO 10756- more |
2 | ||
| 40 | SA 9511-22085 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14534033 | O-ring SER NO 10756- more |
2 | ||
| 41 | SA 9511-22120 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14534032 | O-ring SER NO 10756- more |
2 | ||
| 42 | SA 9511-22115 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14534031 | O-ring SER NO 10756- more |
2 | ||
| 43 | SA 9511-12008 | O-ring SER NO 10001-10755 more |
18 | |
| VOE 14534030 | O-ring SER NO 10756- more |
18 | ||
| 44 | SA 9511-12011 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14534029 | O-ring SER NO 10756- more |
2 | ||
| 45 | SA 9511-12018 | O-ring SER NO 10001-10755 more |
3 | |
| VOE 14534028 | O-ring SER NO 10756- more |
3 | ||
| 46 | SA 9511-12016 | O-ring SER NO 10001-10755 more |
2 | |
| VOE 14528250 | O-ring SER NO 10756- more |
2 | ||
| 47 | SA 8230-26890 | Seal SER NO 10001-10755 more |
1 | |
| VOE 14534027 | Seal SER NO 10756- more |
1 | ||
| 48 | SA 9566-10160 | Ring more | 2 | |
| 49 | SA 9566-20300 | Ring more | 2 | |
| 50 | SA 8230-25620 | Nut | 4 | |
| 51 | SA 8230-25970 | Ring more | 2 | |
| 52 | SA 8230-26400 | Pin | 2 | |
| 53 | SA 7223-00660 | Spring Pin | 4 | |
| 54 | SA 8230-25450 | Eye Bolt | 2 | |
| 55 | SA 8230-26780 | Bolt | 2 | |
| 56 | VOE 14508524 | Bushing | 2 | |
| 100 | VOE 14508612 | Sealing Kit SER NO 10001-10755 more |
1 | |
| VOE 14534508 | Seal SER NO 10756- more |
1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||
| CBTN-E16*/**** | 16.8 | 16 | 20 | 1500～2500 | 600～3000 | 92 | 2.3 |
Model |
Nominal displacement(ml/r) Fore pump/ hind pump |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency(≥%) Fore pump/ hind pump |
L1 | L2 | L | Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
|||||||
| CBHYB-32+3.5/ K3SP36 |
32/3.5 | 25/20 | 28/25 | 1500～2500 | 800～3000 | 92/90 | 118 | 118 | 200 | 6.5 |
Why choose us
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.

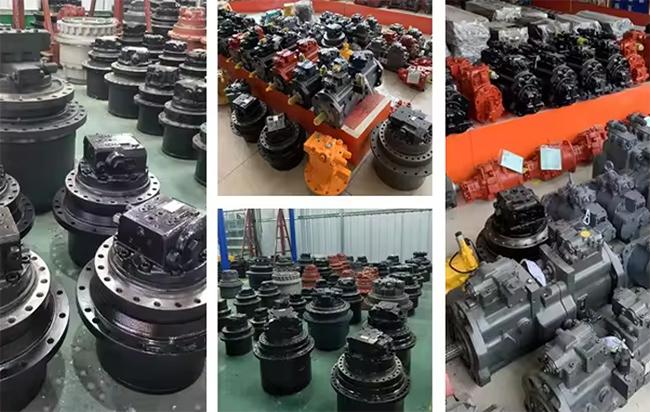

3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
Company Profie
Koko Shop Machine Co., Ltd (EB Seals) is a professional supplier for hydraulic breaker parts and excavator parts and OEM hydraulic seals manufacturer. We specialize in completed seal kits and separate seals for hydraulic breaker and excavator more than Ten years in Guangzhou, China. Koko Shop supply almost all brands breakers' parts like Seal kits, Diaphragm, Piston, Chisel, Wear Bush upper and lower, Rod Pin, Through Bolts, Side Bolts, Control Valve,Front Head, Cylinder, Accumulator, N2 Gas Charging Kit, etc. Also supply almost all brands excavator' parts like hydraulic cylinder boom arm bucket seal kit, hydraulic pump and travel swing motor etc. We insist on high quality parts with genuine and OEM after market replacement parts.
