Excavator Spare Parts 708-23-04014 708-23-04013 708-23-04012 Hydraulic Pump For Komatsu PC100-5 PC120-5 PC130-5
Excavator Spare Parts 708-23-04014 708-23-04013 708-23-04012 Hydraulic Pump For Komatsu PC100-5 PC120-5 PC130-5

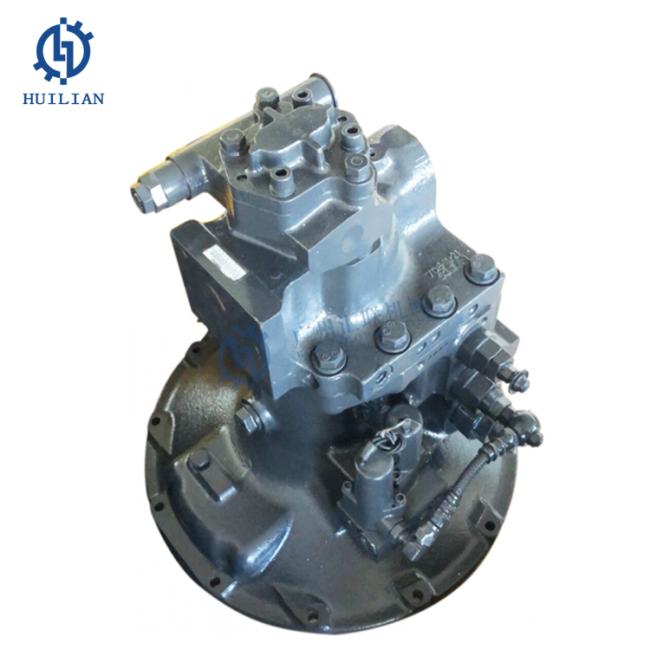

Product Description
| Product Name | Excavator Hydraulic Pump |
| Brand | Huilian |
| Machine model | PC100-5 PC120-5 PC130-5 |
| Packing Size | 84*38*49 |
| Part number | 708-23-04014 708-23-04013 708-23-04012 |
| Pressure | Standard, High Pressure |

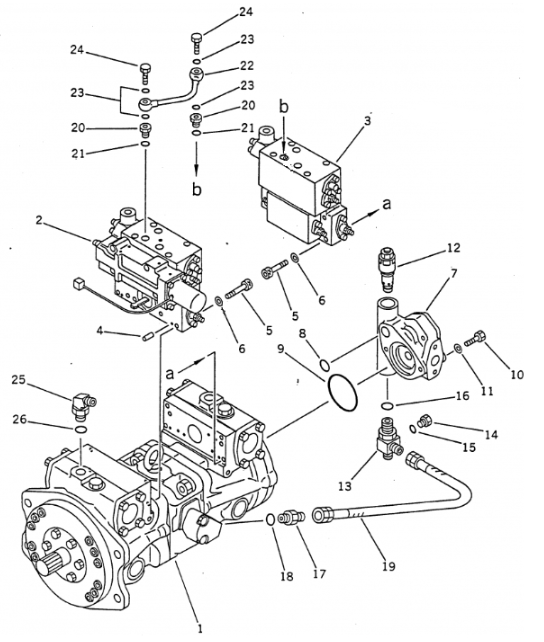

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
| 1 | 708-23-04014 | PUMP ASSY,HYDRAULIC (HPV55+55) | 1 | |
| 1 | 708-23-04113 | PUMP SUB ASSY,HYDRAULIC | 1 | |
| 2 | (708-23-04512) | VALVE ASSY,SERVO? FRONT | 1 | |
| 3 | (708-23-04612) | VALVE ASSY,SERVO? REAR | 1 | |
| 4 | 04020-00616 | PIN,(DOWEL) | 4 | |
| 5 | 708-25-19130 | Bolt | 8 | |
| 6 | 01643-50823 | WASHER,(FOR SHIPPING) | 8 | |
| 7 | (704-24-26401) | PUMP ASSY,(BAR20) | 1 | |
| 8 | 07000-02018 | O-RING,(SEE FIG.1601-29?1602-17) | 1 | |
| 9 | 07000-02075 | O-RING,STEERING OIL FILTER | 1 | |
| 10 | 01010-51085 | BOLT,(FOR 2ND TRAVEL SPEED) (OP) | 3 | |
| 11 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 3 | |
| 12 | (708-23-04311) | VALVE ASSY,RELIEF | 1 | |
| 13 | 708-23-19220 | TEE | 1 | |
| 14 | 07040-11007 | PLUG,HOUSING NO.2?3?4?5?6 | 1 | |
| 15 | 07002-01023 | O-RING,(F4320-61A0 -29 ) | 1 | |
| 16 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 | |
| 17 | 07230-10315 | UNION,(FOR VARIABLE GIANT RIPPER) | 1 | |
| 18 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 1 | |
| 19 | 07102-20303 | HOSE ASSEMBLY | 1 | |
| 20 | 706-46-53260 | Plug | 2 | |
| 21 | 07002-01423 | O-RING,(CRUSHER?OTHER ATT.FOR PPC CON | 2 | |
| 22 | 708-23-19120 | Tube | 1 | |
| 23 | 07000-02012 | O-RING, BETWEEN VALVE AND PUMP | 4 | |
| 24 | 706-46-53180 | BOLT,JOINT | 2 | |
| 25 | 20S-62-21230 | Elbow | 1 | |
| 26 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 1 |
Model |
Nominal displacement(ml/r) Fore pump/ hind pump |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency(≥%) Fore pump/ hind pump |
L1 | L2 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
|||||||
| CBHY-G36/F3.5-ATφ* | 36/3.5 | 25/20 | 28/25 | 800 | 2500 | 3000 | 92/85 | 123 | 123 | 205 | 6.8 |
| CBHY-G36/F4.5-ATφ* | 36/4.5 | 92/90 | 208 | 7.0 | |||||||
| CBHY-G32/F3.5-ATφ* | 32/3.5 | 92/85 | 118 | 118 | 200 | 6.5 | |||||
| CBHY-G32/F4.5-ATφ* | 32/4.5 | 92/90 | 203 | 6.7 | |||||||
| CBHY-G30/F3.5-ATφ* | 30/3.5 | 92/85 | 116 | 116 | 198 | 6.1 | |||||
| CBHY-G30/F4.5-ATφ* | 30/4.5 | 92/90 | 201 | 6.4 | |||||||
| CBHY-G28/F3.5-ATφ* | 28/3.5 | 92/85 | 114 | 114 | 196 | 6.1 | |||||
| CBHY-G28/F4.5-ATφ* | 28/4.5 | 92/90 | 199 | 6.2 | |||||||
| CBHY-G25/F3.5-ATφ* | 25/3.5 | 92/85 | 110 | 110 | 192 | 5.8 | |||||
| CBHY-G25/F4.5-ATφ* | 25/4.5 | 92/90 | 195 | 5.9 | |||||||
Why choose us
1.We provide the product 12 months guarantee from the ship date.
2. We have advanced technoledge and 100% testing before delivery.
3. Quick delivery and competitive price.
4. The larger quantity you order, the better price and faster delivery we can supply.
5. We have a professional team to offer professional service for you.
Company Profile
Koko Shop Machine Co.,Ltd is a professional supplier for almost all brands hyd breakers. seal kits, diaphragm, piston, chisel, upper and lower bush, rod pin, through bolts, side bolts, control valve, front head, cylinder, back head, accumulator,charger kit, gas bottle, shock absorber, ect.
we have hydraulic breaker parts for CATEEEE, EDT, JCB, NPK, MSB, Atlas-Copco, Soosan, Furuwawka, Daemo, Krupp, Fine, Toku, Toyo, Okada, Beilite, Everdigm, Montabert, Indeco, Kwanglim, General, Komac, Rammer, Konan, Teisaku, Hanwoo, Komatsu......and so on.
Also We have our own OEM production capacity to meet any of your requriements, and have excavator parts for Komatsu, Hitachi, Kobelco, Daewoo, Hyundai, EC, Sumitomo, Kato, Sany, Xcmg, Liugong...and so on.
FAQ
1. what kind of information I need to send you?
For different parts it need different information , for hydraulic pump need the nameplate and picture . For the final drive , need the number of the frame hole and sprocket hole ,and the inner diamter of the sprocket . But don't worry , if we need information , we will ask you to check .
2. Do you have stock?
For our main products , our have stock for almost of them , the factory supplier warehouse is near us , if the parts we don't have stock , we will tell you before you order it .
3. Can I get the picture of the part I need before payment ?
For almost parts , we can give you the picture of it , but some parts we don't have picture , but anyway will show you before the shipment .
4. When will the delivery be arranged after the payment
After we received the money , we will arrange the shipment within 1 days ;
5. How can I do if there is something wrong with the items ?
First of all , I have confidence in the quality of our products , if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item .
6. What is your advantage products ?
Our advantage products are final drive / hydraulic pump / swing gearbox / travel gearbox / swing motor / hydraulic parts . If you need any parts for crawler excavator , you can ask us . We will try our best to find the parts what you need .
