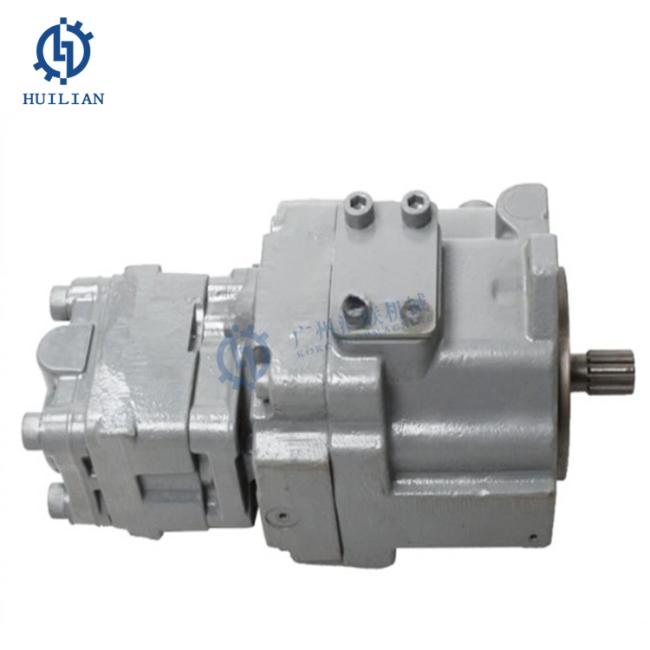

Excavator Spare Parts 705-41-03001 705-41-08001 Excavator Main Pump For Komatsu PC20-6 PC30-6

Price Negotiable
Price: Negotiable
MOQ: 1 PCS
Delivery Time: 7-10Days
Brand: Huilian
Product Description

Excavator Spare Parts 705-41-03001 705-41-08001 Excavator Main Pump For Komatsu PC20-6 PC30-6



Product Description



Product Name Excavator Hydraulic Pump
Brand Huilian
Machine model PC20-6 PC30-6
Packing Size 84*38*49
Part number 705-41-03001 705-41-08001
Pressure Standard, High Pressure

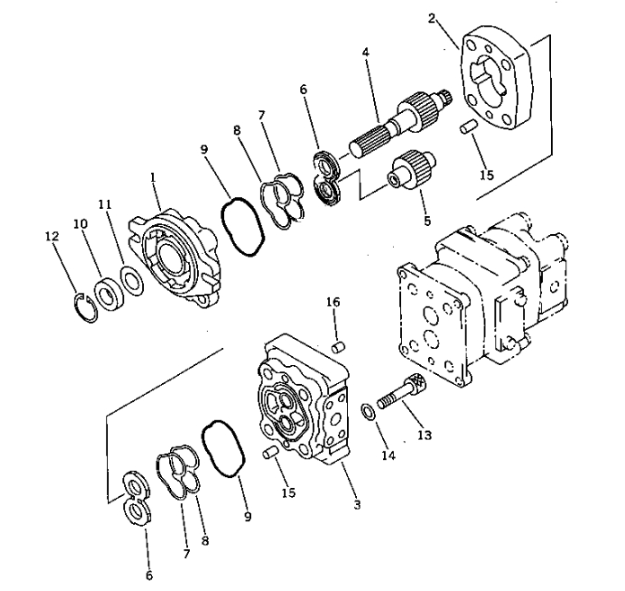

List of spare parts



# Part No Part Name Qty. Price request
1 705-41-08001 PUMP ASSY,(SBR(1)-10+10+8) 1
1 705-41-03001 PUMP ASSY 1
1 (*705-41-80210) Bracket 1
1 (*705-40-80610) BUSHING,PLANE (DRIVEN SIDE) 1
1 (*705-40-80620) BUSHING,PLANE (DRIVEN SIDE) 1
2 (*705-40-22011) cx,GEAR 1
3 (*705-40-80311) Carrier 1
3 (*705-40-80610) BUSHING,PLANE (DRIVEN SIDE) 1
3 (*705-40-80620) BUSHING,PLANE (DRIVEN SIDE) 1
4 (*705-40-22342) GEAR,DRIVE 1
5 (*705-40-22511) GEAR,DRIVEN 1
6 705-40-80710 PLATE,SIDE 2
7 705-40-80730 RING,BACK-UP 2
8 705-40-80740 RING,SEAL 2
9 705-40-80630 RING,SEAL 2
10 705-40-80810 Shaft seal 1
11 705-40-80870 Plate 1
12 04065-03515 RING, SNAP 1
13 01252-31270 Bolt 4
14 01643-51232 WASHER, (WITHOUT EMERGENCY STEERING) 4
15 04020-00820 PIN,DOWEL (WELDED) 4
16 705-67-01230 PIN, DOWEL 2




Model

Nominal
displacement(ml/r)
Pressure(MPa) Speed(r/min)
Volumetric
efficiency
(≥%)
L1 L2 L
Weight
(kg)

Rated

Max

Optimum
speed

Speed range
CBTLZT-F16/F10-AFP* 16/10 20 25 1500~2500 800~3000 92 110 189 214.5 14.5
CBTLZT-F16/F16-AFP* 16/16 196.5 222 14.8
CBTLZT-F20/F10-AFP* 20/10 115 194 219.5 14.8
CBTLZT-F20/F16-AFP* 20/16 201.5 227 15.3
CBTLZT-F25/F10-AFP* 25/10 121.5 200.5 226 15.2

Why choose us



1.We provide the product 12 months guarantee from the ship date.

2. We have advanced technoledge and 100% testing before delivery.

3. Quick delivery and competitive price.

4. The larger quantity you order, the better price and faster delivery we can supply.

5. We have a professional team to offer professional service for you.



Company Profile



Koko Shop Machine Co.,Ltd is a professional supplier for almost all brands hyd breakers. seal kits, diaphragm, piston, chisel, upper and lower bush, rod pin, through bolts, side bolts, control valve, front head, cylinder, back head, accumulator,charger kit, gas bottle, shock absorber, ect.
we have hydraulic breaker parts for CATEEEE, EDT, JCB, NPK, MSB, Atlas-Copco, Soosan, Furuwawka, Daemo, Krupp, Fine, Toku, Toyo, Okada, Beilite, Everdigm, Montabert, Indeco, Kwanglim, General, Komac, Rammer, Konan, Teisaku, Hanwoo, Komatsu......and so on.
Also We have our own OEM production capacity to meet any of your requriements, and have excavator parts for Komatsu, Hitachi, Kobelco, Daewoo, Hyundai, EC, Sumitomo, Kato, Sany, Xcmg, Liugong...and so on.



FAQ



1. what kind of information I need to send you?
For different parts it need different information , for hydraulic pump need the nameplate and picture . For the final drive , need the number of the frame hole and sprocket hole ,and the inner diamter of the sprocket . But don't worry , if we need information , we will ask you to check .


2. Do you have stock?
For our main products , our have stock for almost of them , the factory supplier warehouse is near us , if the parts we don't have stock , we will tell you before you order it .



3. Can I get the picture of the part I need before payment ?
For almost parts , we can give you the picture of it , but some parts we don't have picture , but anyway will show you before the shipment .



4. When will the delivery be arranged after the payment
After we received the money , we will arrange the shipment within 1 days ;



5. How can I do if there is something wrong with the items ?
First of all , I have confidence in the quality of our products , if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item .



6. What is your advantage products ?
Our advantage products are final drive / hydraulic pump / swing gearbox / travel gearbox / swing motor / hydraulic parts . If you need any parts for crawler excavator , you can ask us . We will try our best to find the parts what you need .
