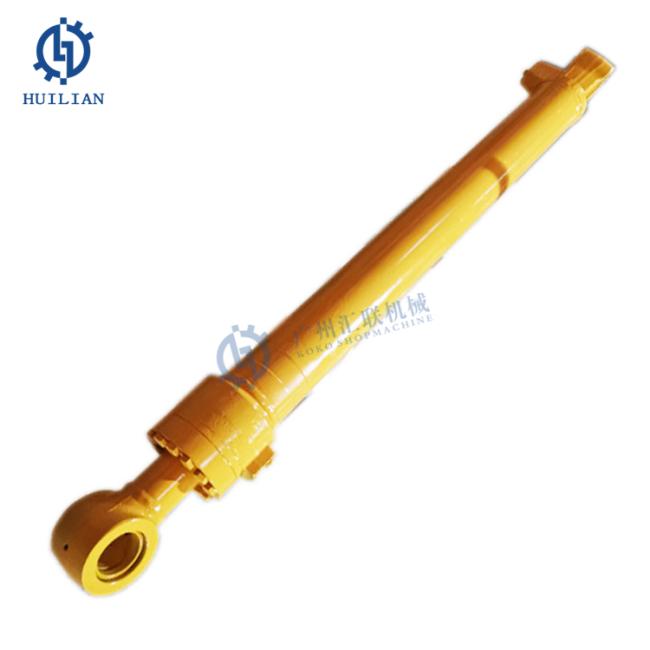

Excavator Spare Parts Excavator Hydraulic Arm Cylinder Assy 31N4-50130 For Hyundai R140LC-7
Excavator Spare Parts Excavator Hydraulic Arm Cylinder Assy 31N4-50130 For Hyundai R140LC-7
Product Description
| Color | According To Customer Requirement |
| Pump Number | 31N4-50130 |
| Rod End Type | Threaded |
| Part Model | R140LC-7 |
| Seals | Parker |
| Piston Diameter | 3 Inches |
| Port Size | 1/2 Inch |
| Standard Or Nonstandard | Nonstandard |
| Oem | Support |
| Structure | Piston Type |
This piston-type hydraulic actuator is built to last, with a piston diameter of 3 inches and seals from industry leader Parker. Its rugged design and superior engineering make it the perfect choice for any earth mover or construction machinery, providing reliable hydraulic ram performance day in and day out.
Whether you're working in an industrial plant or out in the field, our Excavator Hydraulic Cylinder is the ideal solution for your heavy equipment needs. With a part model of R140LC-7 and pump number of 31N4-50130, you can trust in its quality and performance.
Key Features:
1. Piston-type hydraulic actuator
2. Piston diameter of 3 inches
3. Seals from Parker
4. Part model of R140LC-7
5. Pump number of 31N4-50130
6. Durable and reliable construction
Invest in the best for your industrial plant 'n' equipment with our Excavator Hydraulic Cylinder – the perfect choice for any earth mover or construction machinery. Get in touch with us today to learn more about this high-quality hydraulic piston and how it can benefit your business!

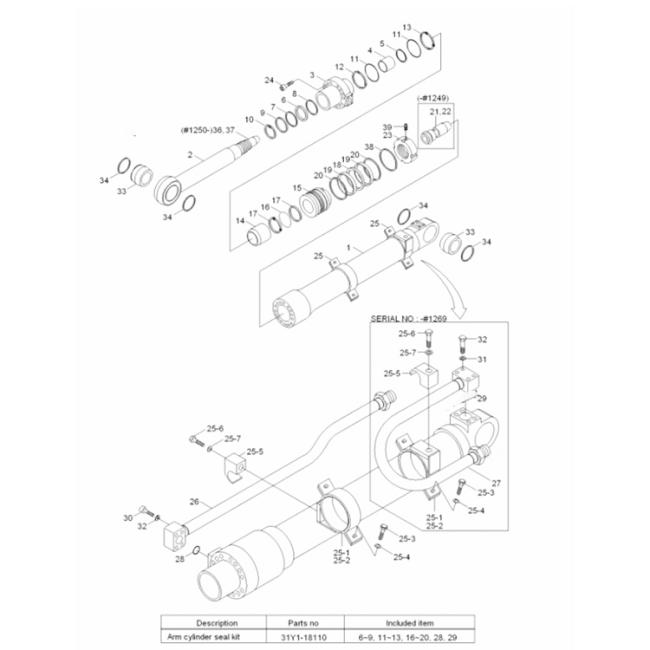

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31N4-50130 | ARM CYLINDER | 1 | |
| * | 31N4-50131 | ARM CYLINDER | 1 | |
| * | 31N4-50132 | CYLINDER ASSY | 1 | |
| *-1 | 31Y1-18081 | ARM CYL SUB ASSY | 1 | |
| * | 31N4-50133 | ARM CYLINDER | 1 | |
| *-1 | 31Y1-18080 | ARM CYL SUB ASSY WITHOUT PIPE |
1 | |
| *-1 | 31Y1-18081 | ARM CYL SUB ASSY WITHOUT PIPE |
1 | |
| *-1 | 31Y1-18082 | ARM CYL SUB ASSY WITHOUT PIPE |
1 | |
| 1 | 31Y1-18260 | TUBE ASSY | 1 | |
| 2 | 31Y1-03620 | ROD ASSY | 1 | |
| 2 | 31Y1-03621 | ROD ASSY | 1 | |
| 2 | 31Y1-03622 | ROD ASSY | 1 | |
| N36 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| N37 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 3 | 31Y1-19640 | GLAND | 1 | |
| 4 | S732-080040 | BUSHING-DD2 | 1 | |
| 5 | Y191-086000 | RING-SNAP | 1 | |
| K6 | Y220-080011 | SEAL-ROD | 1 | |
| K7 | Y180-080020 | RING-BACK UP | 1 | |
| K8 | Y240-080013 | RING-BUFFER | 1 | |
| K9 | Y110-080011 | WIPER-DUST | 1 | |
| 10 | Y190-094000 | RING-SNAP | 1 | |
| K11 | S631-105004 | O-RING | 2 | |
| K12 | S641-105002 | RING-BACK UP | 1 | |
| K13 | S641-105003 | RING-BACK UP | 1 | |
| 14 | 31YC-21050 | RING-CUSHION | 1 | |
| 15 | 31Y1-03660 | PISTON | 1 | |
| 15 | 31Y1-03661 | PISTON | 1 | |
| K16 | S632-070004 | O-RING | 1 | |
| K17 | S642-070003 | RING-BACK UP | 2 | |
| K18 | Y420-115000 | SEAL-PISTON | 1 | |
| K19 | Y310-115003 | RING-WEAR | 2 | |
| K20 | Y440-115000 | RING-DUST | 2 | |
| 21 | 31YC-29070 | SPEAR-CUSHION | 1 | |
| 22 | Y890-015011 | BALL-STEEL | 1 | |
| 23 | 31YC-61050 | NUT-LOCK | 1 | |
| 23 | 31YC-61174 | NUT-LOCK | 1 | |
| 24 | S109-180604 | BOLT-SOCKET | 9 | |
| 25 | 31Y1-03670 | BAND ASSY | 2 | |
| 25 | 31Y1-03670 | BAND ASSY | 1 | |
| 25-1 | 31Y1-03680 | BAND SUB ASSY | 1 | |
| 25-2 | 31YC-31060 | BAND | 1 | |
| 25-3 | S011-100352 | BOLT-HEX | 2 | |
| 25-4 | S411-100002 | WASHER-SPRING | 2 | |
| 25-5 | 31YC-36010 | CLAMP-PIPE | 1 | |
| 25-6 | S015-120502 | BOLT-HEX | 1 | |
| 25-7 | S411-120002 | WASHER-SPRING | 1 | |
| 26 | 31Y1-18090 | PIPE ASSY | 1 | |
| 27 | 31Y1-18100 | PIPE ASSY-B | 1 | |
| K28 | Y171-019004 | O-RING(AN ??) | 1 | |
| K29 | S631-026004 | O-RING | 1 | |
| 30 | S037-104512 | BOLT-W/WASHER | 4 | |
| 31 | S017-100602 | BOLT-HEXAGON HEAD | 4 | |
| 32 | S411-100002 | WASHER-SPRING | 8 | |
| 33 | 31YC-11081 | BUSHING-PIN | 2 | |
| 34 | Y000-070200 | SEAL-DUST | 4 | |
| 38 | 31YC-66031 | WASHER-LOCK | 1 | |
| 39 | S112-080164 | SCREW-SET,HEX SOCKET | 1 | |
| K | 31Y1-18110 | SEAL KIT SEE ILLUST |
What is Cylinder
1. Suitable for most of the excavator brands, such as Hyundai, Kobelco, and so on.
2. All the models have the bucket hydraulic cylinder, Arm hydraulic cylinder and Boom hydraulic cylinder
3. All the components are standard as OEM, strict quality control.
4. The selection of high quality hydraulic components.
5. Production of non-standard hydraulic cylinder according to customer request.
Company Profie
Koko Shop Machine Co., Ltd (EB Seals) is a professional supplier for hydraulic breaker parts and excavator parts and OEM hydraulic seals manufacturer. We specialize in completed seal kits and separate seals for hydraulic breaker and excavator more than Ten years in Guangzhou, China. Koko Shop supply almost all brands breakers' parts like Seal kits, Diaphragm, Piston, Chisel, Wear Bush upper and lower, Rod Pin, Through Bolts, Side Bolts, Control Valve,Front Head, Cylinder, Accumulator, N2 Gas Charging Kit, etc. Also supply almost all brands excavator' parts like hydraulic cylinder boom arm bucket seal kit, hydraulic pump and travel swing motor etc. We insist on high quality parts with genuine and OEM after market replacement parts.
