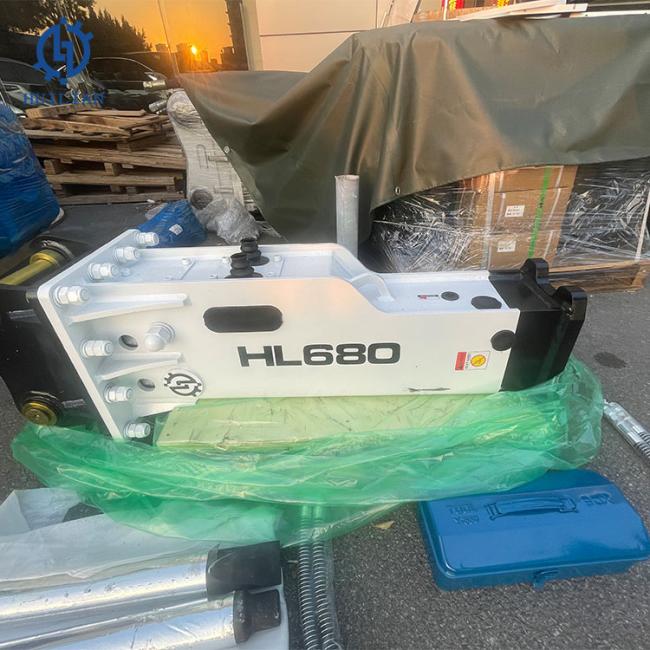

Huilian HL680 HL750 HL850 HL1000 HL1250 HL1350 HL1400 Concrete Breaker Hammer For 4t 7t 10t 20t Excavator Rock Stone Breaker
Huilian HL680 HL750 HL850 HL1000 HL1250 HL1350 HL1400 Concrete Breaker Hammer for 4t 7t 10t 20t Excavator Rock Stone Breaker
| Product Name | Hydraulic Breaker | Model | HL680 HL750 HL850 HL1000 HL1250 HL1350 HL1400 |
| Type | Silence Type | Cylinder Material | 20CrMo |
| Weight | 330KG | Piston Material | 42CrMo |
| Suitable Excavator | 4-7T 10T 20T | Warranty | 12 month |
Product Parameter
| MODEL | WEIGHT(KG) BOX TOP SIDE |
LENGTH(MM) BOX TOP SIDE |
REQUIRED OIL FLOW L/MIN |
WORKING PRESSURE KG/CM M2 |
IMPACT RATE B.P.M |
HOSE DIAMETER B.P.M |
CHISEL DIAMETER IN |
CHISEL LENGTH MM |
APPLICABLE EXCAVATOT M3 |
| EB-45 | 130 135 120 | 1265 1280 760 | 20-40 | 90-120 | 700-1200 | 1/2 | 45 | 450 | 0.03-0.1 1.2-3 |
| EB-53 | 200 200 200 | 1342 1400 1140 | 20-50 | 90-120 | 600-1100 | 1/2 | 53 | 530 | 0.06-0.2 2.5-4.5 |
| EB-68 | 330 330 327 | 1590 1610 1360 | 40-70 | 110-140 | 500-900 | 1/2 | 70 | 700 | 0.15-0.3 2.5-4.5 |
| EB-75 | 450 450 468 | 1859 1822 1560 | 50-90 | 120-150 | 400-800 | 1/2 | 75 | 750 | 0.2-0.35 6-9 |
| EB-85 | 680 680 650 | 2101 2096 1774 | 60-100 | 130-160 | 40D-800 | 3/4 | 85 | 85o | 0.25-0.5 7-14 |
| EB-100 | 1000 100o 8B7 | 2401 2351 1981 | 80-110 | 150-170 | 350-700 | 3/4 | 100 | 105o | 0.4-0.6 11-16 |
| EB-125 | 1300 1320 1250 | 2592 2600 2300 | 90-120 | 150-170 | 350-650 | 1 | 125 | 1100 | 0.5-0.7 15-18 |
| EB-135 | 2000 2000 1800 | 2822 2762 2322 | 100-150 | 160-180 | 350-650 | 1 | 135 | 1200 | 0.7-0.8 18-21 |
| EB-140 | 2050 2050 1960 | 2828 2040 2363 | 120-180 | 160-180 | 350-650 | 1 | 140 | 1250 | 0.7-0.9 18-26 |
| EB-150 | 2800 2300 2670 | 3052 3047 2616 | 150-210 | 160-180 | 300-450 | 1 | 150 | 1400 | 0.3-1.2 25-30 |
| EB-155 | 2800 2300 2670 | 3254 3083 2776 | 18O-240 | 160-180 | 300-450 | 1~1/4 | 155 | 1400 | 1.1-1.4 28-35 |
| EB-165 | 340D 3200 3350 | 3450 3500 3000 | 200-260 | 160-180 | 250-400 | 1~1/4 | 165 | 1500 | 1.2-1.7 30-45 |
| EB-175 | 4200 4200 3500 | 3709 3617 3200 | 210-290 | 160-180 | 200-350 | 1~1/4 | 175 | 1500 | 1_4-2.0 40-55 |
| EB-180 | 4500 4500 4200 | 38oD 3800 3300 | 250-340 | 160-180 | 250-320 | 1~1/4 | 180 | 1600 | 1.9-3.5 45-60 |
| EB-185 | 4500 4500 4200 | 3800 3800 3300 | 250-340 | 160-180 | 250-320 | 1~1/4 | 180 | 1600 | 1.9-3.5 45-60 |
| EB-190 | 4650 4650 4350 | 3750 3750 3260 | 260-320 | 170-190 | 200-300 | 1~1/2 | 190 | 1600 | 1.9-4.5 45-75 |
| EB-195 | 4650 46504350 | 3750 3750 3260 | 260-320 | 170-190 | 200-300 | 1~1/2 | 190 | 1600 | 1.9-4.5 45-75 |
| EB-210 | 6350 6200 6100 | 4550 4500 4350 | 280-390 | 160-180 | 200-350 | 1~1/2 | 210 | 1800 | 3.8-7.5 70-100 |
We also have stock in these parts:
| Hammer Parts | Main Body | Back Head | Charging Valve | Cylinder |
| Socket Plug | Piston | Adapter | Valve | Valve Plug |
| Front Head | Grease Nipple | Rod Pin | Stop Pin | Rubber Plug |
| Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush |
| Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod |
| Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover |
| Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal |
| Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt |
| Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assy |
| Seal Retainer | Valve Sleeve | Front Head Pin | Lower Bush | Hex Nut |
| Socket Bolt | Step Seal | Upper Cushion | Rubber Pad | Shock Absorber |
The hydraulic breaker hammer is powered by pressure oil supplied from the pumping station of the excavator or loader and is more effective in the role of excavating building foundations to clear floating stones and soil from rock crevices.
The principle of selecting a hydraulic breaker is to choose the most suitable hydraulic breaker according to the excavator model and the environment in which it will operate.
APPLICATEEION:
1. Railway: mountain driving, tunnel excavation, road and bridge demolition, and roadbed consolidation.
2. Highway: highway repair, cement pavement crushing, foundation excavation.
3. Mining: mountain opening, mining, grid screen crushing, secondary crushing.
4. Metallurgy: ladle, slag cleaning, furnace dismantling, equipment foundation dismantling.
5. Construction: old buildings are demolished, reinforced concrete is broken.
6. Ships: remove mussels and rust from the hull.
7. Municipal gardens: concrete crushing, water, electricity, gas engineering construction, old city renovation.
8. Others: ice breaking, frozen soil breaking, sand vibrating.
FEATURE:
1. Uses the least amount of parts to make the surface, the number of accessories is small, the failure is small, and it is easy to repair and maintain.
2. The overall length is reduced, which is convenient for picking objects back.
3. Easy to control, easy to loCATEEe, more conducive to excavation.
Hydraulic Breaker Hammer High-quality breaker material
| Product Name | Material |
| Hydraulic Breaker Cylinder | 20crmo forged |
| Hydraulic Breaker Front Head | 40crmo forged |
| Hydraulic Breaker Back Head | 40crmo forged |
| Hydraulic Breaker Plug Valve Sleeve Valve | 20CrMo |
| Hydraulic Breaker Front Cover | 40crmo forged |
| Hydraulic Breaker Ring Bush | 40crmo forged |
| Hydraulic Breaker Through Bolt | 40CrMo |
| Hydraulic Breaker Chisel | 42CrMo forging,Each drill rod has undergone 3 cold heat treatments, long life drill rod |
| Hydraulic Breaker Seal kit | High temperature resistance |
Other products are continuously being updated. Please stay tuned and feel free to inquiry.
| Through/Side Bolt | SB40 SB43 SB45 SB50 SB60 SB70 SB81 SB100 SB121 SB131 SB141 SB151 |
| Chisel Rod | HB15G 20G 30G 40G F22 F35 F45 |
| Inner Outer Bushing | EDT400 EDT435 EDT800 EDT2000 EDT2000F EDT2200A EDT3500F EDT4500 |
| Rod Pin | GB1T GB2T GB3T GB4T GB6T GB8T GB11T GB175 GB180 GB630E GB210D |
| Piston | RHB305 RHB313 RHB322/325/326 RHB323/321 RHB330 RHB324/326 RHB180 |
| Piston Ring | TNB5M TNB7E TNB7J TNB16B TNB141 TNB150 TNB151 TNB190 TNB230 TNB310 |
| Reversing Control Valve | THBB801 THBB1400 THBB1600 THBB175L THBB190 |
| Accumulator | BLTB40 BLTB45 BLTB53 BLTB70 BLTB75 BLTB190 BLTB200 BLTB205 BLTB210 |
| Nitrogen Gas Charging Valve | SB40 SB43 SB45 SB50 SB60 SB70 SB81 SB100 SB121 SB131 SB141 SB151 |
| Nitrogen Gas Charger Kit | HB15G 20G 30G 40G F22 F35 F45 |
| Oil Seal Kit | EDT400 EDT435 EDT800 EDT2000 EDT2000F EDT2200A EDT3500F EDT4500 |
| Rubber Diaphragm | GB1T GB2T GB3T GB4T GB6T GB8T GB11T GB175 GB180 GB630E GB210D |
| Cylinder Front Head | RHB305 RHB313 RHB322/325/326 RHB323/321 RHB330 RHB324/326 RHB180 |
| Cylinder Back Head | TNB5M TNB7E TNB7J TNB16B TNB141 TNB150 TNB151 TNB190 TNB230 TNB310 |
| Cylinder | THBB801 THBB1400 THBB1600 THBB175L THBB190 |
| Main Body | BLTB40 BLTB45 BLTB53 BLTB70 BLTB75 BLTB190 BLTB200 BLTB205 BLTB210 |
| Triangle Type Breaker | SB40 SB43 SB45 SB50 SB60 SB70 SB81 SB100 SB121 SB131 SB141 SB151 |
| Excavator Box Silenced Type | HB15G 20G 30G 40G F22 F35 F45 |
Warranty of Hydraulic Breaker
| ltem | Warranty | Remark |
| Cylinder | 12 months if no external force demage | |
| Back Head | 12 months if no external force demage | only crush and sand holes |
| Front Head | (45-140)12 months,(150-210)6 months | only crush and sand holes |
| Piston | (45-140)12 months,(150-210)6 months | except rusty |
| Main Valve | (45-175)12 months,(185-210)6 months | except lmpurity scratch |
| Main Valve Fixed Bolt |
2 months if no external force demage | |
| Side&Through Bolt | 3 months if no external force demage | |
| Accumulator | 6 months if no external force demage | |
| Diaphragm | 2 months if no external force demage | |
| Bracket | (45-140)6 months ,(150-210)3 months | only the crack ,not includingpin set |
| Accumulator Fixed Bolt |
2 months if no external force demage | |
| Stop pin | not in the scope of the claims | |
| Nitrogen Valve | not in the scope of the claims | |
| inner&Out bush Rod pin |
2 months if no external force demage | |
| Pipes | 1 months if no external force demage | |
| Seal Kit | reference to operating instructions | not in the scope of the claims |
| Chisel | reference to operating instructions | |
| Cylinder Scratch | (45-75)12months,(85-140)9months,(150-175)6 months,(175-210)2 months |
