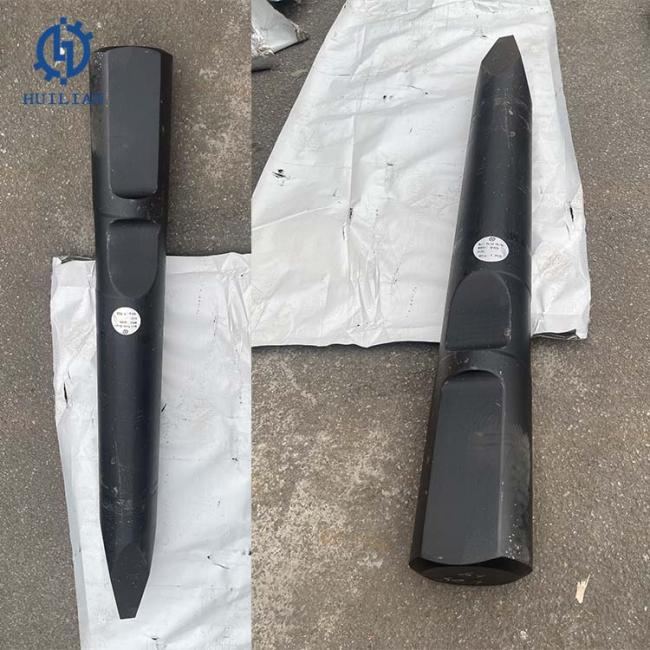

Montabert V32 V45 V55 Hydraulic Rock Breaker Chisel V45 Hydraulic Breaker Spare Parts Stone Chiseling Tools Moil Type Chisel

Montabert V32 V45 V55 Hydraulic Rock Breaker Chisel V45 Hydraulic Breaker Spare Parts Stone Chiseling Tools Moil Type Chisel

Chisels are ware parts used for stone cutting,boring holes in concrete,bricks and other hard materials.
rock breaker chisel For Hydraulic Rock Breakers can be used in:

OUR ADVANTAGES
1. Material: 42 CrMoA
2. CNC machine to make it more accuracy
3. 17 years heat treatment experience
4.Chisel breaken but the length of chisel no more than 12cm.
We will give you a new one.(not man- made)
5. ISO 9001 Quality Assurance and CE certifiCATEEion

Parameters

AppliCATEEion

Hydraulic breaker chisel widely used to breaking rock, paving road, building demolition, mining, dismantling engineering and special engineering etc.

1. Material: 40Cr or 42CrMo

2. Dimension: Depending on the specifiCATEEion of Tool Maker
3. Chisel type: Moil Point, Blunt Tool, Flat, wedge
4. Heat Treatment:
a.Austen-ting Temperature 810~850 (20min/inch)
b.Cooling Water oil cooling
c.Tempering 250~300 (1hr/inch)
5. Mechanical Properties:
a.Surface Hardness HRC51± 3
b.Core Hardness HRC35± 3
c.Tensile strength(min) 1250N/mm²
d.Yield point (min) 950N/mm²
e.Elongation 10~14%
f.Reduction of Area 35~40%
j.Impact work 23~28 ft1b
k.Grain size 7.0~8.0

Advantage:
1. We are manufacturer , belong to the integration of industry and trade.
2. Our company has independent design capability and team.
3. Our company has a complete set of processing methods, processing center.
4. Our company's product series are complete: from track roller, sprocket, top roller, front idler, rubber track, steel track to undercarriage, we can design and customize special mechanical equipment.
5. Our company has a strong R&D platform.
6. Low quantity for OEM and orders.

Advantage of the forged steel chisel:

1).Higher density

2).Better toughness

3).Stronger wear resistance

4).Longer service-life

5).Lower breakage-rate

1)Cone steel chisel
The energy provided will have a veay marvellous penetration when through point.split power being transmitted aroud,and no reverse.
2)Flat steel chisel
Excellent split power,good penetration,torque will have a direct role in the rock.
3)Horizontal steel chisel
The energy provided by a large surface ,the best crushing effect , no torque occurs at a fixed pin.

Support customization of various styles and sizes to satisfy all kinds of hydraulic breaker!
