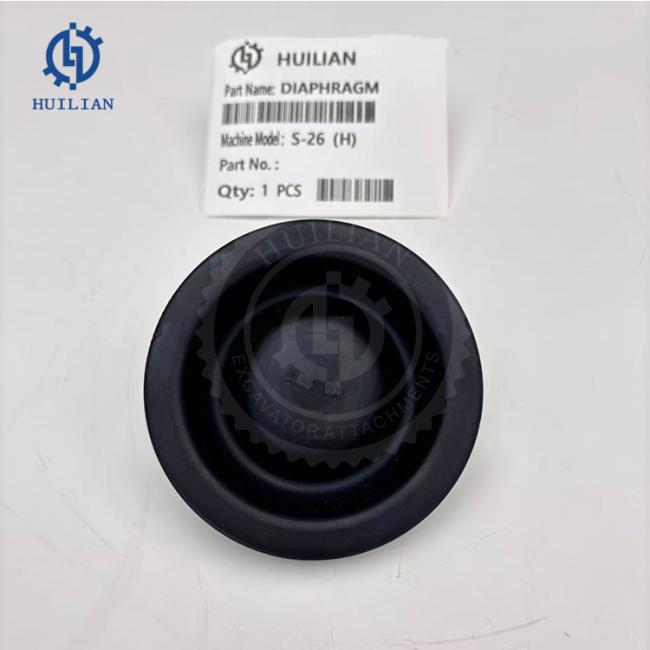

Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
| Product name | Hydraulic Breaker Rubber Diaphragm Membrane for Accumulator |
| Pressure | 85~125Mpa |
| Temperature | -35~175°C |
| Material | NBR and Rubber |
| Feature | heat resistant, high power ,durable |
| Compatible Brand | Rammer |
| Compatible Model | S26 - High Pressure |
| Material | High-Strength Elastomer (NBR/HNBR) |
| Height | 20 mm |
| Diameter | 95 mm |
| Weight | 0.25 kg |

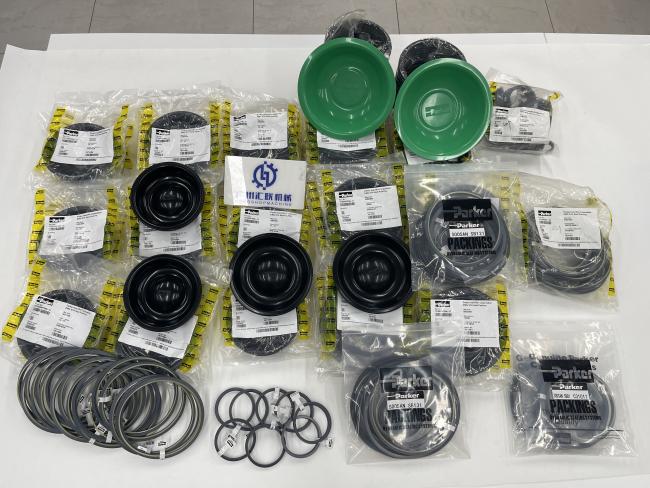

Hydraulic breaker spare parts we can supply:
| Hammer Parts | Main Body | Back Head | Charging Valve | Cylinder |
| Socket Plug | Piston | Adapter | Valve | Valve Plug |
| Front Head | Grease Nipple | Rod Pin | Stop Pin | Rubber Plug |
| Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush |
| Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod |
| Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover |
| Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal |
| Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt |
| Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assy |
| Seal Retainer | Valve Sleeve | Front Head Pin | Lower Bush | Hex Nut |
| Socket Bolt | Step Seal | Upper Cushion | Rubber Pad | Shock Absorber |
Breaker diaphragm parameter
| Product name | Model | size |
| hydraulic breaker diaphragm | F-6=F-3=FURUKAWA 300 | ø110 * 18 |
| hydraulic breaker diaphragm | HB-3G/5G | ø100 * 17 |
| hydraulic breaker diaphragm | HB-10G/F12 | ø140*40 |
| hydraulic breaker diaphragm | HB-15G | ø150 * 40 |
| hydraulic breaker diaphragm | HB-20G | ø170 * 35 |
| hydraulic breaker diaphragm | HB-30G | ø190 * 40 |
| hydraulic breaker diaphragm | HB-40G | ø210 * 48 |
| hydraulic breaker diaphragm | HB-200 | ø135 * 23 |
| hydraulic breaker diaphragm | HB-700 | ø165 * 23 |
| hydraulic breaker diaphragm | HB-1200 / 1500 | ø230 * 20 |
| hydraulic breaker diaphragm | SB-120/121/130 | ø192 * 40 |
| hydraulic breaker diaphragm | SB-150/SB-151 | ø205 * 37 |
| hydraulic breaker diaphragm | HM-110/HM-550 | ø112 * 16 |
| hydraulic breaker diaphragm | MKB-1300/HM-901 | ø140 * 60 |
| hydraulic breaker diaphragm | HM-600 / 800 / 901 | ø140 * 60 |
| hydraulic breaker diaphragm | HM960/HM-1300 | ø185 * 50 |
| hydraulic breaker diaphragm | HM-1500 / KRUPP-1000 / HM720 | ø170 * 20 |
| hydraulic breaker diaphragm | UB-11 / TOKU-14/TNB13 | ø144 * 65 |
| hydraulic breaker diaphragm | OUB 312 / UB-1600 | ø170 * 70 |
| hydraulic breaker diaphragm | OUB 316 / 318 / UB-2500/KTB2500 | ø200 * 90 |
| hydraulic breaker diaphragm | UB-11-2 | ø150 * 77 |
| hydraulic breaker diaphragm | UB-5/TNB13A | ø138 * 68 |
| hydraulic breaker diaphragm | RAMMER S-26 HIGH / D-50 | ø95 * 20 |
| hydraulic breaker diaphragm | RAMMER S-25 HIGH / D-50 | ø110*22 |
| hydraulic breaker diaphragm | RAMMER S-26 LOW / D-50 | ø193 * 30 |
| hydraulic breaker diaphragm | THBB-1400(7624-10-0230)/THBB800 | ø157 * 70 |
| hydraulic breaker diaphragm | THBB1600 | 168*80 |
| hydraulic breaker diaphragm | FURUKAWA 300/HD-300,500 | ø110 * 18 |
| hydraulic breaker diaphragm | LM-500/YH-65/BRP130 | ø115 * 21 |
| hydraulic breaker diaphragm | YH-45=CDH700=YH-50=CDH712 | ø101 * 21 |
| hydraulic breaker diaphragm | TR210 | ø165*40 |
FAQ
1. What can you buy from us?
Construction machinery hydraulic breaker and excavator parts include for engine controller ECU, monitor display screen, solenoid valve,motor step assy, wire harness, sensor and other excavator parts
2. How can we guarantee quality?
(1)We always provide a pre-production sample before mass production;(2)We always conduct a final inspection before shipment.
3. If I don't have part number, can you check for me?
Yes, for the excavator model, we have old photos and sizes, which are also available to help confirm the correct parts you need.
4. Which shipping term you can supply?
By sea, air or by express (DHL, Fedex,TNT, UPS, EMS)
5. How long does it take to my address?
The normal express delivery time is 3-7 days, depending on which country you are in.
6. How can I pay the order?
We accept payment by T/T, Trade assurance, Paypal, Western Union, L/C
7. How can we maintain a long-term and good business relationship?
(1) We keep good quality and competitive price to ensure our customers benefit.
(2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
