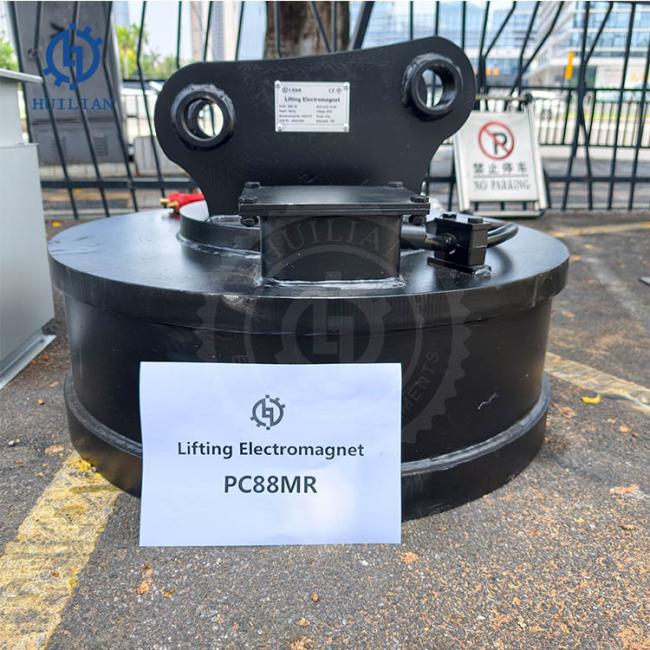

Excavator Attachment Lifting Electromagnet Lifting Magnet for 5-10 Ton Excavator for Komatsu PC88MR
Excavator Attachment Lifting Electromagnet Lifting Magnet for 5-10 Ton Excavator for Komatsu PC88MR
Product Description
| Product name | Lifting Electromagnet |
| Model | MW5-80 |
| AppliCATEEEEEEEEEEion model | Komatsu PC88MR |
| work cycle | 12 min |
| power | 4kw |
| Suitable excavator | 5-10 tons |
| AppliCATEEEEEEEEEEion | Excavator |
Lifting Electromagnet Introduction
1. Advanced Magnetic Circuit & Premium Material Design
High-Efficiency Magnetic Circuit: Features a specialized magnetic circuit design with a large air gap magnetic density, ensuring high-efficiency operation.
Rugged & Durable Construction: The coil is meticulously wound with high-quality copper wire. The outer protection plate is crafted from rolled high-manganese steel plate, delivering exceptional wear resistance and superior impact tolerance.
Performance Breakthrough: Combines a lightweight design and low energy consumption with a heavy lifting capacity and an extended service life.
2. Sophisticated Insulation Structure
Optimized Design: Engineering with a highly reasonable and scientific insulation structure.
Advanced Processing: Utilizes vacuum drying and vacuum filling (impregnation) technologies, significantly enhancing both the electrical and mechanical properties of the coil.
Superior Thermal Resistance: The insulation material achieves a Special Class C heat-resistance rating, ensuring stable and reliable performance even in extreme thermal environments.
3. Flexible & Efficient Control Modes
Standard Operation: The system typically utilizes a stable constant voltage control method.
Performance Upgrade: By adopting a strong excitation (over-excitation) control method, the equipment's lifting capacity can be further maximized and enhanced.
4. High Reliability & Broad Applicability
Boasting a simple yet highly safe and reliable structure, this system is perfectly suited for integration with all types of lifting and hoisting equipment.
Our Lifting Electromagnet Product SpecifiCATEEEEEEEEEEion
| Items | unit | DG800X | DG1200X | DG1300X | DG1500X | DG1650X | DG1800X |
| External dimension | mm | 200*800 | 285*1200 | 285*1300 | 300*1500 | 300*1660 | 260*1810 |
| Power | KW | 4 | 9.9 | 11.88 | 15.6 | 16.5 | 22.5 |
| Electricity | A | 18.2 | 45 | 54 | 65 | 79 | 100 |
| Suction | T | 2.5-3 | 4.5-5.5 | 5.5-5.6 | 7.5-11 | 8-11 | 9.5-11 |
| Foundry pig iron | kg | 200 | 800-1000 | 900-1100 | 1200-1300 | 1300-1500 | 1600-1800 |
| Shearing materials | kg | / | 500-800 | 600-1000 | 700-1300 | 800-1500 | 900-2000 |
|
Pig iron powder
|
kg | / | 400-800 | 500-1000 | 800-1300 | 1000-2000 | 1200-2500 |
| Weight | kg | 600 | 1450 | 1950 | 2580 | 2650 | 3300 |
| Three-phase 190V excavator self-powered | KW | 10KW | 15KW | 15KW | 24KW | 24KW | 24KW |
Details of spare parts and components
| Type | Name | Specification | Quantity |
|
Cable |
main cable | / | 1 PCS |
|
three-core cable |
/ | 1 PCS | |
|
Electric wire |
control line |
/ | 1 PCS |
| Screw | take-up screw | / | 2 PCS |
| Main shaft | main shaft | / | 2 PCS |
| Axle sleeve | axle sleeve | / | 4 PCS |
|
Warranty card |
warranty card |
/ | 1 PCS |
We Can Supply Following Excavator Model Attachments
| PC45MR PC56-7 PC60-7 PC70-8 PC60-6 PC40-7 PC40-8 PC60-2 PC60-5 PC60-6 PC75 |
| PC100-5 PC120-6 PC150-5 PC130-7 PC200-3 PC200-6 PC200-8 PC210LC-8 PC220-8 |
| PC240LC-8 PC300-3 PC300-5 PC300-6 PC300-7 PC360-7 PC400-3 PC400-5 PC600-6 |
| ZX60 ZX70 ZX100M-1 ZX120 EX60 EX60-2 EX60-3 EX60-7 EX100-1 EX120-5 EX120-6 |
| ZX200 ZX200-3 ZX230 ZX240 ZX240-3 EX200-1 EX200-2 EX200-3 EX200-5 EX200-6 |
| EX210-2 EX220-2 EX220-3 EX225-5 EX270 EX300-1 EX300-2 ZX330-3 ZX450H EX300-5 |
| EX450-5 EX550-3 EX700 EX750 EX1100-1 EX1200-5 EX1200-6 EX1800 EX2500-5 |
| E312 E315 E324D E320D E330 E329D E200B E240 E320 E320C |
| R60-7 130 R200-5 R215-7 R225-9 R210W-7 R220-5 R250-7 R260-7 R290-3 R300-5 R375-7 R305-7 R335-7 R300-3 R450 |
| SK07 SK60 SK75 SK60-8 SK120 SK120-3 SK130 SK200-8 SK200-6 SK250-8 SK210-6 |
| SK220-1 SK230-6 SK250-6 SK200-8 SK210-8 SK300-3 SK330-6 |
| DH60-7 DH80-7 DH130 DH215-7 DH215-9 DH220-5 DH220-2 DH220-3 DH225-7 DH280-3 |
| DH150 DH300 DH330-3 DH300-5 DH420LC-7 DH300-7 |
| EC210BLC EC140BLC EC290B EC360B EC210 EC240 |
| SH120 SH75 SH100 S280 S280FA S280F2 S281 S340 S265F2 SH200 SH200A3 |
| HD550 HD450 HD800-7 HD400SEM HD700-2 HD700-5 HD700-7 HD800SD-5 HD900-7 |
| HD820-2 HD820 HD770-1 HD770-2 HD880-1 HD850 HD250 HD400 |
