Highly Wire Wrapped Screen for Water Well Systems V-Shaped Wire 0.5mm Slot Size 65% Open Area SS304L Material 5.8m Unit Length BTC End Connection
Water Well Screens Product Description
Water well screens, also recognized as Johnson screens, wedge wire screens, wire wrapped well screens, rod based well screens, continuous slot water well screens, v-shaped wire well screens, screen pipe, or stainless steel strainer, are essential components for well systems.
Introduction

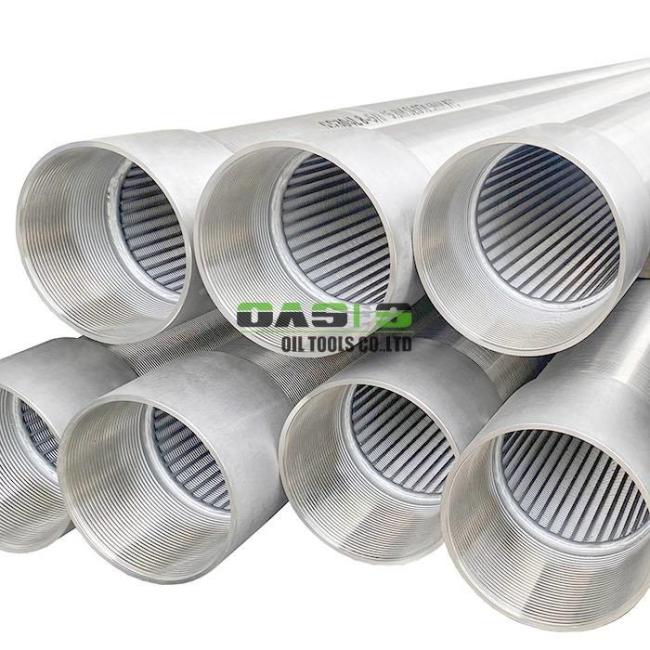

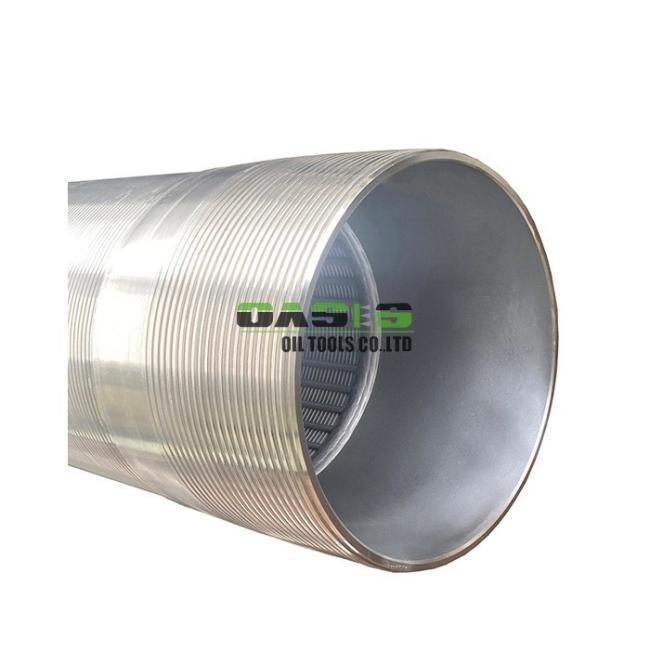

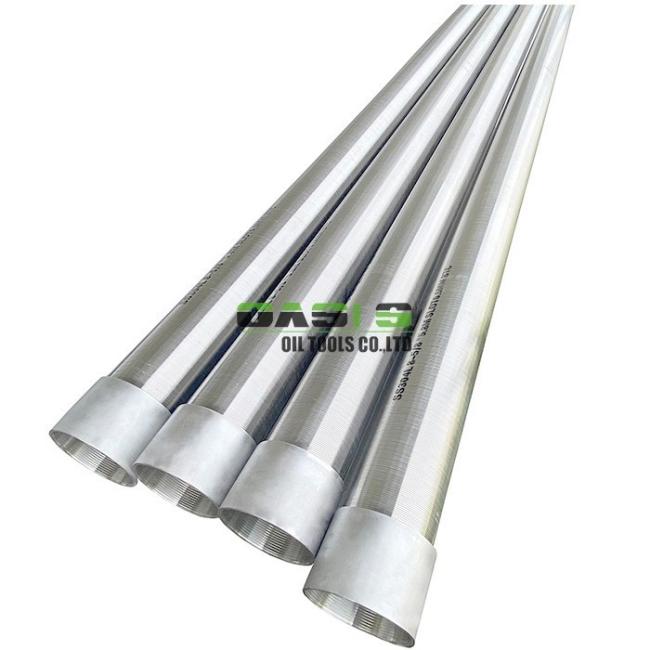

Our water well screens are meticulously crafted by wrapping v - or wedge - shaped wire around an internal arrangement of longitudinal support rods. Every intersection point of these wires is fusion welded, ensuring robust structural integrity. The v - or wedge - shaped profile wire spirals along the entire length of the support rods, forming continuous slot openings. This unique design enables water (or oil) to flow freely into the well in abundant amounts while effectively preventing most sand and gravel from entering, thus safeguarding the well's performance and longevity.
Specifications
1. Slot size(mm): 0.5mm
2. Open area: 65%
3. Material: SS304L
4. Unit Length: 5.8 meters
5. End connection: BTC
Application area:
1. Usually Johnson v wire wrapped screens are used for water/oil well drilling.They can be installed in the aquifer layer.
2. Industrial usage like papermaking, sugar refinery,etc.
3. Sea/lake water desalination
Packing Details
More Details
Related Products
Our company
Oasis Oil Tools Co., Ltd(Oasis Well Screen Co.,LTD)is a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/Johnson screens/wedge wire screen/rod base screen/continuous slot screen/non-enforced Johnson screen, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens/perforated base pipe with screen jacket/pipe base screen/reinforced Johnson type screen, perforated pipe (base pipe), gravel pre-packed well screens, passive water intake screens etc. water, oil and gas well filtering products as well as API/Stainless Steel Casing& Tubing and pipes and industrial parts.
Please contact with us for more details.
Our techinical team will give you the best choice.
