Premium AISI304L Stainless Steel Well Screen – High-Performance Filtration for Deep Wells
Premium AISI304L Stainless Steel Well Screen – High-Performance Filtration for Deep Wells
Product Overview

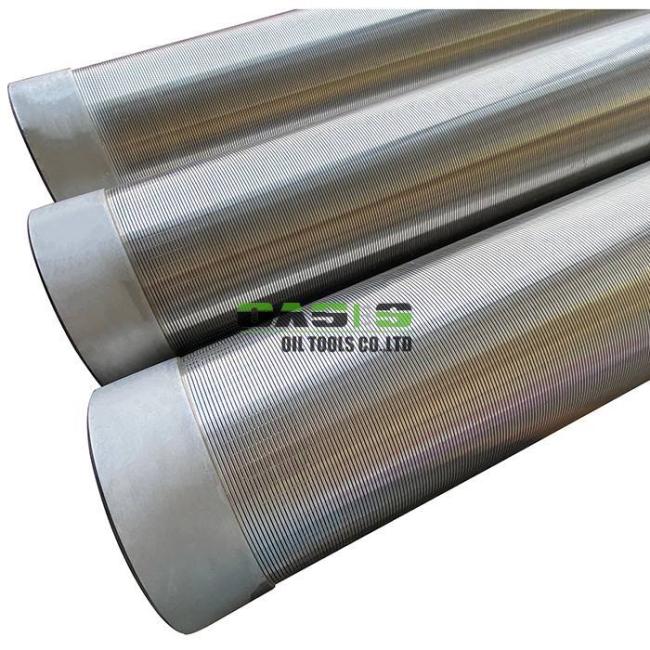

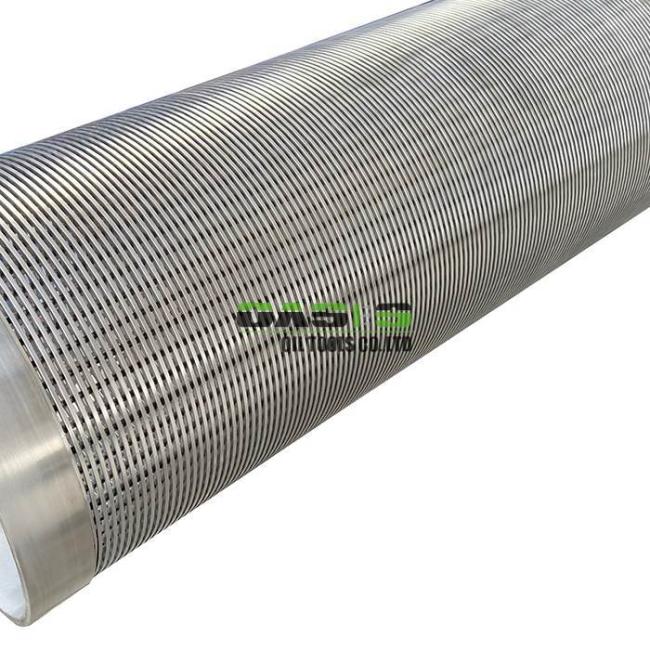

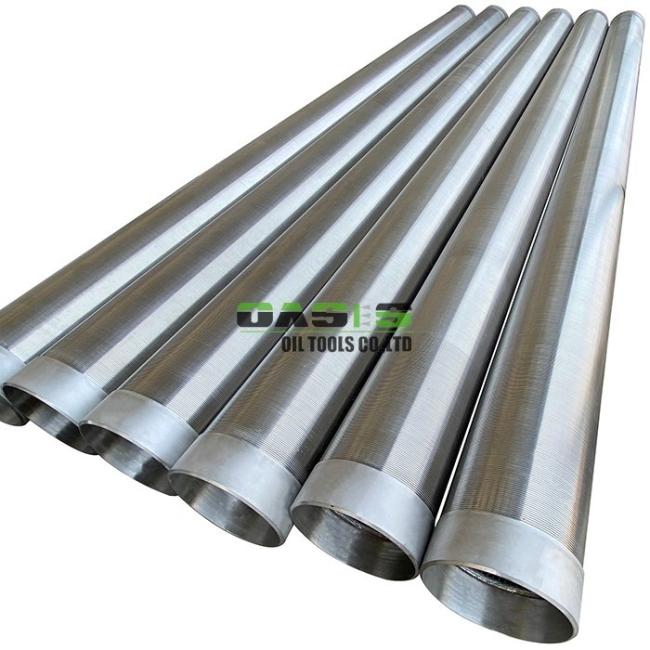

Oasis stainless steel screen pipe is engineered for superior durability and efficiency in water, oil & gas, and geothermal applications. Manufactured from AISI 304L (UNS S30403) stainless steel, it offers exceptional corrosion resistance and structural strength, making it ideal for 300-meter-deep wells and demanding environments.
Technical Specifications
| Parameter | Specification |
| Material | AISI 304L (18% Cr, 8% Ni, Low Carbon) |
| Outer Diameter | 355.6 mm (14") |
| Slot Width | 1 mm (Customizable: 0.1–3 mm available |
| Wire Wrap | 3.6 mm diameter × 7.49 mm pitch |
| Support Ribs | 3.6 mm diameter × 7.49 mm pitch |
| Single Joint Length | 5.8 meters (19 ft) |
| Max Well Depth | 300+ meters (984+ ft) |
| Standards | ASTM A240, API 5CT, ISO 9001 Certified |
Key Advantages
✔ Superior Corrosion Resistance – AISI304L ensures longevity in saline, acidic, and high-temperature environments.
✔ Optimized Flow Efficiency – Precision 1mm slots prevent sand ingress while maximizing water/oil flow.
✔ Heavy-Duty Construction – 64 ribs (5.5mm thick) provide collapse resistance under extreme pressures.
✔ Easy Deployment – Pre-fabricated 5.8m joints minimize on-site welding/connections.
Certifications & Compliance
- ASTM A240 – Standard specification for chromium-nickel stainless steel.
- API 5CT – Compliant with American Petroleum Institute casing/tubing standards.
- ISO 9001 – Quality management system certified for consistent manufacturing.
- NACE MR0175 – Resistant to sulfide stress cracking (optional for H₂S environments).
Applications
- Water Wells – Filters sand/sediment in municipal, agricultural, and industrial wells.
- Oil & Gas – Sand control screens for production wells and gravel pack systems.
- Geothermal Energy – Reliable performance in high-temperature brine applications.
- Environmental Wells – Groundwater monitoring and remediation.
Customization Options
- Slot Sizes: 0.1mm–3mm (laser-cut, wire-wrapped, or punched).
- Connections: Threaded, flanged, welded, or specialty couplings (e.g., VAM, Tenaris).
- Material Upgrades: 316L, duplex stainless steel (2205), or epoxy coating for aggressive environments.
More Details
Related Products
Why Partner With Us?
✅ 15+ Years of Expertise – Trusted global supplier for oilfield and water well screens.
✅ Third-Party Test Reports – Available upon request (e.g., material composition, hydrostatic tests).
✅ Fast Lead Times – Bulk orders shipped worldwide with full documentation.
Contact Us Today!
Request a quote, technical datasheet (PDF), or discuss project-specific requirements with our engineers.
OASIS located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City. Oasis now has more than 150 staff, among them 6 persons are senior engineer. Since founded, OASIS adhere to “development on innovation, development on efficiency and treat customers with honesty” business philosophy.
After many years’ efforts, now OASIS has developed into a famous manufacturer which integratesn the research and the development, design, manufacture and sell water well screens/johnson screens, oil well screens and the sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.
