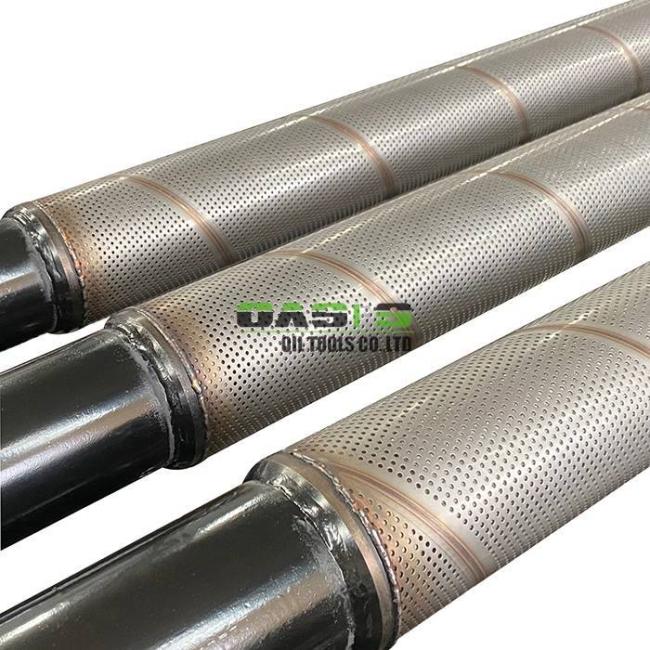

OASIS Premium Metal Mesh Sand Screen

Overview
The OASIS Premium Metal Mesh Sand Screen represents the pinnacle of downhole sand control technology. Engineered for maximum reliability and longevity, this screen utilizes a robust, multi-layered design featuring an external protective shroud and internal stainless steel mesh filtration layers. It is the definitive solution for controlling sand production in the most challenging well conditions.

Specifications

Applications

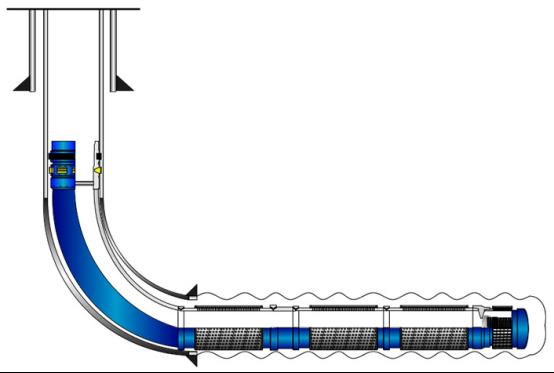

Ideal for a wide range of oil and gas operations, our sand screen is perfectly suited for:

• Unconsolidated sandstone formations

• Thermal recovery of heavy oil (SAGD, CSS)

• Gas storage wells

• Any application requiring efficient and reliable sand management

Key Advantages

• Superior Sand Control Reliability: Achieves effective sand control through a dual mechanism of casing and bridging protection, ensuring clean production flow.

• Anti-Plugging Design: Engineered to prevent plugging. While larger sands are blocked at the slot, smaller sands form a stable bridge under pressure, keeping the primary filtration slots open for the long term.

• Exceptional Open Flow Capacity: Features a high-density, laterally punched slot design that provides a significantly larger effective open area compared to conventional slotted liners (L1 ≈ 2.7 x L2).

• Robust & Cost-Effective: An all-in-one structure with high integral strength reduces welding and eliminates the need for expensive vacuum sintering, lowering overall costs without compromising performance.

• Optimized for Performance: Features a smaller outer diameter than equivalent casing collars for excellent Run-In-Hole (RIH) performance and high production efficiency.

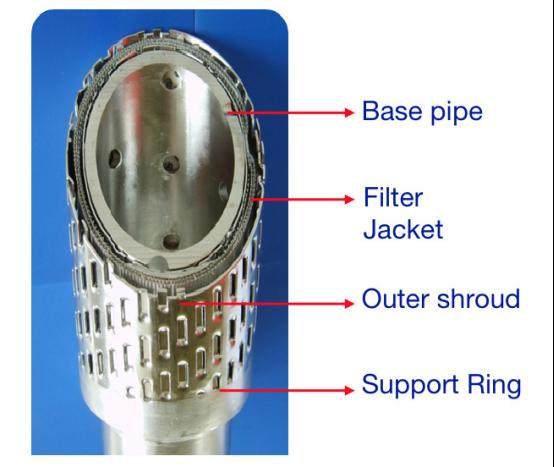

Product Features

• Double-Precision Sand Control Sleeve: Precision-engineered for accurate and consistent filtration.

• Bridge-Type External Shroud: The protective outer sleeve features bridge-type side flow ports for enhanced debris management and fluid entry.

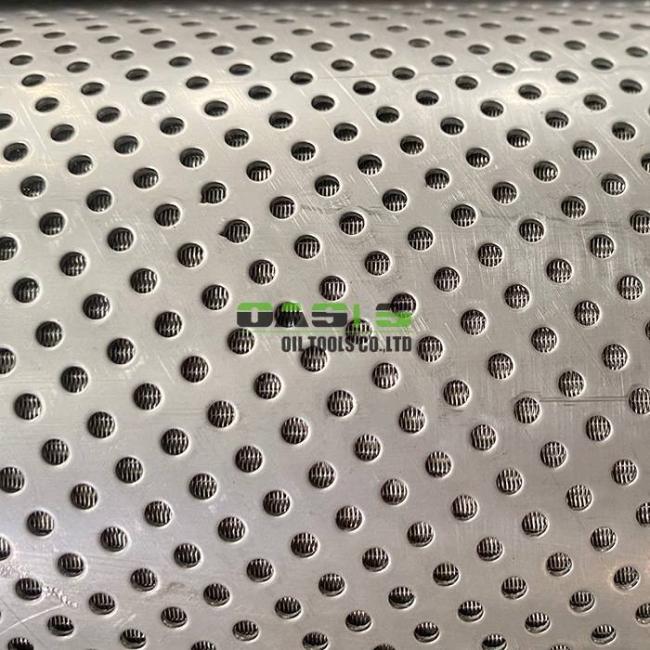

• Multiple Composite Filtration Layers: A multi-layered, stainless steel mesh system provides superior filtration and durability.

• Integrated Filtering Sleeve Ring: A one-piece construction that enhances structural integrity.

• Customizable Filtration Structure: The filtering structure can be tailored to meet specific client wellbore and production requirements.

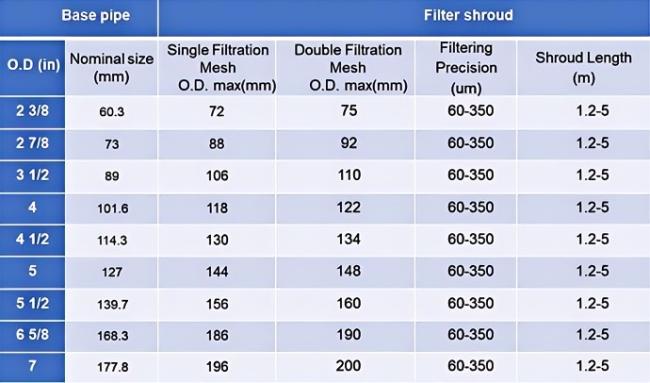

Technical Specifications & Certifications
OASIS products are manufactured to the highest industry standards, ensuring quality and safety.

• Standards Compliant: API 5CT, API Q1, API 11D1

• Management Systems Certified: ISO 9001:2008 (Quality), ISO 14001:2004 (Environmental), OHSAS 18001:2007 (Health & Safety)

• Industry Leadership: Our expertise contributes to industry standards, including being a drafter for the Chinese national standard SY/T 6916—2012 for sand screens.

More Details

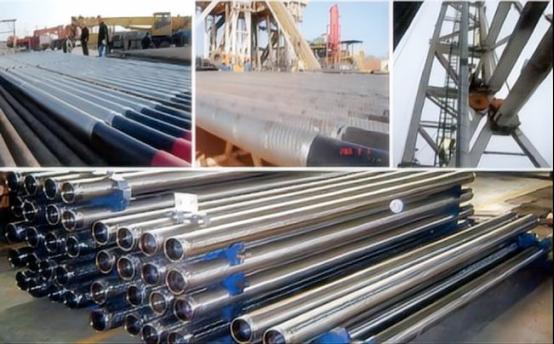

Our Manufacturing Commitment
The OASIS Completion Manufacturing Center in Tianjin, China, serves as our global headquarters for R&D and production. This state-of-the-art facility spans over 101,700 square meters and is equipped with:

• A dedicated and experienced R&D team

• Professional engineering and design teams

• A first-class technology laboratory

• High-Pressure/High-Temperature (HPHT) testing facilities

• Advanced CNC machining capabilities

• A rigorous Quality Control (QC) system

This integrated center allows OASIS to deliver high-performance, reliable sand control products to our clients worldwide.

Related Products

Why Choose OASIS?
With OASIS, you get more than just a product; you get a partnership. Our commitment to innovation, quality, and customer-specific solutions makes us the trusted choice for your filtration needs in water and oil applications. Contact us today to find the perfect sand control solution for your project.
