Multilayer Metal-Mesh Sand Control Screen with Perforated Base Pipe and Outer Shroud for Oil Gas Wells
Product Description
Engineered for Reliability and High Performance in Harsh Environments
Premium sand control well screens are specifically engineered to provide outstanding mechanical strength and precise filtration control in challenging oil and gas well operations. Built with a multi-layer design, Sand control well screens comprise four concentric layers: starting from the innermost component, these are the perforated base pipe, the intermediate support and drainage layer, the primary filter media (metal mesh or metal wool), and the outermost protective jacket made of stainless steel.these screens deliver superior sand retention, uniform flow distribution, and long-lasting durability under extreme downhole conditions.
Key Features
- Robust Multi-Layer Construction: Sand control well screens combine drainage and filtration layers to prevent clogging and ensure stable performance.
- Customizable Filtration: These screens are available in Dutch weave or square weave patterns with pore sizes ranging from 60 to 250 microns.
- Corrosion-Resistant Materials: Sand control well screens utilize stainless steel (304L, 316L) and API-grade carbon steel options for enhanced service life.
- Optimized Flow Design: The screens prevent channeling and maintain consistent fluid dynamics for improved well productivity.
Product Specifications
|
Base Pipe OD (in) |
Coupling OD (in) |
Weight (lb/ft) |
ID (in) |
Perforation Dia (in) |
Flow Area (in²/ft) |
Screen Weight (lb/ft) |
Screen OD (in) |
| 2.375 | 2.875 | 4.60 | 1.995 | 0.375 | 5.299 | 12.40 | 3.260 |
| 2.875 | 3.500 | 6.40 | 2.441 | 0.375 | 5.299 | 15.60 | 3.76 |
| 3.500 | 4.250 | 9.20 | 2.867 | 0.375 | 6.624 | 20.80 | 4.380 |
| 4.000 | 4.750 | 11.60 | 3.428 | 0.375 | 7.949 | 24.40 | 4.880 |
| 4.500 | 5.000 | 13.50 | 3.920 | 0.375 | 9.274 | 29.50 | 5.380 |
| 5.000 | 5.563 | 15.00 | 4.408 | 0.375 | 9.274 | 30.00 | 5.880 |
| 5.500 | 6.050 | 17.00 | 4.892 | 0.375 | 10.598 | 33.50 | 6.380 |
| 6.625 | 7.390 | 24.00 | 5.921 | 0.375 | 11.923 | 44.00 | 7.510 |
| 7.000 | 7.657 | 23.00 | 6.366 | 0.375 | 13.248 | 45.00 | 7.880 |
Technical Highlights
- Base Pipe: Sand control well screens feature API-grade carbon steel or stainless steel (ASTM/ASME compliant)
- Filtration Media: These screens incorporate 304/316L stainless steel, Dutch or Square weave
- Outer Shroud: The screens feature laser-cut slots or precision perforations per API/ISO standards
- Customization: Sand control well screens offer tailored dimensions, layer configurations, and materials to meet specific project needs

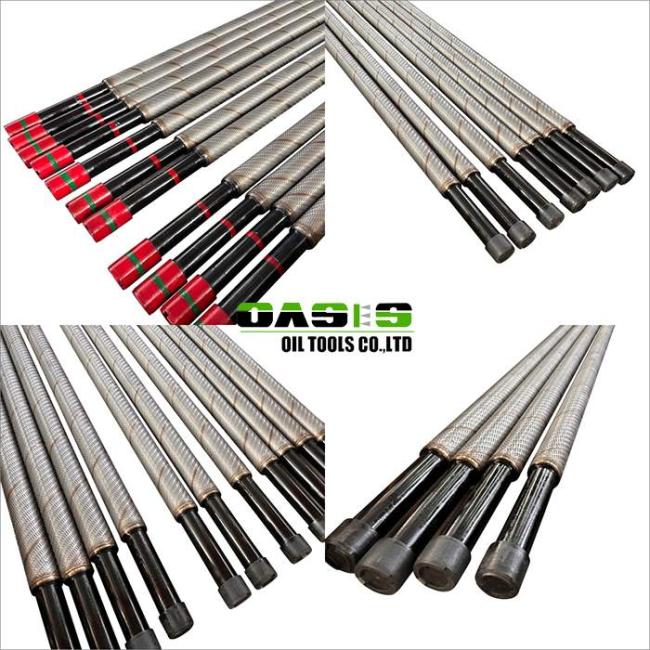

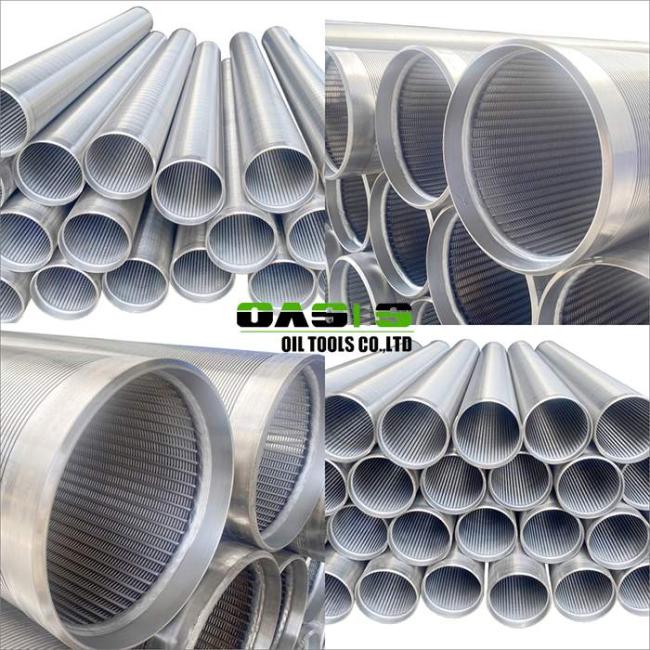

More Details

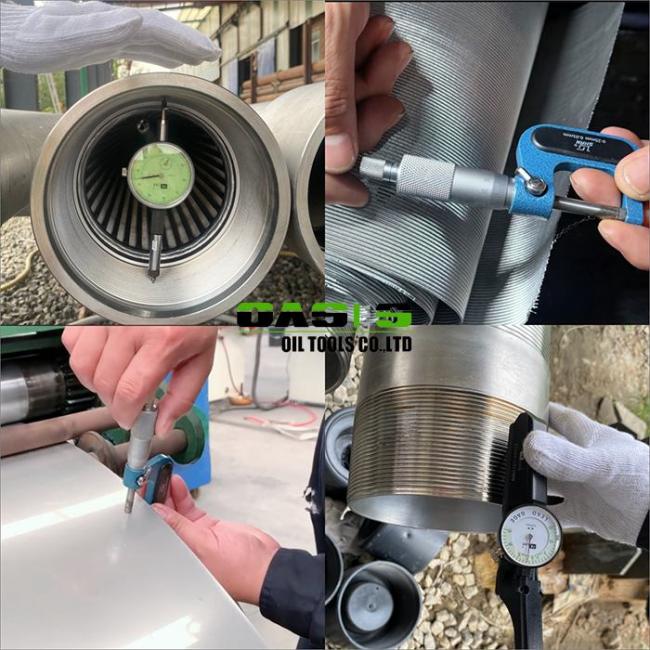

Inspection
Related Products
Why Choose OASIS Screens?
With over 12 years of expertise in sand control solutions, our sand control well screens offer:
- Advanced R&D and high-quality manufacturing
- Customized designs for varying well conditions
- Strict quality control and final inspection before shipment
- Global shipping and flexible payment options (T/T, L/C)
For more information or to request a custom solution, contact our technical team today.
